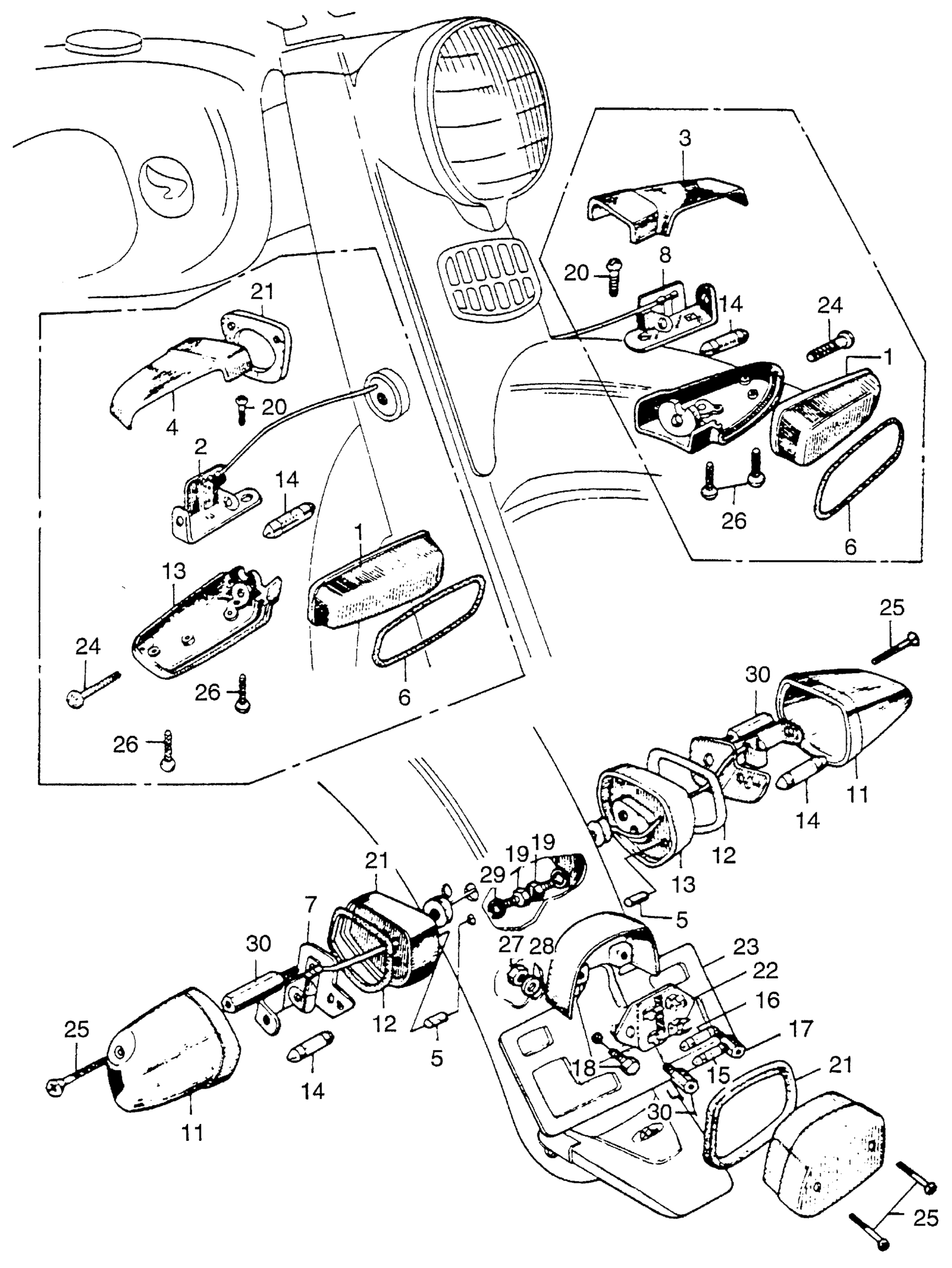

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 TURN SIGNALS (1) Diagram

#

Description
Price

1

LENS, FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-011-000.

33405-011-610

Unavailable

1

LENS, FR. TURN SIGNAL (NOT AVAILABLE)

33405-011-610

Unavailable

2

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE)

33710-011-000

Unavailable

3

CASE, L. FR. TURN SIGNAL (UPPER) (NOT AVAILABLE) | Use from Frame SN 212492 to 493417

33411-011-305

Unavailable

3

CASE, L. FR. TURN SIGNAL (UPPER) (NOT AVAILABLE) | Use from Frame SN 212492

33471-011-305

Unavailable

4

CASE, R. FR. TURN SIGNAL (LOWER) (NOT AVAILABLE)

33412-011-010

Unavailable

4

CASE, L. FR. TURN SIGNAL (LOWER) (NOT AVAILABLE)

33472-011-010

Unavailable

5

PIN, FR. TURN SIGNAL BASE KNOCK (NOT AVAILABLE)

33414-011-000

Unavailable

6

GASKET, FR. TURN SIGNAL LENS (NOT AVAILABLE)

33443-011-000

Unavailable

7

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33659-011-005

Unavailable

8

SOCKET, L. FR. TURN SIGNAL (NOT AVAILABLE)

33453-011-010

Unavailable

11

LENS, RR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 316043 to 493417

33602-011-610

Unavailable

12

GASKET, RR. TURN SIGNAL LENS (NOT AVAILABLE) | Use from Frame SN 316043 to 493417

33604-011-000

Unavailable

13

BASE, R. RR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 114829

33605-011-010

Unavailable

14

BULB, FLASHER (NOT AVAILABLE)

34905-201-000

Unavailable

15

BULB, TAILLIGHT (6V2W) (STANLEY) (NOT AVAILABLE) | Use from Frame SN 1000001 to 493417

34906-005-000

Unavailable

16

BULB, STOP LIGHT (6V5W) (STANLEY) (NOT AVAILABLE) | Use from Frame SN 1000001 to 493417

34907-005-000

Unavailable

17

BOLT, TAILLIGHT SETTING (NOT AVAILABLE)

90146-011-000

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

19

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

20

SCREW, PAN (4X8) This part replaces 93500-04008.

93500-04008-0A

$1.49

20

SCREW, PAN (4X8)

93500-04008-0A

$1.49

20

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

21

GASKET, FR. TURN SIGNAL (NOT AVAILABLE) | Use from Frame SN 212492

33443-011-010

Unavailable

21

BULB, TAILLIGHT (6V2W) (STANLEY) (NOT AVAILABLE)

34906-005-000

Unavailable

22

BULB, STOP LIGHT (6V5W) (STANLEY) (NOT AVAILABLE)

34907-005-000

Unavailable

23

BRACKET, NUMBER PLATE (NA USE ALT:84701-011-305D) | Use from Frame SN 191264 to 493417

84701-011-305Z

Unavailable

24

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

25

SCREW, OVAL (3X20) (NOT AVAILABLE)

93700-03020-02

Unavailable

26

SCREW, OVAL (4X14) (NOT AVAILABLE)

93700-04014

Unavailable

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

BOLT, FR. TURN SIGNAL SOCKET SETTING (NOT AVAILABLE)

90148-011-000

Unavailable
