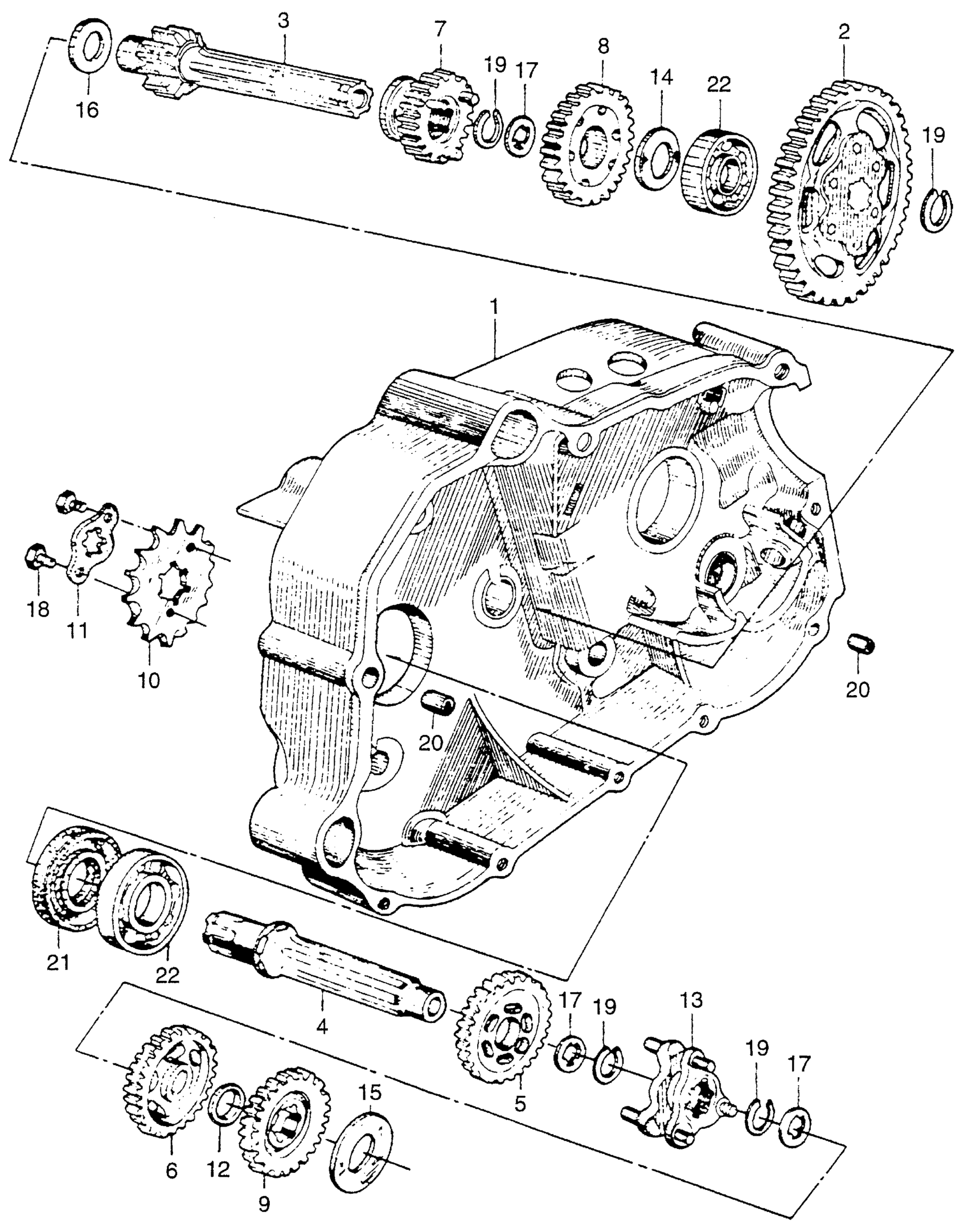

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 TRANSMISSION + LEFT CRANKCASE (1) Diagram

#

Description
Price

1

CRANKCASE, L.

11200-011-000

Unavailable

1

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 200541 to 212078

11200-011-020

Unavailable

1

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 212079

11200-011-030

Unavailable

2

GEAR, PRIMARY DRIVEN (NOT AVAILABLE)

23110-001-030

Unavailable

3

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-013-000

Unavailable

4

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN 200540

23221-001-050

$241.62

4

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 200541

23221-001-060

Unavailable

5

GEAR, LOW TRANSMISSION

23421-013-000

Unavailable

6

GEAR, SECOND TRANSMISSION (NOT AVAILABLE)

23431-013-000

Unavailable

7

GEAR, SHIFTING TRANSMISSION (NOT AVAILABLE)

23441-013-000

Unavailable

8

GEAR, MAINSHAFT TOP (NOT AVAILABLE)

23451-013-000

Unavailable

9

GEAR, COUNTERSHAFT TOP

23461-013-000

Unavailable

10

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

10

SPROCKET, DRIVE (14T) This part replaces 23801-001-010.

23800-040-010

$17.03

11

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE)

23811-001-000

Unavailable

12

COLLAR, TRANSMISSION GEAR (BND) (NOT AVAILABLE)

23911-001-000

Unavailable

13

SHIFTER, TRANSMISSION GEAR

24201-013-000

Unavailable

14

WASHER, MAINSHAFT TOP GEAR (NOT AVAILABLE)

90411-001-000

Unavailable

14

WASHER, MAINSHAFT TOP GEAR (NOT AVAILABLE)

90412-001-010

Unavailable

15

WASHER, THRUST (14MM) | Use from Engine SN 218192

90451-001-000

$3.67

16

WASHER, SPLINE (17MM) This part replaces 90461-001-000.

90461-035-000

$2.57

16

WASHER, SPLINE (17MM)

90461-035-000

$2.57

17

WASHER (12MM) (NOT AVAILABLE) | Use from Engine SN 200541

90482-001-000

Unavailable

18

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

18

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

19

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

20

PIN A, DOWEL (10X14) | Use from Engine SN 363636 This part replaces 90703-200-000.

94301-10140

$2.28

20

PIN A, DOWEL (10X14) | Use from Engine SN 363636

94301-10140

$2.28

21

OIL SEAL (17X34X7)

91204-001-000

Unavailable

22

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

22

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
