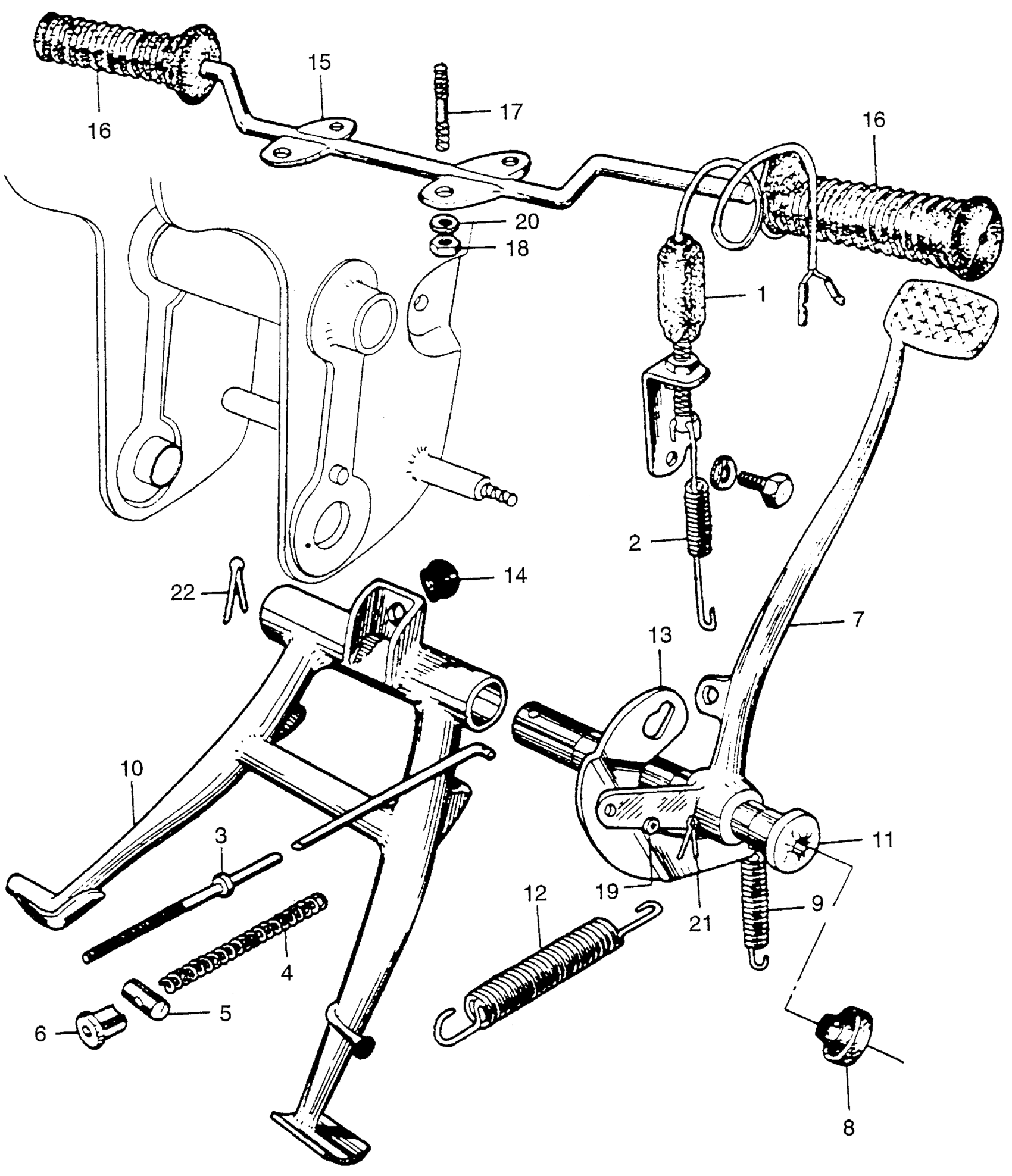

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 STAND Diagram

#

Description
Price

1

SWITCH ASSY., STOP (NOT AVAILABLE)

35350-011-000

Unavailable

2

SPRING, STOP SWITCH

35357-011-000

$2.46

3

ROD, RR. BRAKE (NOT AVAILABLE)

43451-011-000

Unavailable

4

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

4

SPRING A, BRAKE ROD

95014-73100

$1.49

4

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

5

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

5

JOINT A, BRAKE ARM

95015-31001

$1.53

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

6

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

6

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

7

PEDAL, BRAKE This part replaces 46500-011-010.

46500-035-670

Unavailable

8

CAP, RR. BRAKE PIVOT PIPE (NOT AVAILABLE)

46513-011-000

Unavailable

9

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-011-010

Unavailable

10

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-011-000B

Unavailable

11

PIPE, RR. BRAKE PIVOT This part replaces 50512-011-000.

50512-087-820

Unavailable

11

PIPE, RR. BRAKE PIVOT

50512-087-820

Unavailable

12

SPRING A, MAIN STAND This part replaces 50522-001-000.

95014-71102

$2.84

12

SPRING A, MAIN STAND

95014-71102

$2.84

13

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-011-000

Unavailable

14

RUBBER B, STAND STOPPER This part replaces 50524-011-000.

95011-62000

$1.49

14

RUBBER B, STAND STOPPER

95011-62000

$1.49

15

BAR, STEP (NOT AVAILABLE) This part replaces 50610-011-000.

50610-011-810

Unavailable

15

BAR, STEP (NOT AVAILABLE)

50610-011-810

Unavailable

16

RUBBER, STEP This part replaces 50661-011-000.

95011-21000

$8.33

16

RUBBER, STEP This part replaces 50661-028-000.

95011-21000

$8.33

16

RUBBER, STEP This part replaces 50661-035-000.

95011-21000

$8.33

16

RUBBER, STEP This part replaces 50661-051-000.

95011-21000

$8.33

16

RUBBER, STEP

95011-21000

$8.33

17

BOLT, HEX. (8X22) This part replaces 90061-030-000.

92101-08022-0A

Unavailable

17

BOLT, HEX. (8X22) This part replaces 92000-08022.

92101-08022-0A

Unavailable

17

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

17

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

18

NUT, HEX. (8MM) | Use up to Frame SN 217392 This part replaces 94001-08000.

94030-08000

$1.49

18

NUT, HEX. (8MM) | Use up to Frame SN 217392

94030-08000

$1.49

18

NUT, HEX. (8MM) | Use up to Frame SN 217392 This part replaces 94030-08200.

94030-08000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

21

PIN, COTTER (1.6X25)

94201-16250

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

22

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

22

PIN, COTTER (3.0X45)

94201-30450

$1.49
