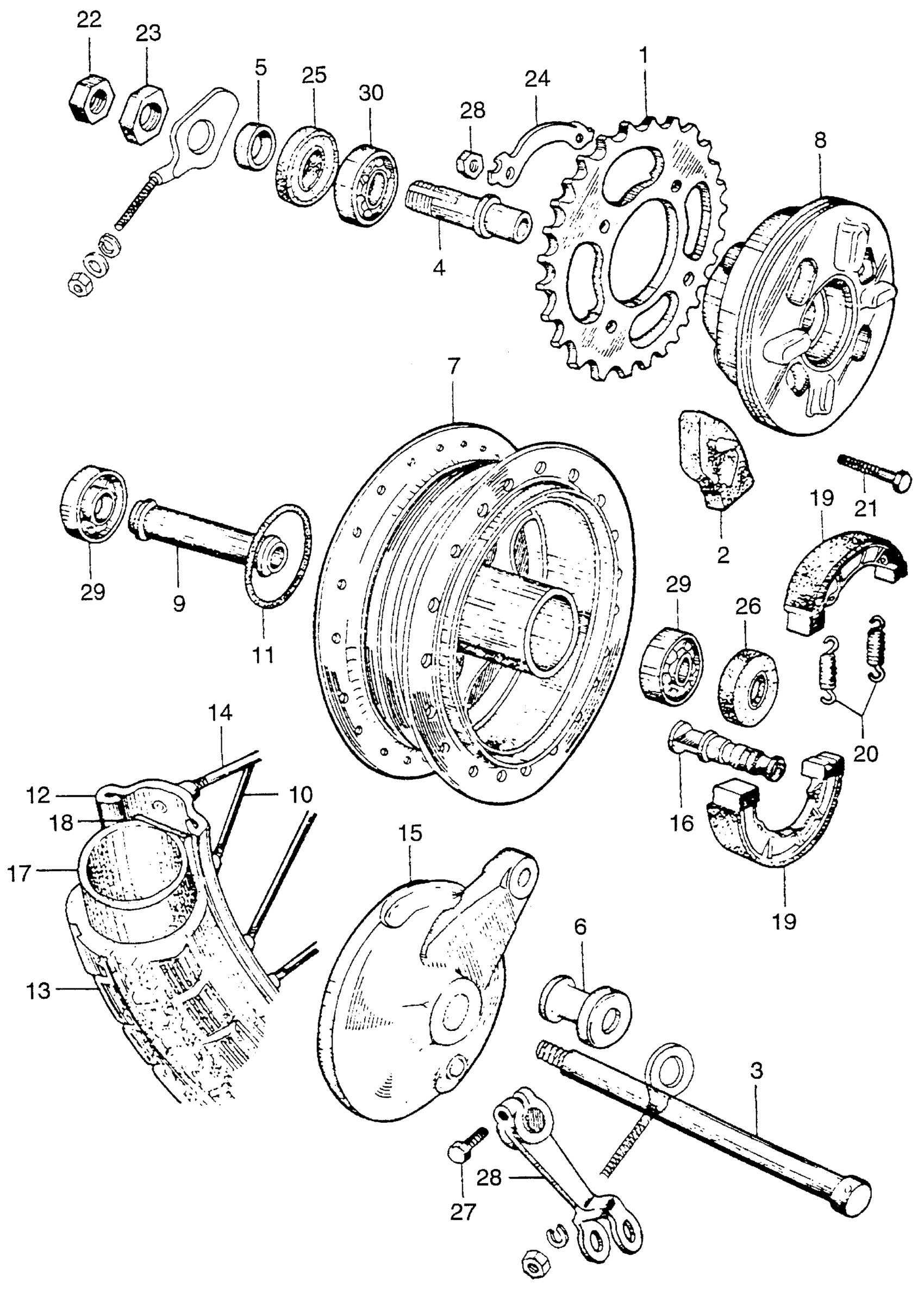

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (40T)

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-001-030.

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-000.

41201-GBJ-000

Unavailable

1

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-720.

41201-GBJ-000

Unavailable

2

DAMPER, RR. WHEEL This part replaces 41241-001-040.

41241-001-050

$7.31

2

DAMPER, RR. WHEEL

41241-001-050

$7.31

3

AXLE, RR. WHEEL This part replaces 42301-001-000.

42301-121-760

Unavailable

3

AXLE, RR. WHEEL This part replaces 42301-041-020.

42301-121-760

Unavailable

3

AXLE, RR. WHEEL This part replaces 42301-041-030.

42301-121-760

Unavailable

3

AXLE, RR. WHEEL

42301-121-760

Unavailable

4

SLEEVE, RR. WHEEL AXLE (NOT AVAILABLE)

42303-001-020

Unavailable

5

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE)

42304-001-010

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-001-000

Unavailable

7

HUB, RR. WHEEL This part replaces 42601-001-060.

42601-001-070

Unavailable

7

HUB, RR. WHEEL

42601-001-070

Unavailable

8

FLANGE, FINAL DRIVE (NOT AVAILABLE)

42610-001-050

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-001-010

Unavailable

10

SPOKE B, RR.

42638-001-020

$4.66

11

O-RING (40.5X3) (NIPPON DUST KEEPER) This part replaces 42653-001-000.

42653-001-004

$2.39

11

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

12

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

12

RIM, WHEEL

42701-001-073

Unavailable

13

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE) This part replaces 42711-001-820.

42711-041-000

Unavailable

13

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE) | Use from Frame SN 414083 to 493417 This part replaces 42711-001-820.

42711-041-000

Unavailable

13

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE) | Use from Frame SN 414083 to 493417

42711-041-000

Unavailable

14

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

14

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

15

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-001-050

Unavailable

16

CAM, RR. BRAKE (NOT AVAILABLE)

43141-001-000

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-001-000.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

17

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

18

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

18

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

18

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

19

SHOE, BRAKE (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

20

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

20

SPRING, BRAKE SHOE

45133-028-000

$2.03

21

BOLT, SPROCKET

90128-001-030

Unavailable

22

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

23

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

24

WASHER, TOP BRIDGE TONGUED

90522-001-000

Unavailable

24

WASHER, TONGUED (8MM) (SOURCE: VINTAGE PARTS INC.)

94108-11000

Unavailable

25

OIL SEAL (23X35X7) (NOT AVAILABLE)

91253-001-000

Unavailable

26

OIL SEAL (18X37X7) (NOT AVAILABLE)

91254-001-000

Unavailable

27

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

27

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

28

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

28

NUT, HEX. (8MM)

94030-08000

$1.49

28

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

29

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

29

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

29

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

30

BEARING, RADIAL BALL (6303U) This part replaces 96120-63030.

96140-63030-10

$14.48

30

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030.

96140-63030-10

$14.48

30

BEARING, RADIAL BALL (6303U) This part replaces 96140-63030-00.

96140-63030-10

$14.48

30

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
