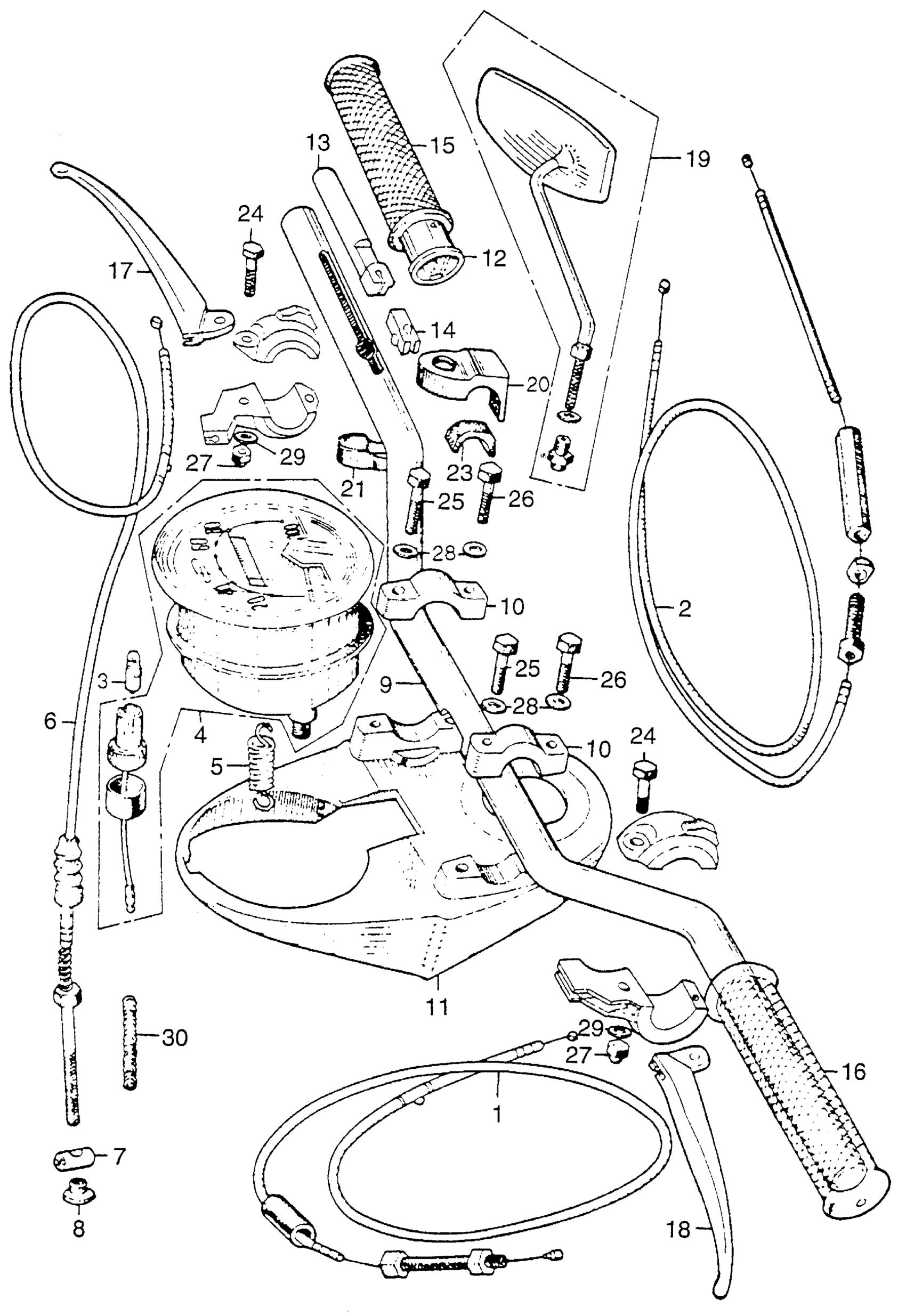

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 HANDLEBAR Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-011-000

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE) This part replaces 22870-011-000.

22870-017-000

Unavailable

2

CABLE, CLUTCH (NOT AVAILABLE)

22870-017-000

Unavailable

3

BULB, SPEEDOMETER (6V1.5W) (STANLEY)

34908-001-000

$5.57

4

SPEEDOMETER ASSY. (MILE) (NOT AVAILABLE)

37200-011-810

Unavailable

5

SPRING, SPEEDOMETER (NOT AVAILABLE)

37244-011-010

Unavailable

6

CABLE, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 200541 This part replaces 45450-011-000.

45450-011-010

Unavailable

6

CABLE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 200541

45450-011-010

Unavailable

7

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

7

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

7

JOINT A, BRAKE ARM

95015-31001

$1.53

8

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

8

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

8

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

9

HANDLEBAR (NOT AVAILABLE)

53100-011-000

Unavailable

10

HOLDER, HANDLEBAR (UPPER)

53131-011-000

Unavailable

10

HOLDER, HANDLEBAR (UPPER)

53131-028-000

$6.93

10

HOLDER A1, HANDLEBAR (UPPER) This part replaces 95014-21100.

95014-21101

$6.31

10

HOLDER A1, HANDLEBAR (UPPER)

95014-21101

$6.31

11

HOLDER, HANDLEBAR (LOWER)

53132-011-000

$101.25

12

PIPE, THROTTLE GRIP

53141-011-000

Unavailable

13

HINGE, THROTTLE GRIP (NOT AVAILABLE)

53161-001-000

$5.49

14

HOLDER, THROTTLE CABLE (NOT AVAILABLE)

53162-011-000

Unavailable

15

RUBBER, HANDLE GRIP This part replaces 53165-011-000.

53010-011-000

Unavailable

16

RUBBER, HANDLE GRIP This part replaces 53166-011-000.

53010-011-000

Unavailable

17

LEVER, R. HANDLEBAR (NOT AVAILABLE) This part replaces 53175-011-000.

53175-053-670

Unavailable

17

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-053-670

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53178-011-000.

53178-053-670

Unavailable

18

LEVER, L. HANDLEBAR

53178-053-670

Unavailable

19

MIRROR, R. This part replaces 88110-001-000.

88110-001-305

Unavailable

19

MIRROR, R.

88110-001-305

Unavailable

19

MIRROR, R. This part replaces 88110-011-000.

88110-001-305

Unavailable

19

MIRROR, R. This part replaces 88120-001-810.

88110-001-305

Unavailable

19

MIRROR, R. This part replaces 88120-011-810.

88110-001-305

Unavailable

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

BRACKET, MIRROR (UPPER) (NOT AVAILABLE)

88131-011-020

Unavailable

21

BRACKET, MIRROR (LOWER) (NOT AVAILABLE)

88132-011-020

Unavailable

23

GASKET, MIRROR (NOT AVAILABLE)

88191-011-000

Unavailable

24

SCREW, HANDLE LEVER PIVOT (NOT AVAILABLE)

90114-011-000

Unavailable

25

BOLT, HEX. (6X35) (NOT AVAILABLE)

92000-06035-02

Unavailable

26

BOLT, HEX. (6X45) This part replaces 92000-06045-02.

92201-06045-0B

Unavailable

26

BOLT, HEX. (6X45) This part replaces 92200-06045-0B.

92201-06045-0B

Unavailable

26

BOLT, HEX. (6X45)

92201-06045-0B

Unavailable

27

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

27

NUT, CAP (6MM)

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

27

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06200

$1.49

30

SPRING, FR. BRAKE ARM

45437-001-000

$3.50
