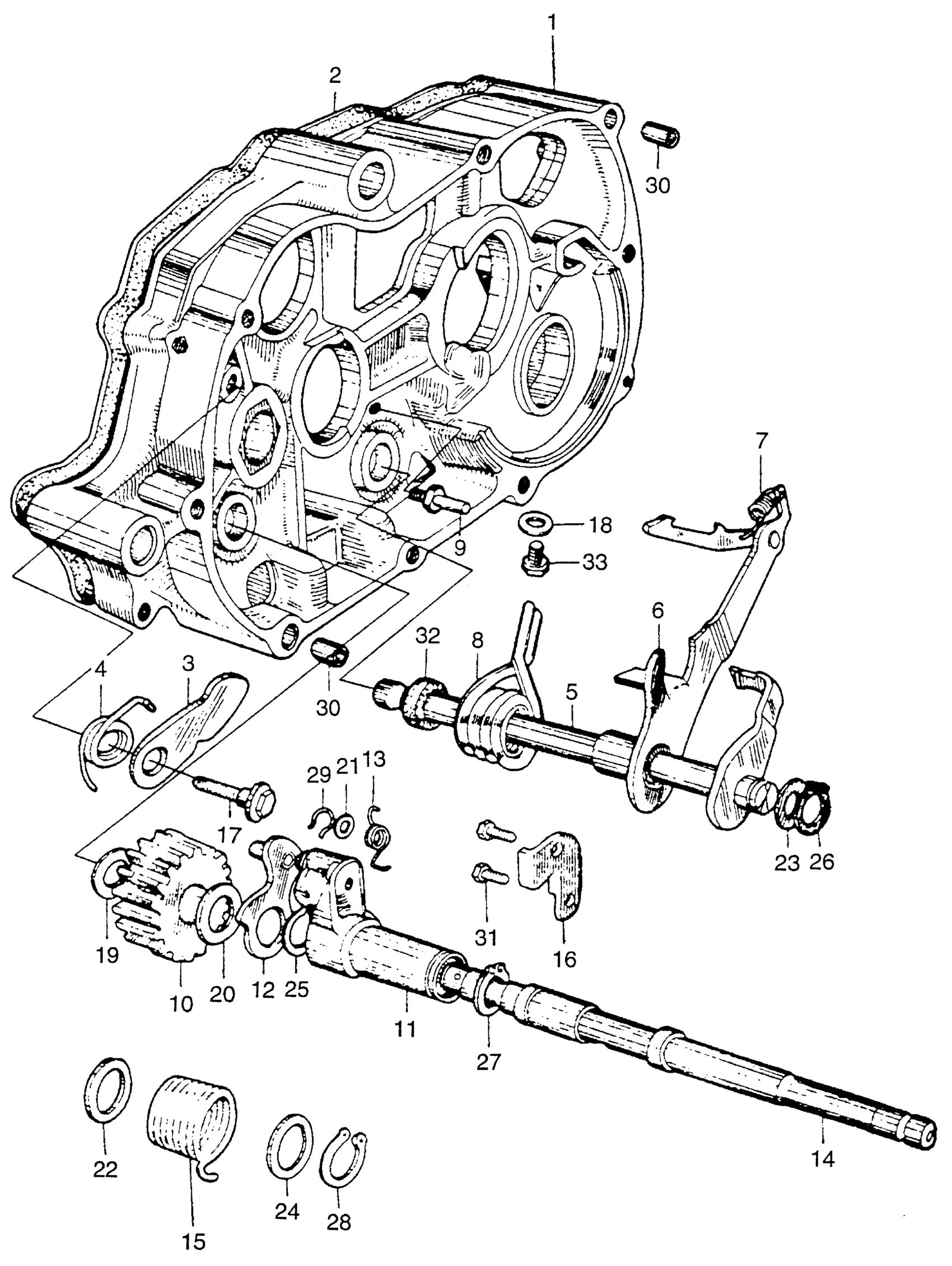

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 GEARSHIFT Diagram

#

Description
Price

1

FORK, GEARSHIFT

24211-001-020

Unavailable

1

FORK, GEARSHIFT | Use from Engine SN 218192 to 437789

24211-011-000

Unavailable

1

FORK, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 437790

24211-011-010

Unavailable

2

PIN, SHIFT FORK GUIDE (NOT AVAILABLE)

24261-001-000

Unavailable

3

DRUM, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 218102

24301-011-030

Unavailable

3

DRUM, GEARSHIFT (NOT AVAILABLE) | Use from Engine SN 138992 to 218391

24301-013-000

Unavailable

4

PIN A, GEARSHIFT DRUM (NOT AVAILABLE) | Use up to Engine SN 218191

24421-001-010

Unavailable

5

PIN, SHIFT DRUM (NOT AVAILABLE) | Use from Engine SN 218192

24421-011-000

Unavailable

5

PIN B, GEARSHIFT DRUM (NOT AVAILABLE) | Use up to Engine SN 218391

24422-001-000

Unavailable

6

PLATE, GEARSHIFT DRUM SIDE (NOT AVAILABLE) | Use from Engine SN 166000

24425-001-010

Unavailable

6

PLATE, DRUM STOPPER (NOT AVAILABLE) | Use from Engine SN 218192

24425-011-000

Unavailable

7

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32981-001-000

Unavailable

8

CONTACT ASSY., NEUTRAL SWITCH | Use from Engine SN 422449

35750-001-020

$9.16

9

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE) | Use from Engine SN 105061 to 138991

35753-001-060

Unavailable

9

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE) | Use from Engine SN 138992 to 218191

35753-011-000

Unavailable

9

ROTOR, NEUTRAL SWITCH | Use from Engine SN 218192

35753-011-010

Unavailable

9

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE) | Use from Engine SN 138992 to 218191 This part replaces 35753-013-000.

35753-011-000

Unavailable

10

PLATE, CONTACT FIXING

35755-001-020

Unavailable

11

O-RING (7X1.6)

37551-001-000

Unavailable

12

WASHER, FORK PIN (NOT AVAILABLE)

90416-001-000

Unavailable

13

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

90417-001-000

Unavailable

14

PLUG, RUBBER (19MM) (NOT AVAILABLE)

90801-001-000

Unavailable

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

15

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

15

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

16

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

16

SCREW, PAN (6X12)

93500-06012-0A

$1.49

16

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49
