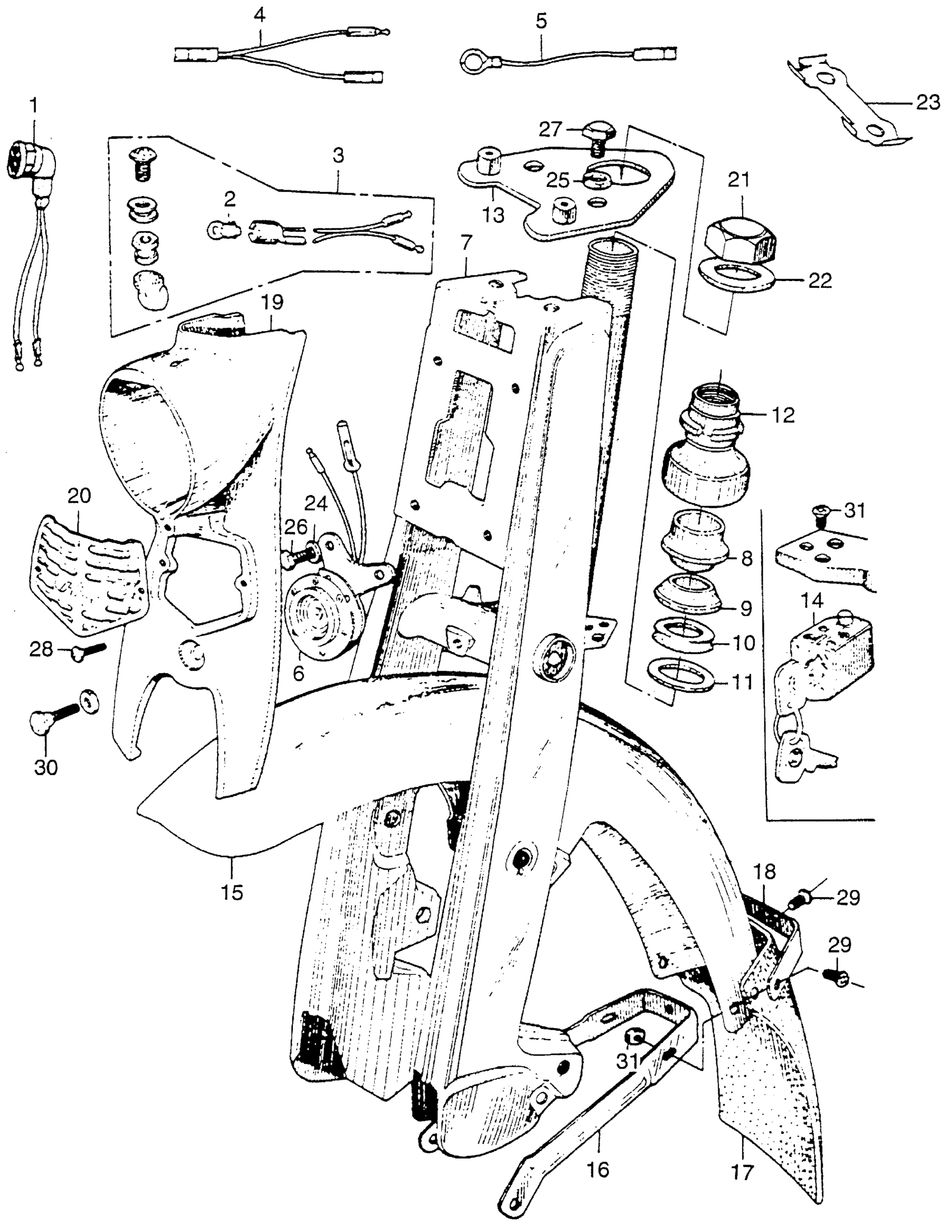

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

LAMP ASSY., TURN SIGNAL PILOT (NOT AVAILABLE)

33400-011-000

Unavailable

2

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

3

LAMP ASSY., PILOT RED LENS (NOT AVAILABLE)

37700-001-010

Unavailable

3

LAMP ASSY., PILOT GREEN LENS (NOT AVAILABLE) | Use up to Frame SN 493417

37700-005-000

Unavailable

4

SUB-WIRE A, BEAM PILOT (NOT AVAILABLE) | Use from Frame SN 100001 to 380368

37705-005-305

Unavailable

5

SUB-WIRE B, BEAM PILOT (NOT AVAILABLE) | Use from Frame SN 100001 to 380368

37706-005-305

Unavailable

6

HORN ASSY. (NOT AVAILABLE)

38100-001-040

Unavailable

7

FORK, FR. (NOT AVAILABLE)

51100-011-010Z

Unavailable

8

RACE, STEERING TOP CONE (NOT AVAILABLE)

53211-001-305

Unavailable

9

RACE, STEERING CONE (LOWER) (NOT AVAILABLE)

53212-001-315

Unavailable

10

DUST SEAL, STEERING HEAD

53214-001-000

Unavailable

11

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

12

THREAD, STEERING HEAD TOP

53220-011-000

Unavailable

13

PLATE, FORK TOP BRIDGE (NOT AVAILABLE)

53230-011-000Z

Unavailable

14

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

14

SWITCH, HANDLE LOCK (NOT AVAILABLE) This part replaces 53600-001-020.

35010-001-010

Unavailable

15

FENDER, FR. (NOT AVAILABLE) This part replaces 61100-011-000B.

61100-011-000D

Unavailable

15

FENDER, FR. *R2* (SCARLET) (NOT AVAILABLE)

61100-011-000C

Unavailable

15

FENDER, FR. (NOT AVAILABLE)

61100-011-000D

Unavailable

16

STAY, FR. FENDER (NOT AVAILABLE)

61101-011-000

Unavailable

17

SPLASH GUARD, FR. (NOT AVAILABLE)

61114-011-000

Unavailable

18

PLATE, FR. SPLASH GUARD (NOT AVAILABLE)

61115-011-000

Unavailable

19

CASE, HEADLIGHT *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

61301-011-000A

Unavailable

19

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-011-000B

Unavailable

19

CASE, HEADLIGHT *R2* (SCARLET) (NOT AVAILABLE)

61301-011-000C

Unavailable

19

CASE, HEADLIGHT (NOT AVAILABLE)

61301-011-000D

Unavailable

20

COVER, HORN (NOT AVAILABLE)

61311-011-000

Unavailable

21

NUT, STEERING STEM This part replaces 90304-011-000.

90304-159-000

$7.02

21

NUT, STEERING STEM

90304-159-000

$7.02

21

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02

22

WASHER, STEERING STEM This part replaces 90503-011-000.

90503-051-870

$2.84

22

WASHER, STEERING STEM

90503-051-870

$2.84

23

WASHER, TOP BRIDGE TONGUED (NOT AVAILABLE) | Use from Frame SN 381168 to 493417

90532-011-000

Unavailable

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, SPRING (6MM)

94111-06000

$1.49

26

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

26

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

26

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

27

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

27

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

27

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

27

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

28

SCREW, PAN (3X8) (NOT AVAILABLE)

93500-03008-02

Unavailable

29

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

29

SCREW, PAN (5X12)

93500-05012-0A

$1.49

30

SCREW, PAN (6X38) (NOT AVAILABLE)

93500-06038-02

Unavailable

31

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

31

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

32

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

32

NUT, HEX. (5MM)

94001-05000-0S

$2.74
