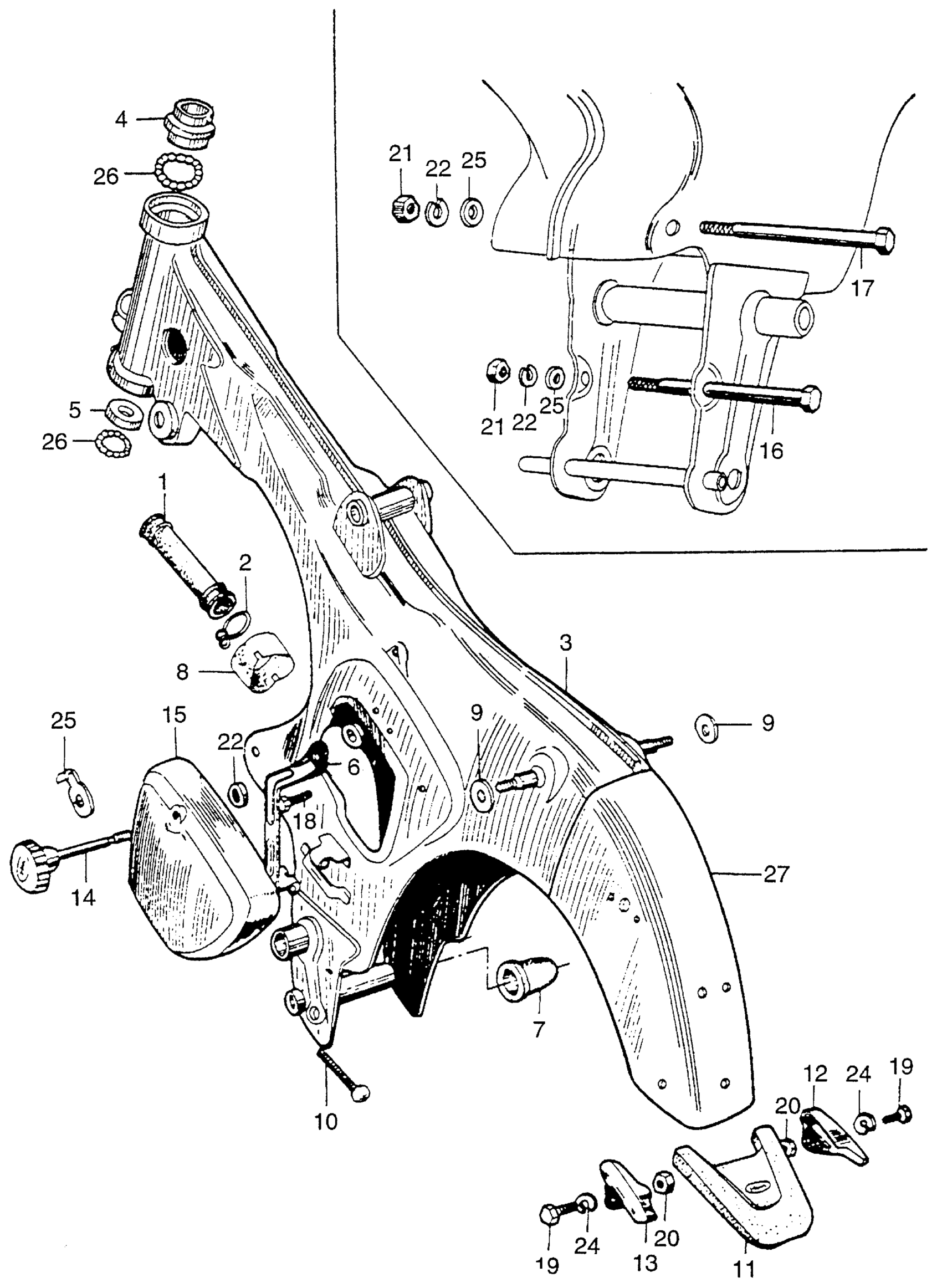

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 FRAME Diagram

#

Description
Price

1

TUBE, INLET PIPE CONNECTING (NOT AVAILABLE) | Use from Frame SN 104148 to 125766

16261-011-010

Unavailable

1

TUBE, INLET PIPE CONNECTING (NOT AVAILABLE) | Use from Frame SN 125767 to 493417

16261-011-020

Unavailable

2

BAND, CARBURETTOR CONNECTING (NOT AVAILABLE) | Use up to Frame SN 153663

16265-011-000

Unavailable

2

BAND, CARBURETOR CONNECTING (NOT AVAILABLE) | Use from Frame SN 153664

16265-011-010

Unavailable

3

FRAME | Use from Frame SN 210242 to 493417

50100-011-060Z

Unavailable

3

FRAME

50100-011-325Z

Unavailable

4

RACE, STEERING BALL This part replaces 50301-001-305.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-030-305.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

4

RACE, STEERING TOP BALL

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50301-918-000.

50301-041-010

$12.39

4

RACE, STEERING BALL This part replaces 50302-030-305.

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING TOP BALL

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$12.39

5

RACE, STEERING BALL This part replaces 50302-030-305.

50301-041-010

$12.39

6

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

50373-011-000B

Unavailable

7

CAP, MUFFLER SETTING (NOT AVAILABLE)

50322-011-000

Unavailable

8

COVER, CARBURETOR JOINT (NOT AVAILABLE) | Use from Frame SN 104148

50411-011-010

Unavailable

9

WASHER, RR. SUSPENSION BAR (NOT AVAILABLE) | Use from Frame SN 206176 to 493417

90553-011-010

Unavailable

10

SCREW, PAN (4X26) This part replaces 93500-04016.

93500-04016-0A

$1.49

10

SCREW, PAN (4X26)

93500-04016-0A

$1.49

11

SPLASH GUARD, RR. FENDER (NOT AVAILABLE) | Use up to Frame SN 437739

80121-011-000

Unavailable

11

SPLASH GUARD, RR. FENDER (NOT AVAILABLE) | Use from Frame SN 437790 to 493417

80121-011-010

Unavailable

12

STAY, R. SPLASH GUARD (NOT AVAILABLE) | Use up to Frame SN 437789

80122-011-000

Unavailable

12

STAY, R. SPLASH GUARD (NOT AVAILABLE) | Use from Frame SN 437790 to 493417

80122-011-010

Unavailable

13

STAY, L. SPLASH GUARD (NOT AVAILABLE) | Use up to Frame SN 437789

80123-011-000

Unavailable

13

STAY, L. SPLASH GUARD (NOT AVAILABLE) | Use from Frame SN 437790 to 493417

80123-011-010

Unavailable

14

LATCH, TOOL BOX (NOT AVAILABLE)

83550-011-000

Unavailable

15

BOX, BATTERY *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

83600-011-000A

Unavailable

15

BOX, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

83600-011-000B

Unavailable

15

BOX, BATTERY *R2* (SCARLET) (NOT AVAILABLE)

83600-011-000C

Unavailable

15

BOX, BATTERY (NOT AVAILABLE)

83600-011-000D

Unavailable

15

BOX, BATTERY *Y1* (IVORY YELLOW) (NOT AVAILABLE)

83600-011-000R

Unavailable

16

BOLT, RR. ENGINE (LOWER)

90116-001-010

$8.83

17

BOLT A, RR. ENGINE SUPPORT (NOT AVAILABLE)

90112-001-000

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

SCREW, PAN (5X8)

93500-05008-0B

$1.49

19

SCREW, PAN (5X8) This part replaces 93500-05008-02.

93500-05008-0B

$1.49

20

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

20

NUT, HEX. (5MM)

94001-05000-0S

$2.74

21

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

21

NUT, HEX. (8MM)

94030-08000

$1.49

21

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

22

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

22

NUT, HEX. (6MM)

94002-06000-0S

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

26

BALL, STEEL (#6) (3/16)

96211-06000

$1.49

27

FENDER, RR. (NOT AVAILABLE)

50206-011-812Z

Unavailable
