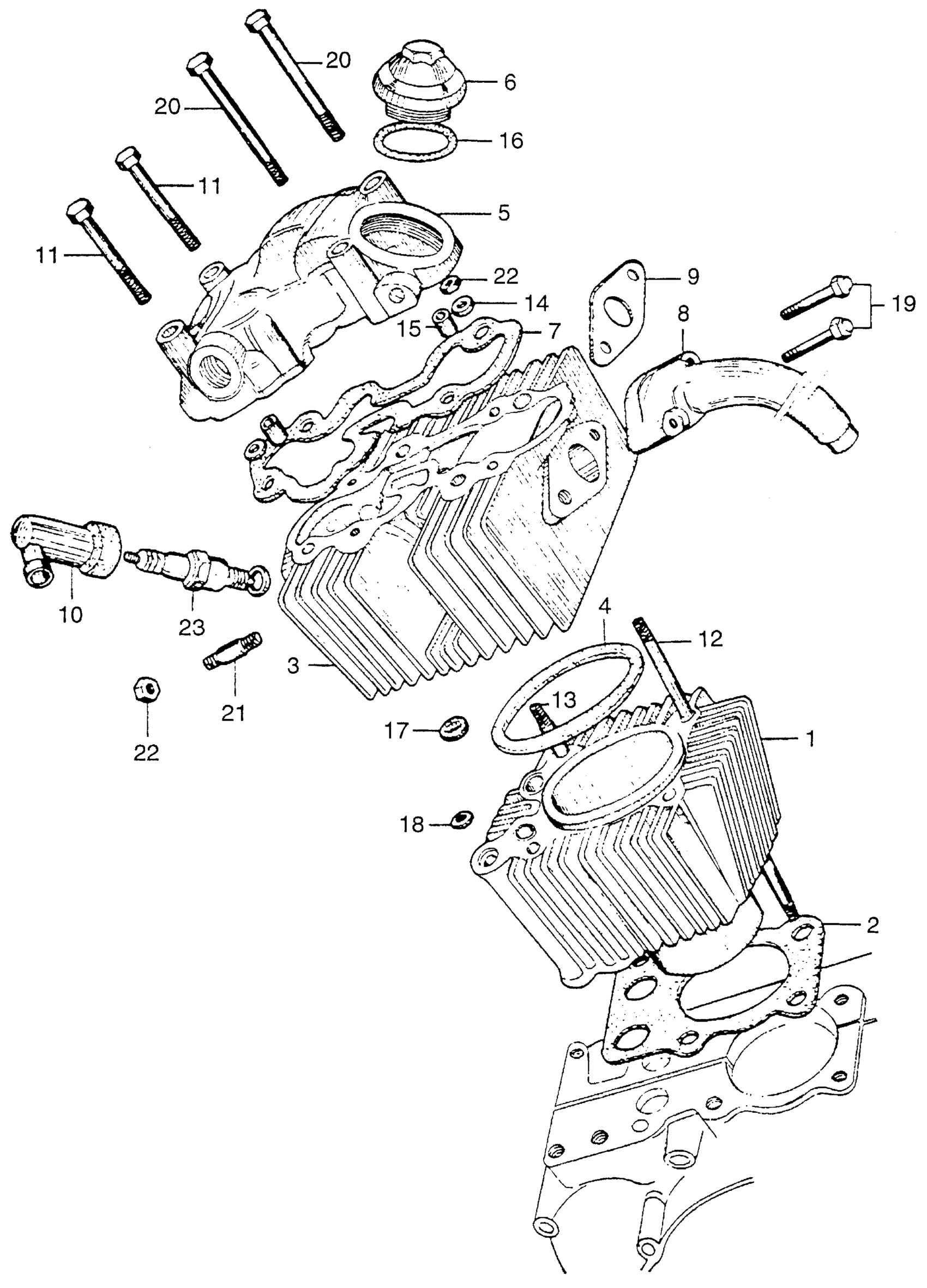

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 CYLINDER + CYLINDER HEAD + SPARK PLUG Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 122542 to 493417

12100-008-020

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 122542 to 187052 This part replaces 12101-001-080.

12100-008-020

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 122542 to 493417 This part replaces 12101-001-090.

12100-008-020

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 122542 to 493417 This part replaces 12101-005-000.

12100-008-020

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 122542 to 493417 This part replaces 12101-005-010.

12100-008-020

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN 122542 to 493417 This part replaces 12101-005-222.

12100-008-020

Unavailable

2

GASKET, CYLINDER This part replaces 12191-001-335.

12191-001-306

$9.40

3

CYLINDER HEAD (NOT AVAILABLE)

12201-011-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-001-010.

12251-002-000

Unavailable

4

GASKET, CYLINDER HEAD

12251-002-000

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 196157 to 493417

12301-001-110

Unavailable

6

CAP, TAPPET (NOT AVAILABLE)

12361-001-020

Unavailable

7

GASKET, CYL HD CVR This part replaces 12391-001-040.

12391-001-306

Unavailable

8

PIPE, INLET (NOT AVAILABLE) | Use from Engine SN 125765 to 210241

17111-011-010

Unavailable

8

PIPE, INLET (NOT AVAILABLE) | Use from Engine SN 210242 to 493417

17111-011-020

Unavailable

9

GASKET, IN. PIPE This part replaces 17119-011-000.

17119-011-306

Unavailable

10

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

10

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

10

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

10

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

11

BOLT, CYLINDER HEAD COVER (NOT AVAILABLE)

90004-011-000

Unavailable

12

BOLT A, CYLINDER (NOT AVAILABLE)

90031-001-010

Unavailable

13

STUD BOLT, CYLINDER (NOT AVAILABLE)

90032-001-010

Unavailable

14

WASHER, PLAIN (6.2MM) (NOT AVAILABLE)

90481-011-000

Unavailable

15

PIN A, DOWEL (10X14) | Use from Engine SN 363636 to 493417 This part replaces 90703-200-000.

94301-10140

$2.28

15

PIN A, DOWEL (10X14) | Use from Engine SN 363636 to 493417

94301-10140

$2.28

16

O-RING (30.8MM)

91302-001-020

$3.75

17

O-RING (11X2.0)

91303-259-000

$3.26

18

GASKET, RUBBER (7.5MM)

91306-001-000

Unavailable

19

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

19

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

19

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

20

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

20

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

20

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

20

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

20

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

21

BOLT, STUD (6X33) (SOURCE: VINTAGE PARTS INC.)

92712-06033

Unavailable

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57710.

98056-57713

$2.38

23

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.38

23

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.38

23

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.38
