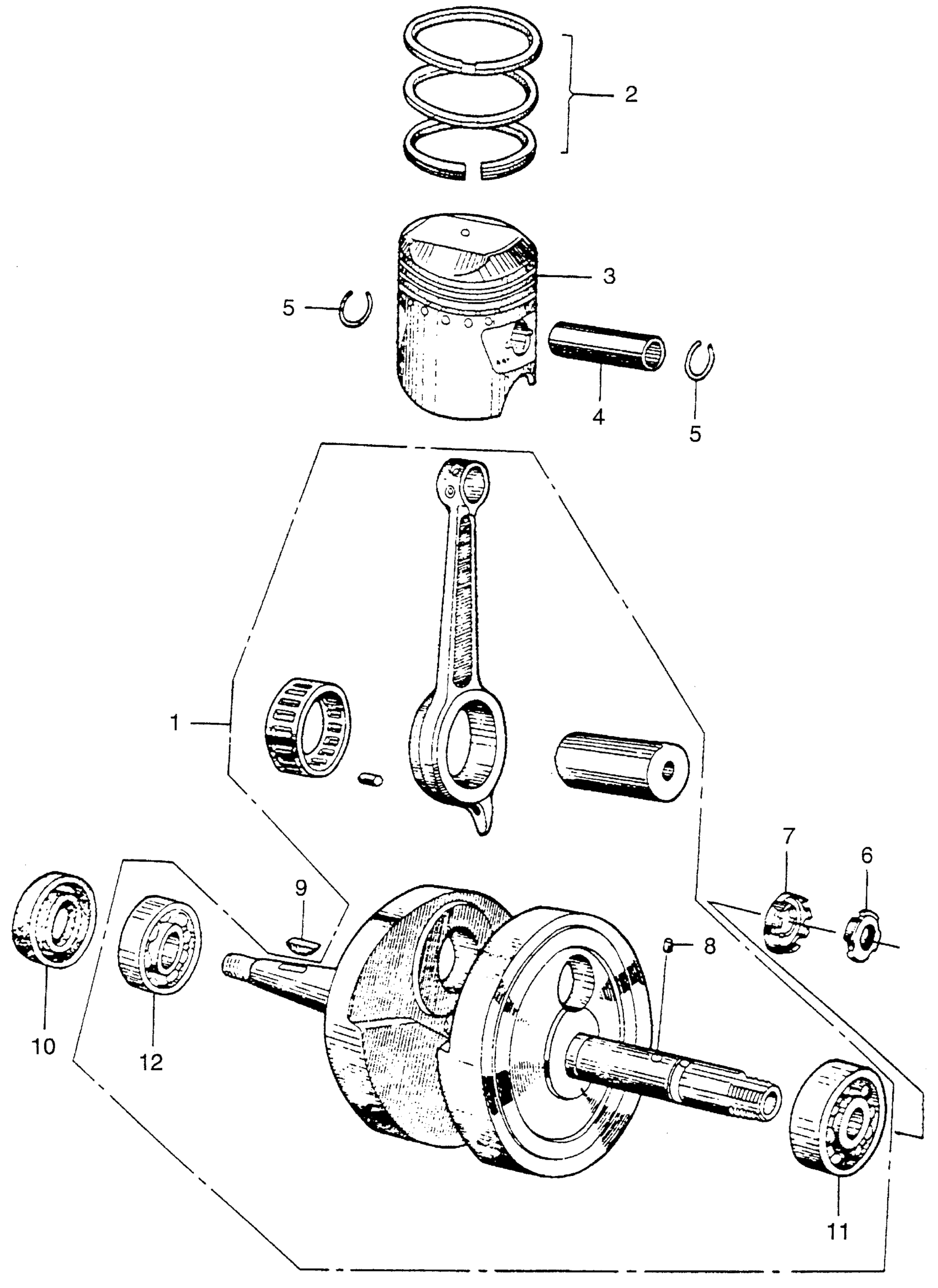

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. | Use up to Engine SN 185925

13000-011-333

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE)

13010-001-010

Unavailable

2

RING SET, PISTON (STD) (NOT AVAILABLE) This part replaces 13011-001-010.

13010-001-010

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE)

13040-001-010

Unavailable

2

RING SET, PISTON (0.75) (NOT AVAILABLE) This part replaces 13041-001-010.

13040-001-010

Unavailable

2

RING SET, PISTON (1.00)

13050-001-010

$46.69

2

RING SET, PISTON (1.00) This part replaces 13051-001-010.

13050-001-010

$46.69

2

PISTON (OS 0.25)

13102-011-010

Unavailable

2

PISTON (OS 0.50)

13103-011-010

Unavailable

3

PISTON (STD)

13101-011-010

Unavailable

3

PISTON (OS 0.25)

13102-011-010

Unavailable

3

PISTON (OS 0.50)

13103-011-010

Unavailable

3

PISTON (0.75) (NOT AVAILABLE)

13104-011-010

Unavailable

3

PISTON (1.00)

13105-011-010

Unavailable

4

PIN, PISTON (NOT AVAILABLE) | Use up to Engine SN 139955 This part replaces 13111-001-000.

13111-001-010

Unavailable

4

PIN, PISTON (NOT AVAILABLE)

13111-001-010

Unavailable

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

NUT, LOCK (14MM)

90231-KY4-900

$4.22

6

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

7

WASHER, LOCK (14MM)

90431-001-000

Unavailable

8

PIN, KNOCK GEAR (NOT AVAILABLE)

90719-001-020

Unavailable

8

PIN, TIMING GEAR KNOCK (NOT AVAILABLE) | Use from Engine SN 117043

90719-011-000

Unavailable

9

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

9

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

9

KEY, WOODRUFF (25X14X4) This part replaces 90741-KM1-670.

90701-HB6-010

$3.78

9

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-000.

90701-HB6-010

$3.78

9

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

10

OIL SEAL (17X34X7)

91204-001-000

Unavailable

11

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

11

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

12

BEARING, RADIAL BALL (6303) This part replaces 96100-63030.

96100-63030-00

$14.95

12

BEARING, RADIAL BALL (6303)

96100-63030-00

$14.95

12

BEARING, RADIAL BALL (6304) This part replaces 96100-63040.

96100-63040-00

$14.40

12

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
