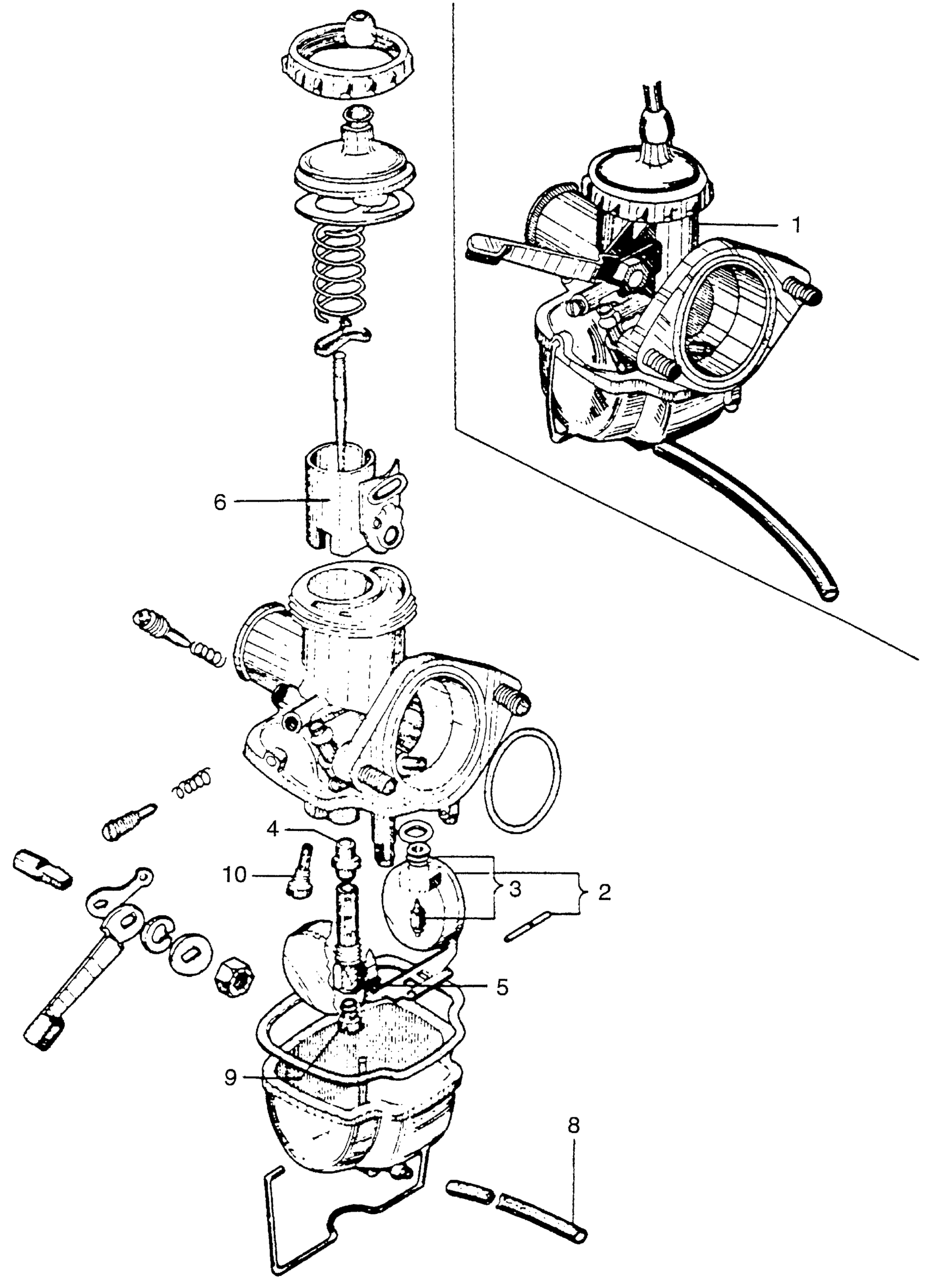

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-011-030

Unavailable

2

FLOAT SET

16013-035-680

Unavailable

2

FLOAT SET This part replaces 16122-011-004.

16013-035-680

Unavailable

3

VALVE SET, FLOAT

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16011-098-004.

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16011-134-004.

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16123-011-004.

16011-051-004

$16.40

3

VALVE SET, FLOAT This part replaces 16123-011-014.

16011-051-004

$16.40

4

NEEDLE, JET (NOT AVAILABLE)

16133-011-004

Unavailable

5

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-011-004

Unavailable

6

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-036-680

Unavailable

6

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16141-011-004.

16022-036-680

Unavailable

7

NEEDLE, JET (NOT AVAILABLE)

16151-011-004

Unavailable

8

PIPE, OVERFLOW (NOT AVAILABLE)

16235-001-050

Unavailable

9

JET, MAIN (#70) (NOT AVAILABLE)

99101-07004

Unavailable

9

JET, MAIN (#72) (NOT AVAILABLE)

99101-07204

Unavailable

9

JET, MAIN (#75) (NOT AVAILABLE)

99101-07504

Unavailable

9

JET, MAIN (#78) (NOT AVAILABLE)

99101-07804

Unavailable

9

JET, MAIN (#80) (NOT AVAILABLE)

99101-08004

Unavailable

9

JET, MAIN (#82) (NOT AVAILABLE)

99101-08204

Unavailable

9

JET, MAIN (#85) (NOT AVAILABLE)

99101-08504

Unavailable

9

JET, MAIN (#88) (NOT AVAILABLE)

99101-08804

Unavailable

9

JET, MAIN (#90) (NOT AVAILABLE)

99101-09004

Unavailable

9

JET, MAIN (#92) (NOT AVAILABLE)

99101-09204

Unavailable

9

JET, MAIN (#95) (NOT AVAILABLE)

99101-09504

Unavailable

10

JET, SLOW (#35) (NOT AVAILABLE)

99129-03504

Unavailable

10

JET, SLOW (#38) (NOT AVAILABLE)

99129-03804

Unavailable

10

JET, SLOW (#40)

99129-04004

Unavailable

10

JET, SLOW (#42) (NOT AVAILABLE)

99129-04204

Unavailable
