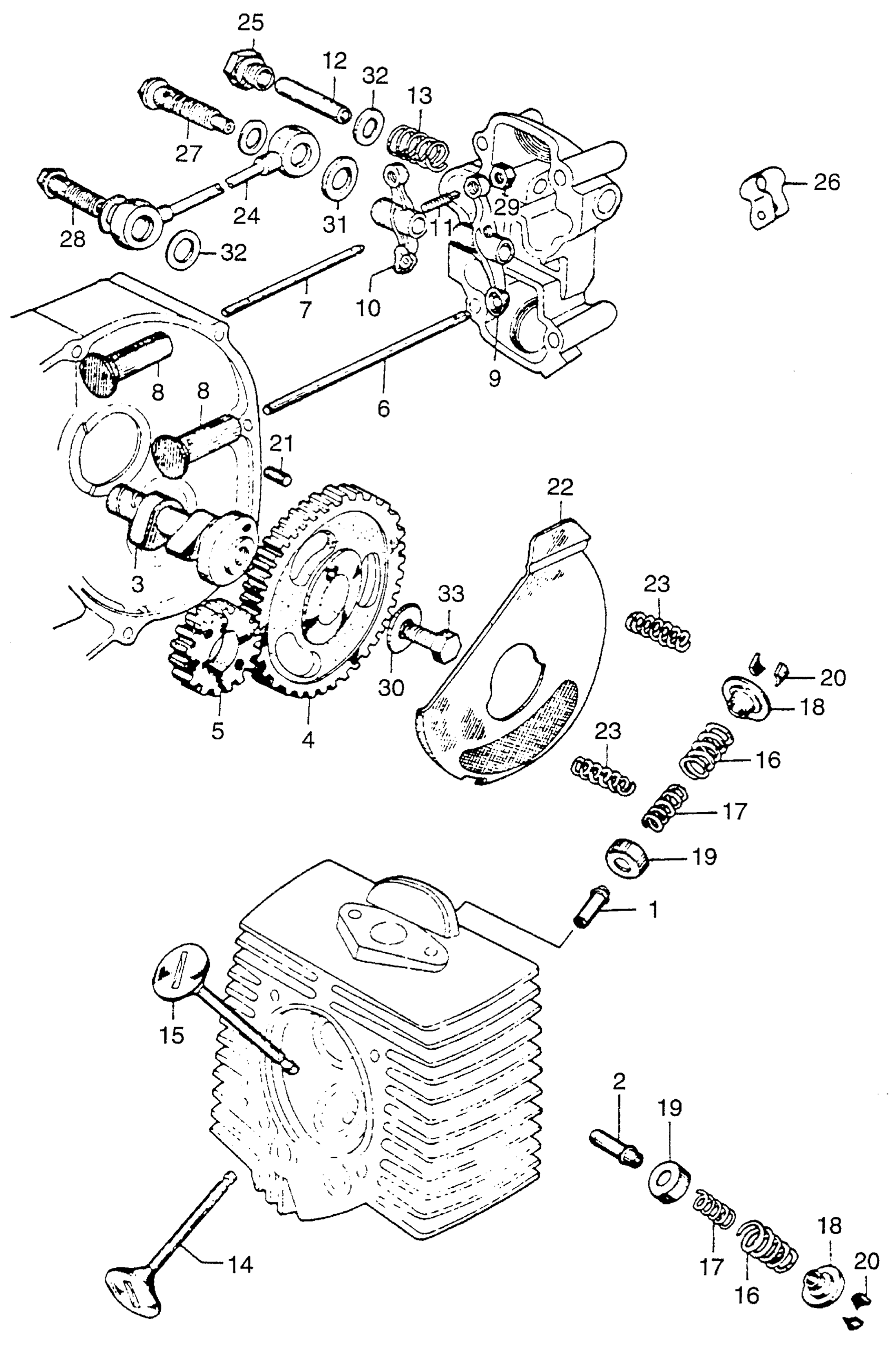

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-011-300

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-011-300

Unavailable

3

CAMSHAFT (NOT AVAILABLE)

14101-001-040

Unavailable

3

CAMSHAFT (NOT AVAILABLE) | Use from Engine SN 195742

14101-011-000

Unavailable

4

GEAR, TIMING (NOT AVAILABLE)

14311-003-000

$110.26

5

GEAR, CAM | Use from Engine SN 185926

14321-001-010

Unavailable

6

ROD, IN. PUSH (NOT AVAILABLE)

14411-001-030

Unavailable

6

ROD, IN. PUSH (NOT AVAILABLE) This part replaces 14411-011-000.

14411-001-030

Unavailable

7

ROD, PUSH EX. (NOT AVAILABLE)

14421-001-030

Unavailable

7

ROD, PUSH EX. (NOT AVAILABLE) This part replaces 14421-011-000.

14421-001-030

Unavailable

8

LIFTER, VALVE (NOT AVAILABLE)

14731-001-030

Unavailable

9

ARM, VALVE ROCKER IN. (NOT AVAILABLE) | Use up to Engine SN 196156 This part replaces 14431-001-030.

14431-001-040

Unavailable

9

ARM, VALVE ROCKER IN. (NOT AVAILABLE)

14431-001-040

Unavailable

10

ARM, EX. VALVE ROCKER | Use up to Engine SN 196156 This part replaces 14441-001-030.

14441-001-040

Unavailable

10

ARM, EX. VALVE ROCKER

14441-001-040

Unavailable

11

SCREW, TAPPET ADJ. This part replaces 90012-200-000.

90012-333-000

$2.75

11

SCREW, TAPPET ADJ.

90012-333-000

$2.75

12

SHAFT, VALVE ROCKER ARM (NOT AVAILABLE)

14451-001-030

Unavailable

13

SPRING, ROCKER ARM SIDE (NOT AVAILABLE)

14481-001-000

Unavailable

14

VALVE, IN. (NOT AVAILABLE)

14711-001-010

$33.41

15

VALVE, EX. (NOT AVAILABLE)

14721-001-010

$57.64

16

SPRING, VALVE (OUTER) (NOT AVAILABLE) This part replaces 14751-001-010.

14751-001-020

Unavailable

16

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-001-020

Unavailable

16

SPRING, VALVE (OUTER) (NOT AVAILABLE) This part replaces 14751-001-222.

14751-001-020

Unavailable

16

SPRING, VALVE (OUTER) (NOT AVAILABLE) This part replaces 14751-011-000.

14751-001-020

Unavailable

17

SPRING, VALVE (INNER) (NOT AVAILABLE) This part replaces 14761-001-000.

14761-001-010

Unavailable

17

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-001-010

Unavailable

17

SPRING, VALVE (INNER) (NOT AVAILABLE) This part replaces 14761-011-000.

14761-001-010

Unavailable

18

RETAINER, VALVE SPRING (NOT AVAILABLE) | Use from Engine SN 203242

14771-011-000

Unavailable

19

SEAT, VALVE SPRING

14775-028-010

$4.07

20

COTTER, VALVE

14781-001-004

$4.95

20

COTTER, VALVE

14781-001-010

$5.66

21

PIN, OIL PUMP SIDE COVER (NOT AVAILABLE)

15199-250-000

Unavailable

22

STRAINER, OIL (NOT AVAILABLE)

15420-001-010

Unavailable

23

SPRING, OIL STRAINER FIXING (NOT AVAILABLE)

15432-001-000

Unavailable

24

PIPE A, OIL (NOT AVAILABLE) | Use up to Engine SN 210241

15510-001-010

Unavailable

24

PIPE A, OIL (NOT AVAILABLE) | Use from Engine SN 210242

15511-011-010

Unavailable

25

SCREW, VALVE ROCKER ARM SHAFT (NOT AVAILABLE)

90011-001-000

Unavailable

26

CLIP, OIL PIPE (NOT AVAILABLE) | Use from Engine SN 177953 to 249955 This part replaces 15581-011-010.

15581-011-020

Unavailable

26

CLIP, OIL PIPE (NOT AVAILABLE) | Use from Engine SN 177953

15581-011-020

Unavailable

27

BOLT A, OIL JOINT (NOT AVAILABLE)

90015-001-000

Unavailable

28

BOLT B, OIL JOINT (NOT AVAILABLE)

90016-001-010

Unavailable

29

NUT, TAPPET ADJ.

90206-001-000

$1.66

30

WASHER, CAM GEAR SIDE (NOT AVAILABLE)

90403-001-000

Unavailable

31

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

32

WASHER (10.2MM)

90481-001-020

$2.92

33

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

33

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

33

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

33

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49
