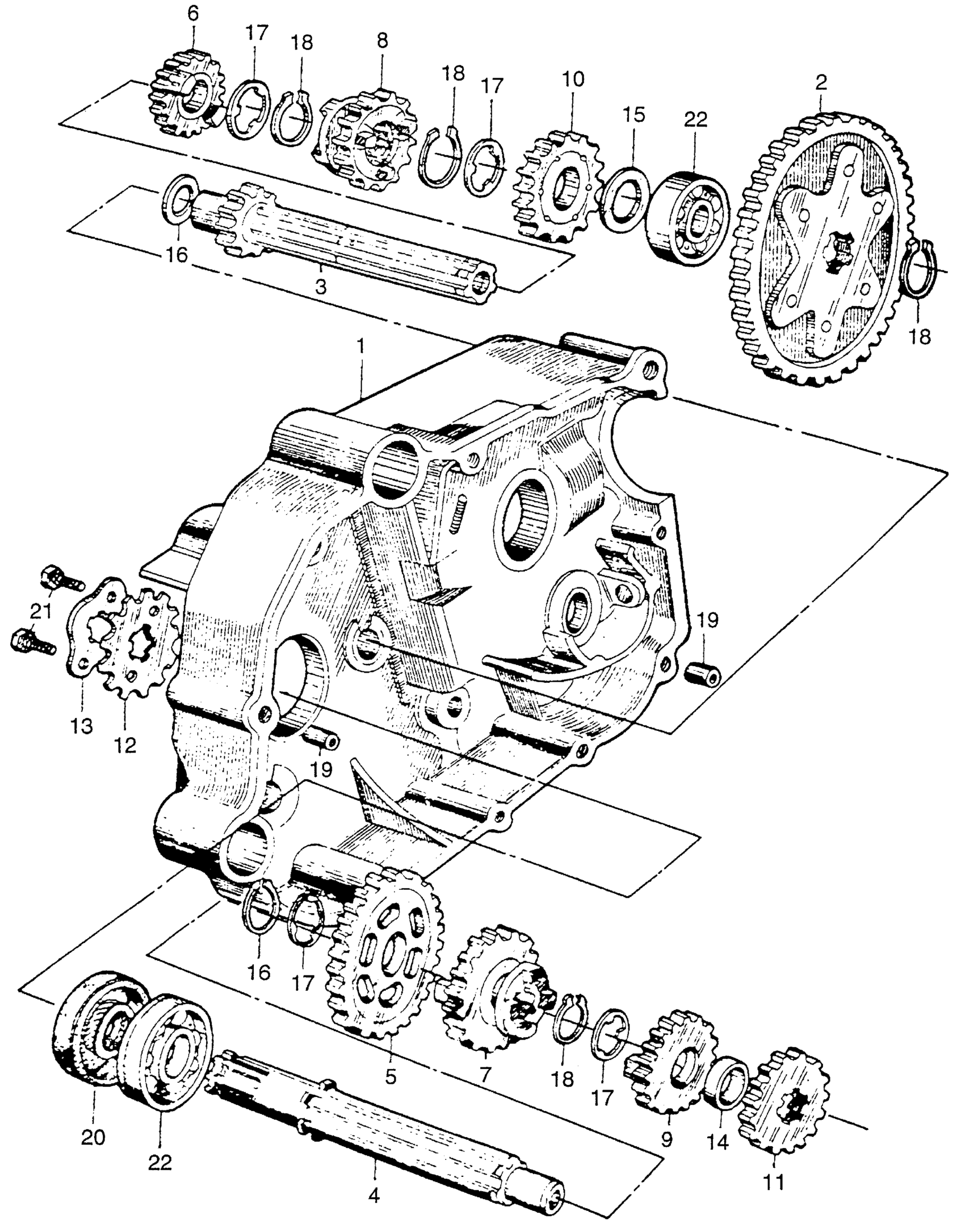

Honda CA110A MOTORCYCLE, JPN, VIN# CA110-100001 4 SP TRANSMISSION + LEFT CRANK CRANKCASE (2) Diagram

#

Description
Price

1

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN 212079

11200-011-030

Unavailable

2

GEAR, PRIMARY DRIVEN (NOT AVAILABLE)

23110-001-030

Unavailable

3

MAINSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 218192

23211-011-010

Unavailable

4

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN 218192

23221-011-000

Unavailable

5

GEAR, FIRST COUNTERSHAFT (NOT AVAILABLE) | Use from Engine SN 218192

23421-011-010

$153.77

6

GEAR, SECOND MAINSHAFT (NOT AVAILABLE) | Use from Engine SN 218192

23431-011-010

Unavailable

7

GEAR, SECOND COUNTERSHAFT (NOT AVAILABLE) | Use from Engine SN 218192

23441-011-010

$167.89

7

GEAR, SECOND COUNTERSHAFT (NOT AVAILABLE) | Use up to Engine SN 437790

23441-011-020

Unavailable

8

GEAR, THIRD MAINSHAFT (NOT AVAILABLE) | Use up to Engine SN 437789

23451-011-010

Unavailable

8

GEAR, THIRD MAINSHAFT (NOT AVAILABLE) | Use from Engine SN 437790

23451-011-020

Unavailable

9

GEAR, THIRD COUNTERSHAFT | Use from Engine SN 218192

23461-011-010

Unavailable

10

GEAR, MAINSHAFT TOP (NOT AVAILABLE) | Use from Engine SN 218162

23471-011-000

Unavailable

11

GEAR, COUNTERSHAFT TOP (NOT AVAILABLE) | Use from Engine SN 218192

23481-011-000

Unavailable

12

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

12

SPROCKET, DRIVE (14T) This part replaces 23801-001-010.

23800-040-010

$17.03

13

PLATE, DRIVE SPROCKET FIXING (NOT AVAILABLE)

23811-001-000

Unavailable

14

COLLAR, GEAR (NOT AVAILABLE) | Use from Engine SN 218192

23911-011-000

Unavailable

15

WASHER, MAINSHAFT TOP GEAR (NOT AVAILABLE)

90411-001-000

Unavailable

16

WASHER, THRUST (14MM) | Use from Engine SN 218192

90451-001-000

$3.67

17

WASHER, SPLINE (17MM) This part replaces 90461-001-000.

90461-035-000

$2.57

17

WASHER, SPLINE (17MM)

90461-035-000

$2.57

18

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

19

PIN A, DOWEL (10X14) | Use from Engine SN 363636 This part replaces 90703-200-000.

94301-10140

$2.28

19

PIN A, DOWEL (10X14) | Use from Engine SN 363636

94301-10140

$2.28

20

OIL SEAL (17X34X7)

91204-001-000

Unavailable

21

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

21

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

21

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

22

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

22

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
