Description

Price

-

Oil, Fork

2872184

Unavailable

-

Asm., Fork Leg, RH [Incl. 1-9,26-35]

1821427

$419.99

-

Asm., Fork Leg, LH [Incl. 1-9,26-35]

1821426

$404.99

1

Bushing, Lower

3585714

$27.78

2

Tube, Stanchion

5133282

$569.99

3

Foot, Buffer

5131498

Unavailable

4

Spring, Rebound

7041624

$10.63

5

Kit, Damper Rod/Segment

2202093

$41.27

5

RING, DAMPER

----

Unavailable

5

ROD, DAMPER

----

Unavailable

6

Spring, Compression

7042331

$94.44

7

Spacer, Preload

5521680

$31.75

8

O-Ring, Fork

5411330

$2.14

9

Plug, Fork

5131502

$65.48

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

11

Asm., Clamp, Triple, Lower

1820926

Unavailable

12

Bearing, Tapered, Sealed

3554510

Unavailable

12

Bearing, Tapered, Sealed

3554510

Unavailable

13

Bearing, Tapered Roller Cup

3554507

$31.75

14

Washer, Flat

7556260

$10.32

15

Spacer, Isolator

5134129

Unavailable

16

Clamp, Triple

5133914

$212.70

17

Cap, Steering Post

1013570

$48.39

18

Bolt, Steering Post Cap

5133050

$22.62

19

Washer, Flat

7556187

Unavailable

20

NUT, STEERING HEAD

5134094

$31.75

21

Isolator, Handlebar

5412272

Unavailable

22

NUT, NYLOK

7547268

$1.19

23

Plug, Steering Post

5412121

Unavailable

24

Base, Reflector, Front, LH

5433864

$15.56

24

Base, Reflector, Front, RH

5433748

$13.89

25

Reflector

5433878

$5.71

26

Kit, Slider Unit, Silver, LH [Incl. 29-32]

2202092

$514.99

27

Kit, Slider Unit, Silver, RH [Incl. 29-32]

2202091

$514.99

28

Cap, Dust

5133283

$56.65

28

Seal, Dust Cap

3610086

$31.75

29

Ring, Stop

5211827

$15.37

30

Seal, Oil

3610068

Unavailable

31

Cap, Oil Seal

5131504

$20.22

32

Bushing, Upper

3585715

$43.65

33

Screw

1500168

Unavailable

34

Screw

1500169

$4.21

35

Washer, Oil Seal

3610069

$23.81

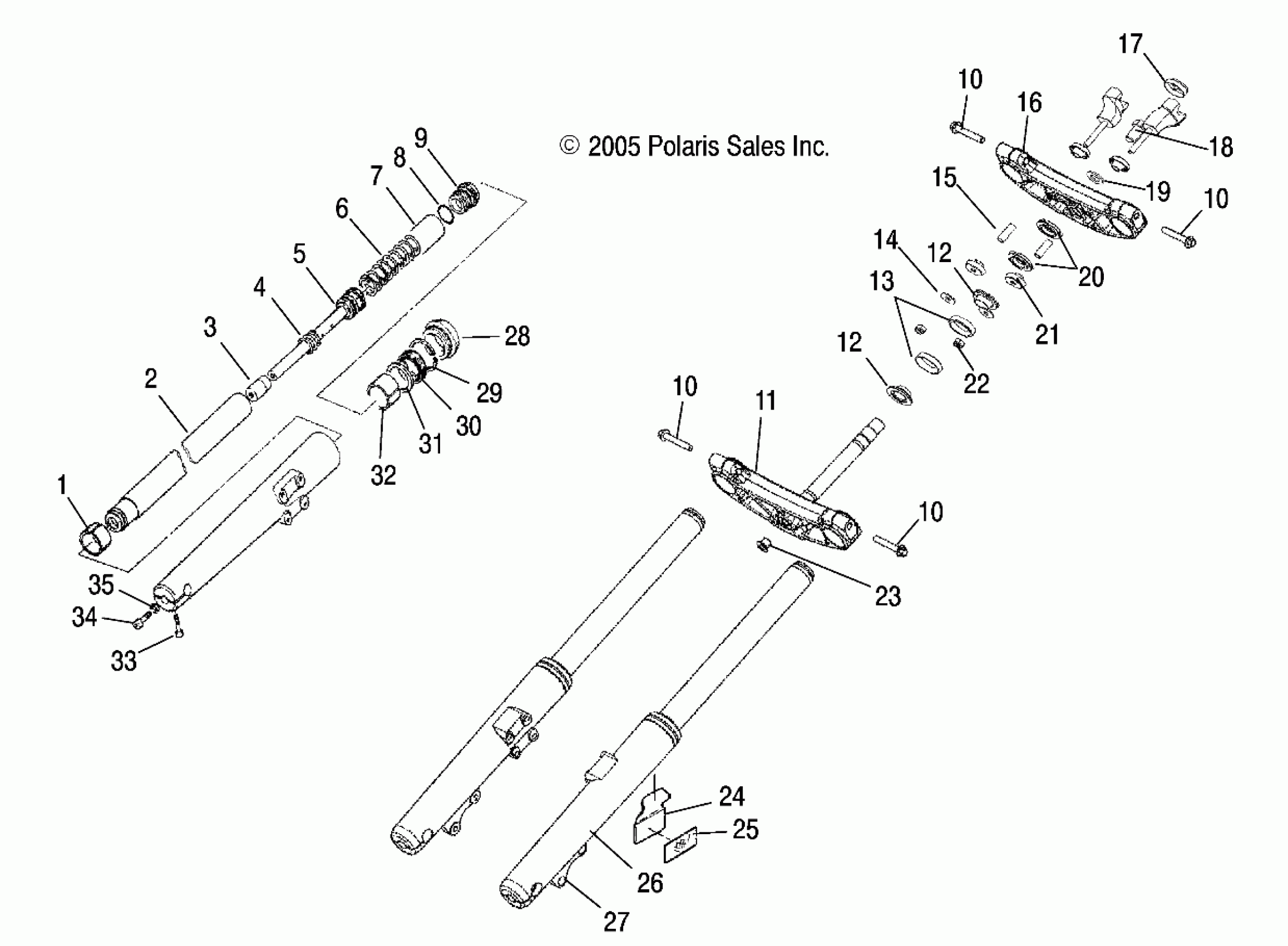

Polaris CA TOURING CRUISER ALL OPTIONS - V06TB16 SUSPENSION, FORKS, FRONT - V06TB16/ALL OPTIONS (4999203439920343A11) Diagram

Oil, Fork

Asm., Fork Leg, RH [Incl. 1-9,26-35]

Asm., Fork Leg, LH [Incl. 1-9,26-35]

Bushing, Lower

Tube, Stanchion

Foot, Buffer

Spring, Rebound

Kit, Damper Rod/Segment

RING, DAMPER

ROD, DAMPER

Spring, Compression

Spacer, Preload

O-Ring, Fork

Plug, Fork

Screw

Screw

Screw

Screw

Asm., Clamp, Triple, Lower

Bearing, Tapered, Sealed

Bearing, Tapered, Sealed

Bearing, Tapered Roller Cup

Washer, Flat

Spacer, Isolator

Clamp, Triple

Cap, Steering Post

Bolt, Steering Post Cap

Washer, Flat

NUT, STEERING HEAD

Isolator, Handlebar

NUT, NYLOK

Plug, Steering Post

Base, Reflector, Front, LH

Base, Reflector, Front, RH

Reflector

Kit, Slider Unit, Silver, LH [Incl. 29-32]

Kit, Slider Unit, Silver, RH [Incl. 29-32]

Cap, Dust

Seal, Dust Cap

Ring, Stop

Seal, Oil

Cap, Oil Seal

Bushing, Upper

Screw

Screw

Washer, Oil Seal
