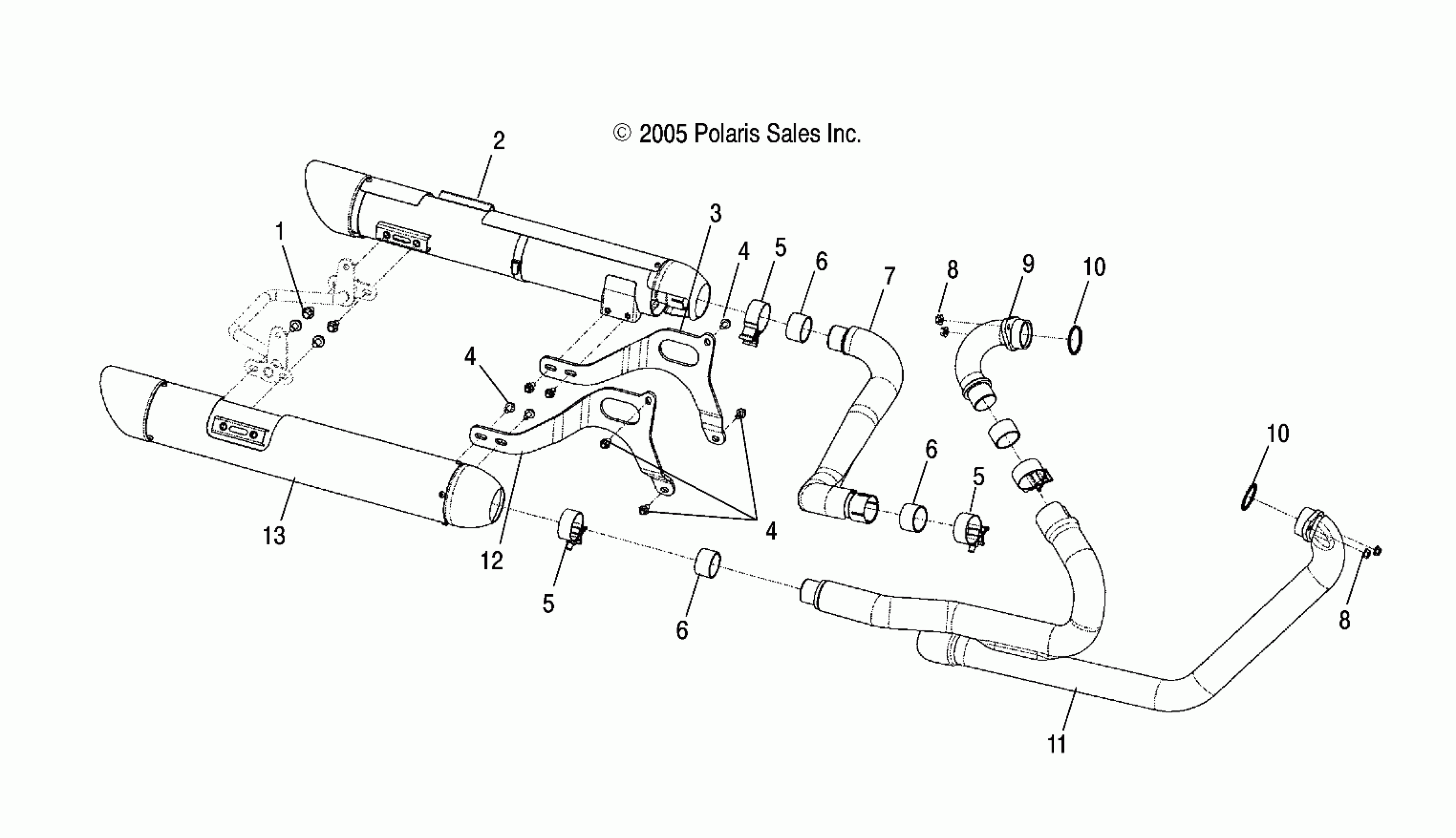

Polaris CA TOURING CRUISER ALL OPTIONS - V06TB16 ENGINE, EXHAUST SYSTEM - V06TB16/ALL OPTIONS (4999203439920343C05) Diagram

#

Description
Price

1

SCREW

7517951

$5.56

2

Shield, Heat, Muffler, LH

5245160

Unavailable

2

Shield, Heat, Muffler, Rear

5245162

$195.99

2

Asm., Muffler, LH

1261287

Unavailable

2

Shield, Muffler

1013434

$185.99

2

Screw

7518290

$4.76

3

Bracket, Exhaust, Black, LH

5244741-067

$69.84

3

Bracket, Exhaust, Silver, LH

5244741-385

$61.90

4

Screw [Silver]

7518043

$9.52

4

SCR-HXFL-M8X1.25X16 8.8 ZPB D5 [Black]

7517956

$7.94

4

Screw [Silver]

7518043

$9.52

4

SCR-HXFL-M8X1.25X16 8.8 ZPB D5 [Black]

7517956

$7.94

4

Screw [Silver]

7518043

$9.52

4

SCR-HXFL-M8X1.25X16 8.8 ZPB D5 [Black]

7517956

$7.94

5

Clamp, Muffler

7081028

Unavailable

5

Clamp, Muffler

7081028

Unavailable

5

Clamp, Muffler

7081028

Unavailable

6

Gasket, Exhaust, Muffler

5811770

Unavailable

6

Gasket, Exhaust, Muffler

5811770

Unavailable

6

Gasket, Exhaust, Muffler

5811770

Unavailable

7

Asm., Crossover

1260983

Unavailable

8

NUT

7546805

$7.84

8

NUT

7546805

$7.84

9

Manifold, Exhaust, Rear

1261087

$163.49

10

GASKET, EXHAUST, SEALING

5246008

$19.84

10

GASKET, EXHAUST, SEALING

5246008

$19.84

11

CLAMP

7080774

$10.32

11

Asm., Header Pipe

1261325

$494.99

11

Shield, Heat, Rear

1261121

$133.99

11

Shield, Front

1261188

$139.99

12

Bracket, Exhaust, Black, RH

5244746-067

$38.51

12

Bracket, Exhaust, Silver, RH

5244746-385

$38.51

13

Shield, Heat, Muffler, Rear

5245162

$195.99

13

Asm., Muffler, RH

1261288

$599.99

13

Shield, Muffler

1013433

$154.99

13

Shield, Heat, Muffler, RH

5245161

Unavailable

13

Screw

7518290

$4.76
