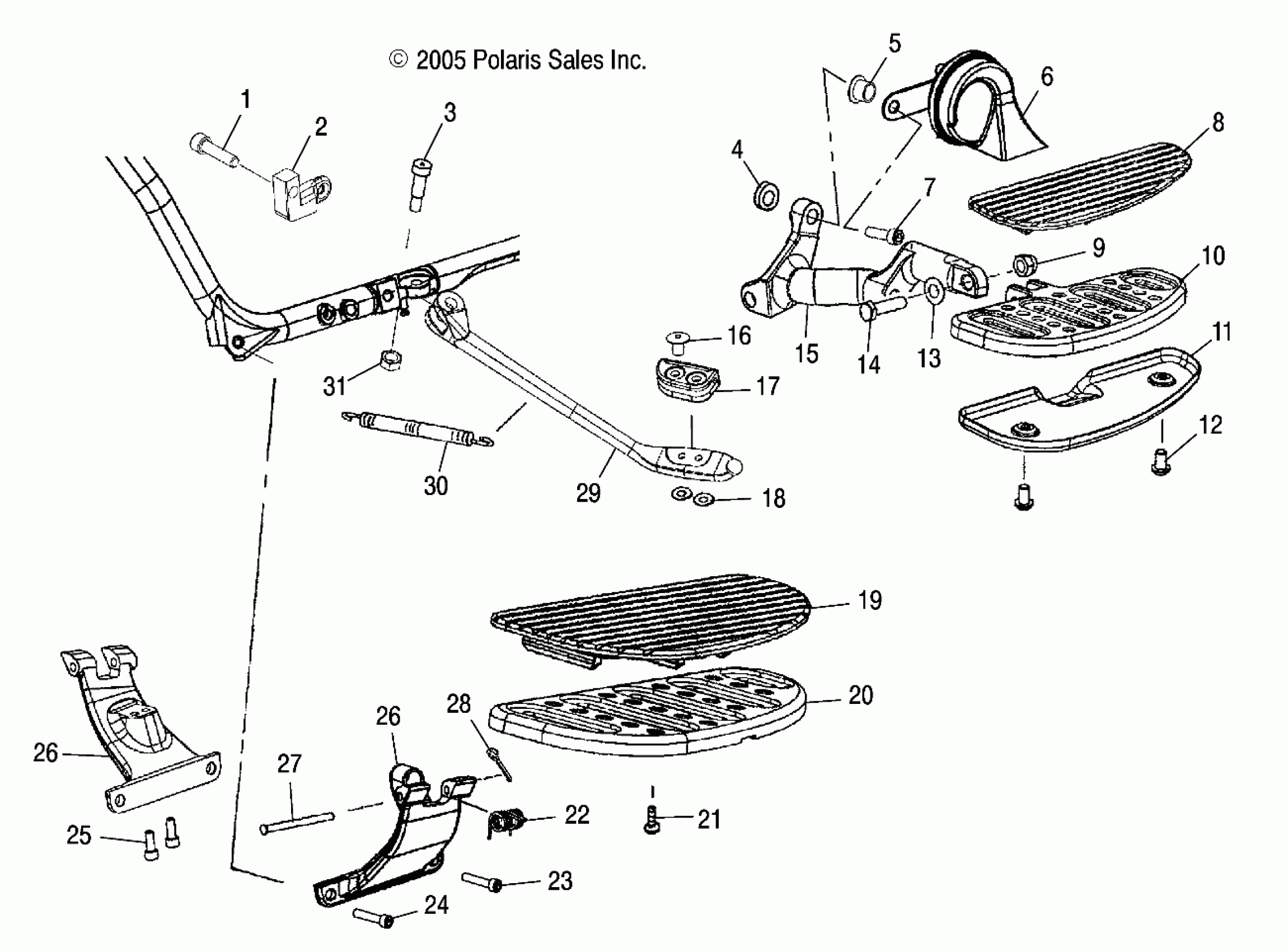

Polaris CA TOURING CRUISER ALL OPTIONS - V06TB16 CHASSIS, FLOOR BOARD and SIDE STAND - V06TB16/ALL OPTIONS (4999203439920343A06) Diagram

#

Description
Price

1

SCREW

7517525

$3.99

2

Bracket, Sidestand, Spring, Short

5631599

$23.79

3

Screw

7517404

Unavailable

4

Spacer

5133113

Unavailable

5

Spacer

5132658

$3.92

6

Horn, Trumpet

4010688

$86.51

7

Screw

7518123

$3.57

8

Pad, Floorboard, Passenger, LH

5411871

$36.83

8

Pad, Floorboard, Passenger, RH

5411872

$36.03

9

NUT

7547039

Unavailable

10

Floorboard, Passenger, LH

5133098

$112.60

10

Floorboard, Passenger, RH

5133099

$112.60

11

Cover, Floorboard, Passenger, LH

5245624-425

$31.11

11

Cover, Floorboard, Passenger, RH

5245625-425

$30.32

12

SCREW

7517406

Unavailable

13

Washer, Spring

7556046

$4.35

14

SCR-HEXHD,M10X40,0600088

7517993

$4.99

15

Support, Footrest, Passenger, LH

5246161-067

$163.49

15

Support, Footrest, Passenger, RH

5246162-067

$163.49

16

RIVET

7661064

Unavailable

17

PAD, SIDE STAND

5412662

Unavailable

18

WASHER, FLAT

7556121

$1.49

19

Pad, Floorboard, LH

5412025

$36.83

19

Pad, Floorboard, RH

5412026

$36.83

20

Floorboard, Driver, LH

5132228

Unavailable

20

Floorboard, Driver, RH

5132229

Unavailable

21

Screw, Acorn

7517694

$8.71

22

Spring, Floorboard Support

7041623

$27.99

23

Screw

7518123

$3.57

24

Screw

7518131

$2.62

25

SCREW

7517410

Unavailable

26

Support, Floorboard, LH, Black

5132429-067

Unavailable

26

Support, Floorboard, RH, Black

5132430-067

$216.99

26

Support, Floorboard, LH, Silver

5132429-385

$196.83

26

Support, Floorboard, RH, Silver

5132430-385

$188.10

26

Support, Floorboard, LH, Black

5132429-067

Unavailable

26

Support, Floorboard, RH, Black

5132430-067

$216.99

26

Support, Floorboard, LH, Silver

5132429-385

$196.83

26

Support, Floorboard, RH, Silver

5132430-385

$188.10

27

PIN, FLOORBOARD SUPPORT

7661095

$2.99

28

PIN, COTTER

7661094

Unavailable

29

Asm., Side Stand [Incl. 16,17,18]

1013062

Unavailable

30

Spring, Side Stand

7043056

Unavailable

31

Nut

7547239

Unavailable
