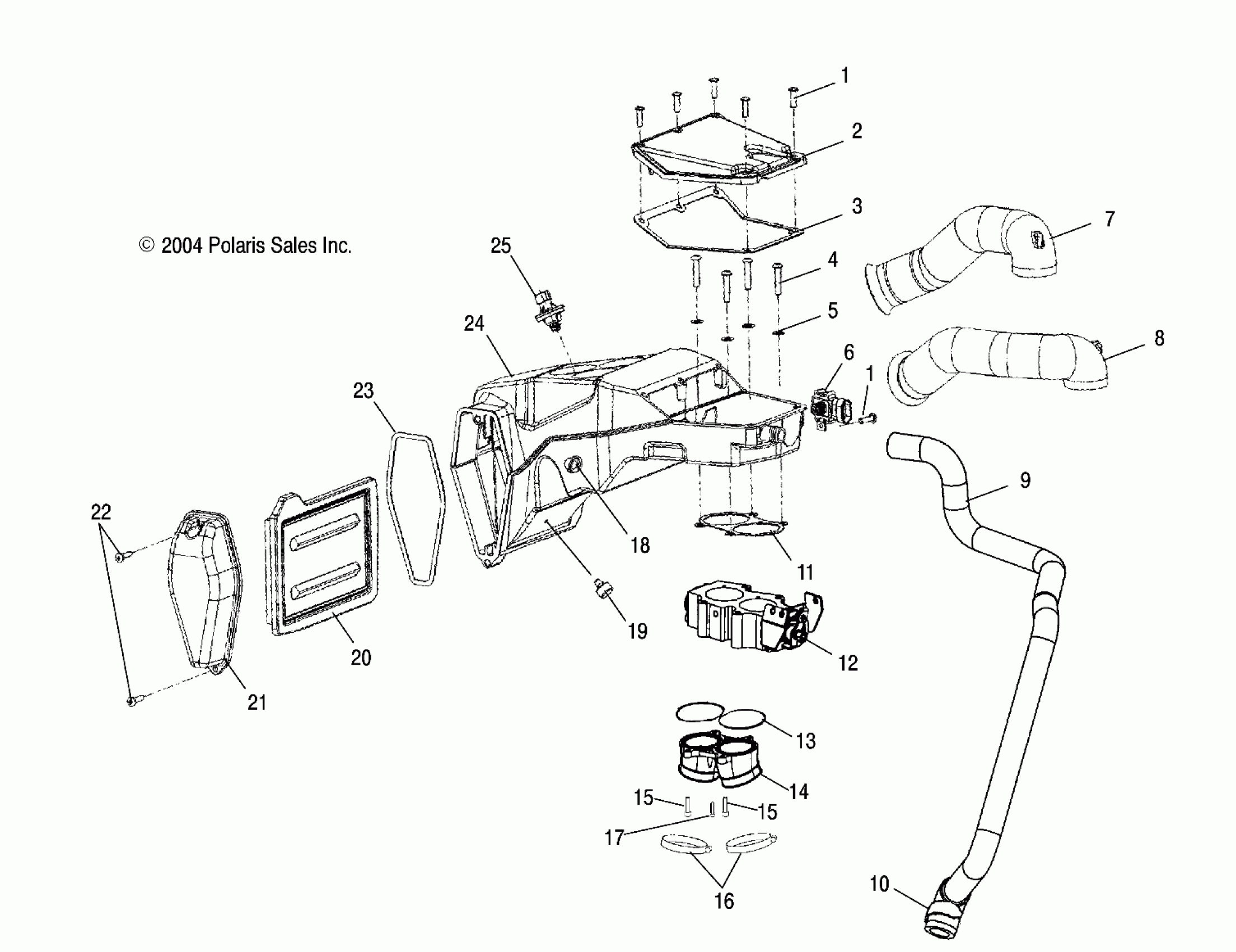

Polaris CA TOURING CRUISER ALL OPTIONS - V05TB16 ENGINE, AIR BOX - V05TB16/ALL OPTIONS (4996279627C08) Diagram

#

Description
Price

1

Screw

7517842

$3.48

1

Screw

7517842

$3.48

2

Cover, Airbox

5433466

$44.99

3

Seal, Airbox Cover

5811867

Unavailable

4

Screw, Button Head

7517885

$5.56

5

WASHER, FLAT

7556121

$1.19

6

SENSOR, MAP [SEE ELECTRICAL PG. C3, REF. 9]

----

Unavailable

7

Tube, Intake, Airbox, RH

5433471

$25.40

8

Tube, Intake, Airbox, LH

5433470

$40.46

9

Hose, Breather

5434070

Unavailable

10

CLAMP, BREATHER HOSE

7080782

$6.10

11

Gasket, Airbox

5811908

$9.52

12

ASM., THROTTLE BODY [SEE FUEL SYSTEM PG. D10, REF. 24]

----

Unavailable

13

O-Ring

5412259

$1.59

14

Adapter, Throttle Body

1253335

$159.99

15

SCREW

7517259

$5.56

15

SCREW

7517259

$5.56

16

Clamp, Narrow Band

7080656

$4.76

17

SCREW

7516610

$3.97

18

Clip, Retainer

5432302

Unavailable

19

Bumper, Rubber

5811869

$4.35

20

Filter, Air

7080858

$21.81

21

Cover, Air Filter

5433469

Unavailable

22

Screw

7517816

$29.99

23

Seal, Filter, Access Hatch

5811866

$11.51

24

Asm., Airbox

1013720

$117.37

25

SENSOR, AIR TEMPERATURE [SEE ELECTRICAL PG. C3, REF. 5]

----

Unavailable
