- CA TOURING CRUISER ALL OPTIONS - V05TB16
ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V05TB16/ALL OPTIONS (4996279627C03)

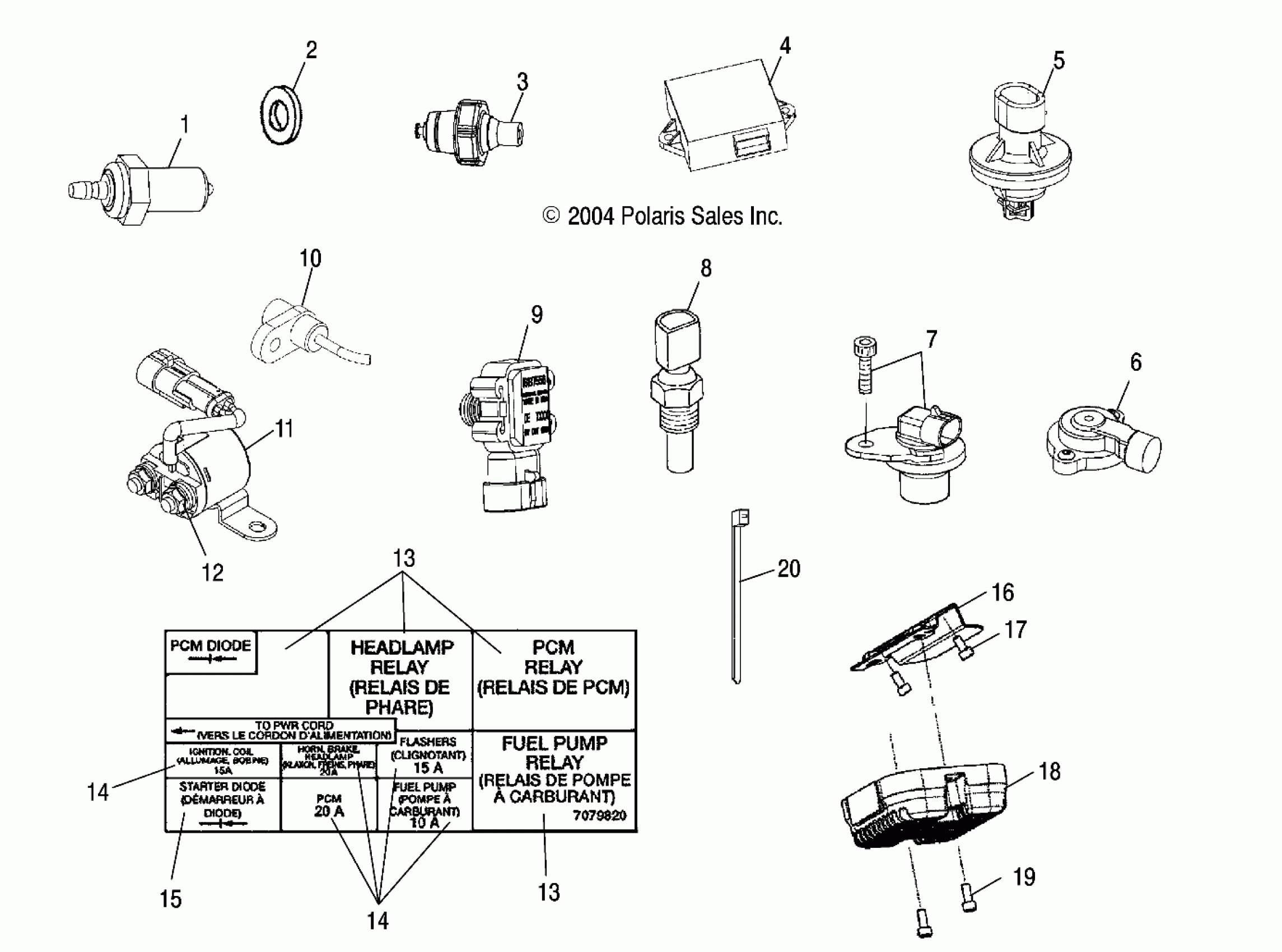

Polaris CA TOURING CRUISER ALL OPTIONS - V05TB16 ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V05TB16/ALL OPTIONS (4996279627C03) Diagram
#
-
CLIP, ELECTRICAL
7080737
Unavailable
-
Connector, Fender, Rear
4010153
$13.89
-
Lock, Connector, Fender, Rear
4010154
$1.35
-
Harness, Driving Light
2460956
$61.90
-
Decal, Fuse Box
7079820
Unavailable
-
Clip, Wire Harness
7080930
$2.22
-
Harness, Jumper (Parking Lamp)
2461130
$15.16
-
Harness, Rear
2460954
$90.48
-
Harness, Main Wire
2461224
$450.99
-
Harness, Jumper, Fuel Injector
2461135
Unavailable
1
Switch, Neutral Indicator
4110235
Unavailable
2
Washer, Flat
7556154
$2.87
3
Sensor, Oil Pressure
4010649
Unavailable
4
Flasher, Turn Signal, Hazard
2410101
Unavailable
5
Sensor, Air Temperature
4040077
Unavailable
6
Sensor, Throttle Position
4010225
Unavailable
6
O-Ring, Throttle Position
1500201
$2.87
7
SCREW
7517272
$7.19
7
Sensor, Crankshaft Position
4110217
Unavailable
8
Sensor, Engine Temperature
4040076
Unavailable
9
Sensor, MAP
4040078
Unavailable
10
Sensor, Speed
4011111
$183.95
11
Solenoid, Starter
4010947
Unavailable
12
NUT
7547270
$3.99
13
Relay, Micro
2410314
Unavailable
13
Relay, Micro
2410314
Unavailable
14
FUSE-PARK,20 AMP
2434017
Unavailable
14
FUSE-IGNITION,10 AMP
2434016
$4.79
14
FUSE-MINI BLADE,15 AMP
2410280
Unavailable
14
FUSE-PARK,20 AMP
2434017
Unavailable
14
FUSE-IGNITION,10 AMP
2434016
$4.79
14
FUSE-MINI BLADE,15 AMP
2410280
Unavailable
15
DIODE-STARTER CIRCUIT
2434019
$13.95
16
Bracket, Voltage Regulator [Black]
1013510
$27.94
16
Bracket, Voltage Regulator, Silver
1013623
$41.27
17
Screw
7517739
$9.59
18
Asm., Regulator, Voltage [Black]
2410337
Unavailable
18
Asm., Regulator, Voltage, Silver
2410329
$236.99
19
SCREW
7517272
$7.19
20
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
