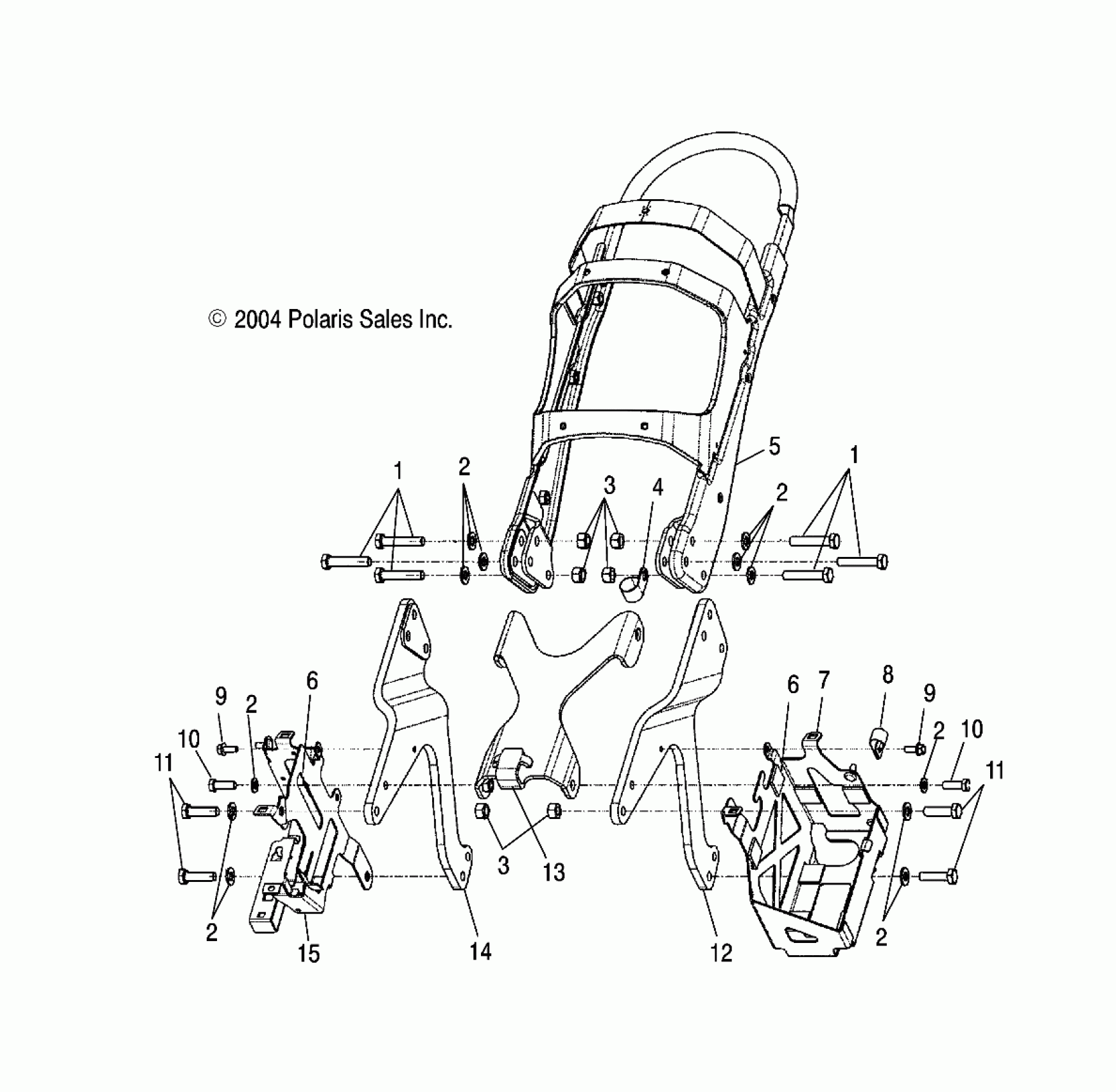

Polaris CA TOURING CRUISER ALL OPTIONS - V05TB16 CHASSIS, FRAME, SUB - V05TB16/ALL OPTIONS (4996279627A04) Diagram

#

Description
Price

1

SCREW

7517946

Unavailable

1

SCREW

7517946

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

3

NUT

7547039

Unavailable

3

NUT

7547039

Unavailable

4

Clamp, Rubber Coated

7080935

$5.92

5

Subframe, Rear, Black

1012953-067

$744.99

5

Subframe, Rear, Silver

1012953-385

$724.99

6

Pad, Battery Box

5244759

$4.95

6

Pad, Battery Box

5244759

$4.95

7

Box, Battery, Black

1013232-067

$87.99

7

Box, Battery, Silver

1013232-385

$77.99

8

CLAMP, VINYL COATED

7080998

$3.19

9

Screw

7517705

$6.79

9

Screw

7517705

$6.79

10

Screw

7517826

$6.23

10

Screw

7517826

$6.23

11

Screw

7518170

$1.43

11

Screw

7518170

$1.43

12

Subframe, Formed, Black, LH

1013236-067

$188.10

12

Subframe, Formed, Silver, LH

1013236-385

$172.22

13

Cover, Subframe, Black

1013348-067

$69.84

13

Cover, Subframe, Silver

1013348-385

$69.84

14

Subframe, Formed, Black, RH

1013237-067

$188.10

14

Subframe, Formed, Silver, RH

1013237-385

$172.22

15

Mount, ECU, Side Cover, Black

1013677-067

$49.21

15

Mount, ECU, Side Cover, Silver

1013677-385

$49.21
