BODY, SADDLEBAGS - V05TB16/ALL OPTIONS (4996279627B13)

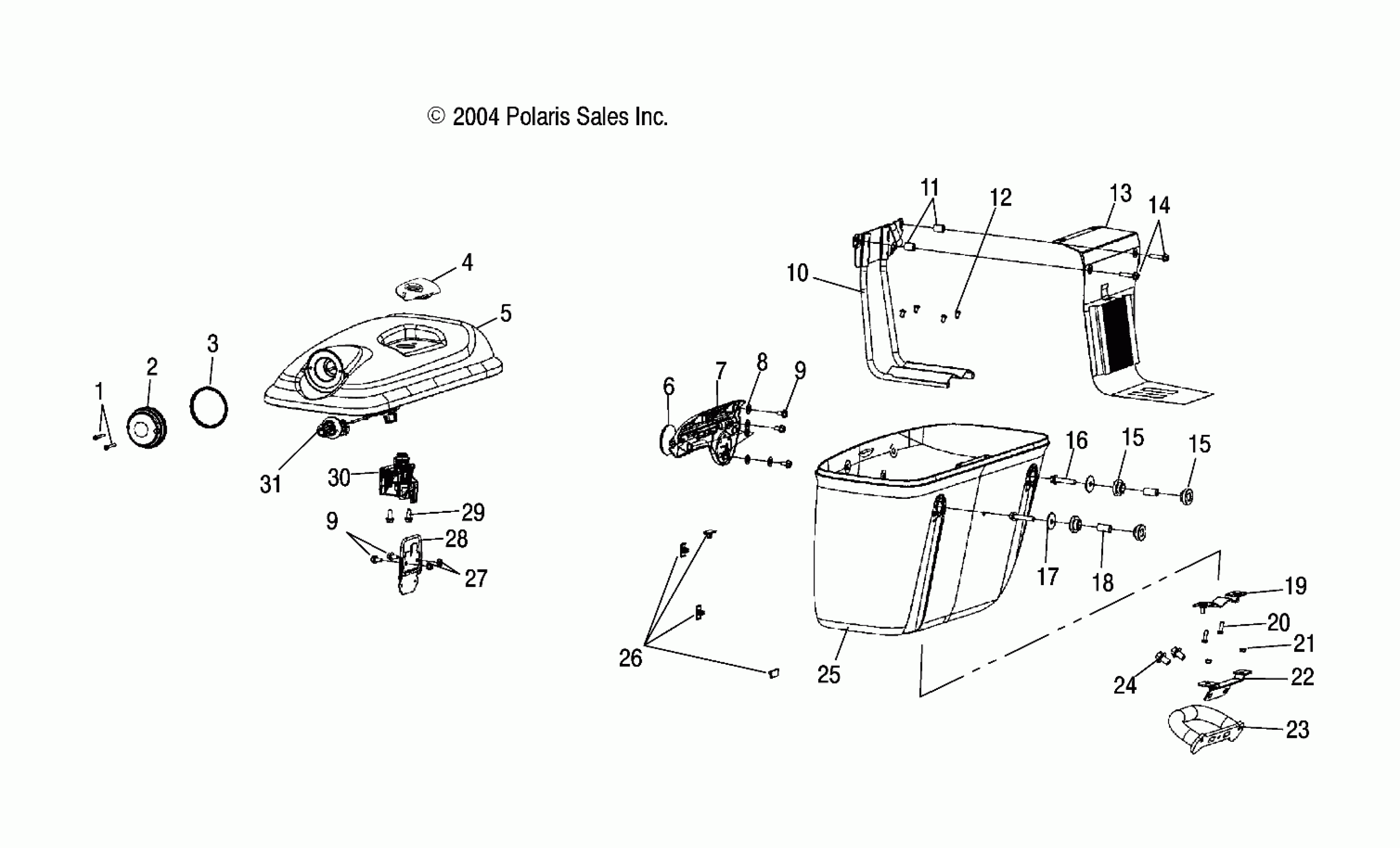

Polaris CA TOURING CRUISER ALL OPTIONS - V05TB16 BODY, SADDLEBAGS - V05TB16/ALL OPTIONS (4996279627B13) Diagram
#
1
Screw
7517895
$2.62
2
Lens, Turn Signal
5432770
Unavailable
3
Bezel, Turn Signal
5433931
Unavailable
4
Cover, Lock, LH [Black]
5132754-266
Unavailable
4
Cover, Lock, RH [Black]
5132755-266
$119.05
4
Cover, Lock, LH [Blue]
5132754-341
$147.62
4
Cover, Lock, RH [Blue]
5132755-341
$297.62
4
Cover, Lock, LH [Red]
5132754-342
Unavailable
4
Cover, Lock, RH [Red]
5132755-342
Unavailable
4
Cover, Lock, LH, Midnight Blue Metallic
5132754-469
$130.95
4
Cover, Lock, RH, Midnight Blue Metallic
5132755-469
$122.06
4
Cover, Lock, LH, PWH
5132754-352
$130.95
4
Cover, Lock, RH, PWH
5132755-352
$130.95
5
Cover, Side Bag, LH [Black]
5433222-266
$464.99
5
Cover, Side Bag, RH [Black]
5433223-266
$434.99
5
Cover, Side Bag, LH [Blue]
5433222-341
$454.99
5
Cover, Side Bag, RH [Blue]
5433223-341
$494.99
5
Cover, Side Bag, LH [Red]
5433222-342
$434.99
5
Cover, Side Bag, RH [Red]
5433223-342
$434.99
5
Cover, Side Bag, LH, Cruiser Black/Hot Rod Flames
5433222-1166
$469.99
5
Cover, Side Bag, RH, Cruiser Black/Hot Rod Flames
5433223-1166
$469.99
5
Cover, Side Bag, LH, Midnight Blue Metallic
5433222-469
$393.99
5
Cover, Side Bag, RH, Midnight Blue Metallic
5433223-469
Unavailable
5
Cover, Side Bag, LH, PWH
5433222-352
$434.99
5
Cover, Side Bag, RH, PWH
5433223-352
$434.99
6
Reflector, Round, Red
5433921
Unavailable
7
Asm., Hinge, LH
2632149
$434.99
7
Asm., Hinge, RH
2632150
$434.99
8
Washer, Rubber
5812197
Unavailable
9
SCREW
7517704
$7.19
9
SCREW
7517704
$7.19
10
Support, Inner, Left
1013140-067
$130.95
10
Support, Inner, Right
1013248-067
$147.62
11
Spacer, Strap
5132855
$4.76
12
Screw
7517690
$2.60
13
Asm., Strap, Hinge, LH
2682989
$93.32
13
Asm., Strap, Hinge, RH
2682563
$88.56
14
SCREW
7518003
$4.79
15
Pad, Bag Mount, Inner
5812112
$2.62
15
Pad, Bag Mount, Inner
5812112
$2.62
16
SCREW
7517881
$1.99
17
Washer, Flat
7556219
$6.39
18
Sleeve, Bag Mount
5245211
Unavailable
19
Mount, Bag, Lower
1014073
$65.87
20
Screw
7517690
$2.60
21
Bushing, Bag Mount, Lower
5434810
$1.99
22
Bracket, Muffler/Bag Mount
5246725
Unavailable
23
Bar, Highway, Rear
1013621
$172.22
24
SCREW
7517951
$5.59
25
Bag, Side, LH [Sonic Blue]
5433186-341
$679.99
25
Bag, Side, RH [Sonic Blue]
5433187-341
$679.99
25
Bag, Side, LH [Red]
5433186-342
$649.99
25
Bag, Side, RH [Red]
5433187-342
$649.99
25
Bag, Side, LH Black
5433186-266
$714.99
25
Bag, Side, RH Black
5433187-266
$649.99
25
Bag, Side, LH [Cruiser Black/Hot Rod Flames]
5433186-1166
$649.99
25
Bag, Side, RH [Cruiser Black/Hot Rod Flames]
5433187-1166
$659.99
25
Bag, Side, LH [Midnight Blue Met]
5433186-1178
$649.99
25
Bag, Side, RH [Midnight Blue Met]
5433187-1178
Unavailable
25
Bag, Side, LH, Pearl White/Silver
5433186-1185
$649.99
25
Bag, Side, RH, Pearl White/Silver
5433187-1185
$649.99
26
Clip, Wire
7670138
$4.21
27
Nut
7710495
$4.79
28
Latch, Lid
1013142-067
$31.11
29
Screw
7517770
$2.39
30
Lock, Saddlebag
7080915
Unavailable
31
Asm., Turn Signal, Rear
2410264
$135.30
31
Bulb, Turn Signal, Rear
4010517
$11.51
