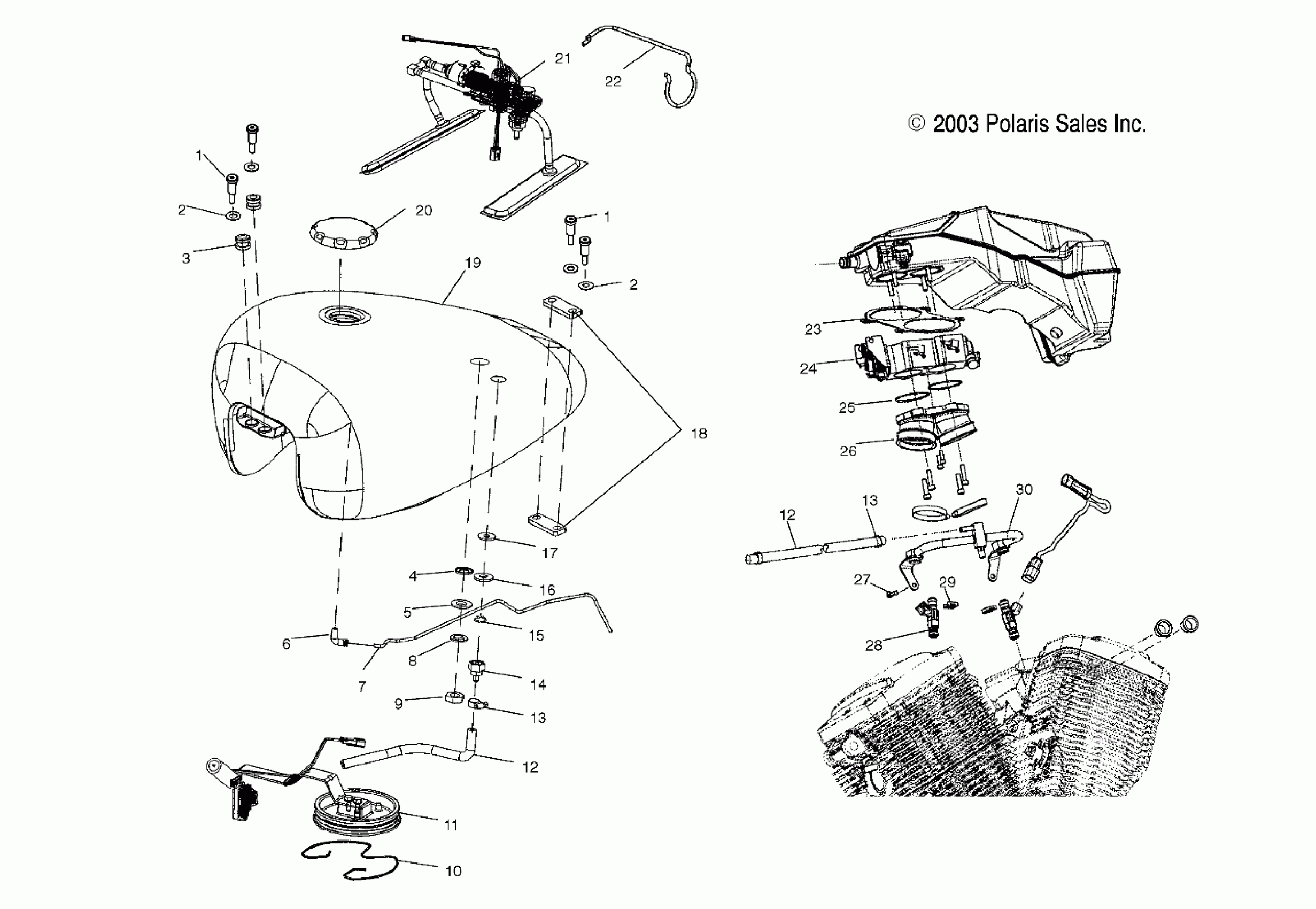

Polaris CA TOURING CRUISER ALL OPTIONS - V04TB16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V04TB16/ALL OPTIONS (4989528952D09) Diagram

#

Description
Price

1

Screw, Socket Head

7517723

Unavailable

1

Screw, Socket Head

7517723

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

3

Grommet, Rubber,Fuel Tank, Front

5811878

Unavailable

4

Grommet, Fuel Pump

5412095

Unavailable

5

Washer, Sealing, Fuel Pump

7556193

Unavailable

6

Elbow, Vent Line

5411972

$1.98

7

Line, Vent, Fuel

5433950

$12.30

8

Washer, Fuel Pump

7556192

Unavailable

9

Nut

7547186

$4.76

10

Ring, Retaining

7710515

Unavailable

11

O-Ring

5412071

Unavailable

11

Sender, Fuel Level

4010373

Unavailable

12

Hose, Fuel Tank

5411942

$39.99

12

Hose, Fuel Tank

5411942

$39.99

13

Clamp, Hose

7080894

$7.14

13

Clamp, Hose

7080894

$7.14

14

Fitting, Fuel Nut, Fuel Pump

2520251

Unavailable

15

O-Ring, Fuel Pump

5411869

Unavailable

16

Washer, Fuel Pump

7556131

$3.17

17

Grommet, Fuel Pump

5412093

Unavailable

18

Pad, Tank Mount, Rear

5411796

Unavailable

19

Tank, Fuel [Black]

1013279-266

$557.54

19

Tank, Fuel, Solar Red

1013279-342

Unavailable

19

Tank, Fuel, Sonic Blue

1013279-341

Unavailable

19

Tank, Fuel [Blue/Champagne]

1013279A23

Unavailable

19

Tank, Fuel [Red/Champagne]

1013279A24

Unavailable

19

Tank, Fuel [Green/Champagne]

1013279A25

Unavailable

19

Tank, Fuel [Turquoise/White]

1013279A26

Unavailable

19

Tank, Fuel [Black/Silver]

1013279A22

Unavailable

20

Cap, Fuel

5132333

Unavailable

21

Thermistor, Fuel Pump [Level Sensor]

2520678

Unavailable

21

Pump, Fuel w/Clip [Incl. 4,5,8,9,14-17]

2520344

$664.99

21

Filter, Fuel Line, Internal

2520245

Unavailable

22

Clip, Retainer, Fuel Pump

5334291

Unavailable

23

Gasket

5811908

$9.52

24

Asm., Throttle Body

1253363

$519.99

24

Cap, Fitting

5411886

$8.89

25

O-Ring

5412259

Unavailable

26

Adapter, Throttle Body

1253335

Unavailable

27

SCREW

7517405

$10.39

28

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

28

Injector, Fuel

1253405

Unavailable

29

Clip, Injector Clocking

7670129

Unavailable

30

Asm., Fuel Rail

2520207

Unavailable
