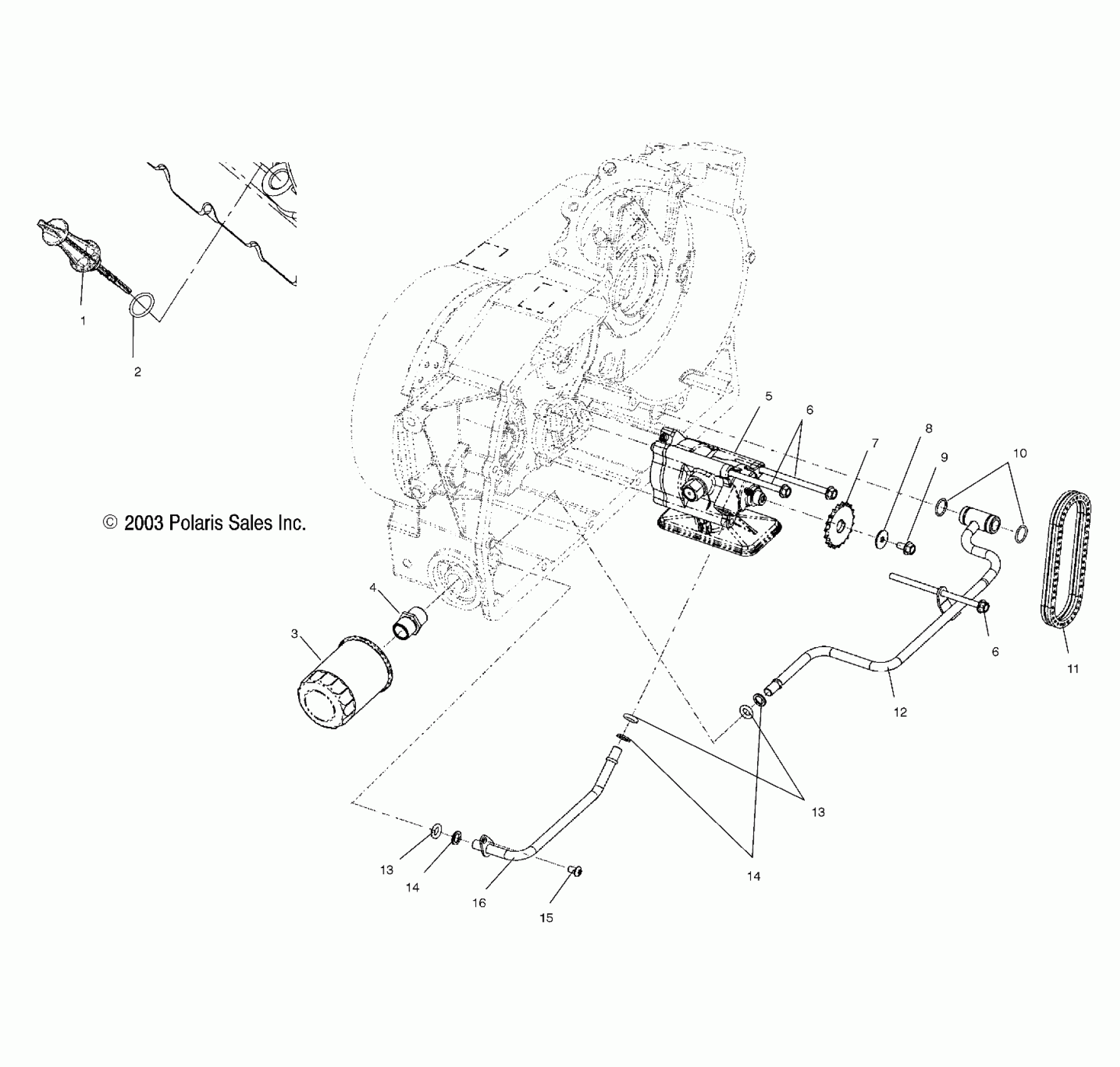

Polaris CA TOURING CRUISER ALL OPTIONS - V04TB16 ENGINE, OIL PUMP MOUNTING - V04TB16/ALL OPTIONS (4989528952D02) Diagram

#

Description
Price

1

Dipstick, Oil Fill, Cap

5434349

Unavailable

2

O-RING

5411331

$1.59

3

FILTER-OIL (10 MICRON)

2540086

$11.99

4

Nipple, Oil Filter

2540115

Unavailable

5

ASM., OIL PUMP [SEE OIL PUMP PG. D3 FOR DETAILS]

-------

Unavailable

6

SCREW

7517256

Unavailable

6

SCREW

7517256

Unavailable

7

Sprocket, Oil Pump, 19T

3221082

$35.08

8

WASHER, FLAT

7556054

$10.39

9

SCREW

7517257

$9.59

10

O-Ring

5412002

$1.49

11

Chain, Oil Pump Drive

3221144

Unavailable

12

Tube, Oil, Filter/Crankcase

2540076

Unavailable

13

O-RING

5411231

Unavailable

13

O-RING

5411231

Unavailable

14

Washer, Flat

7556026

$9.59

14

Washer, Flat

7556026

$9.59

15

SCREW

7517406

Unavailable

16

Tube, Oil, Outlet

2540095

$4.08
