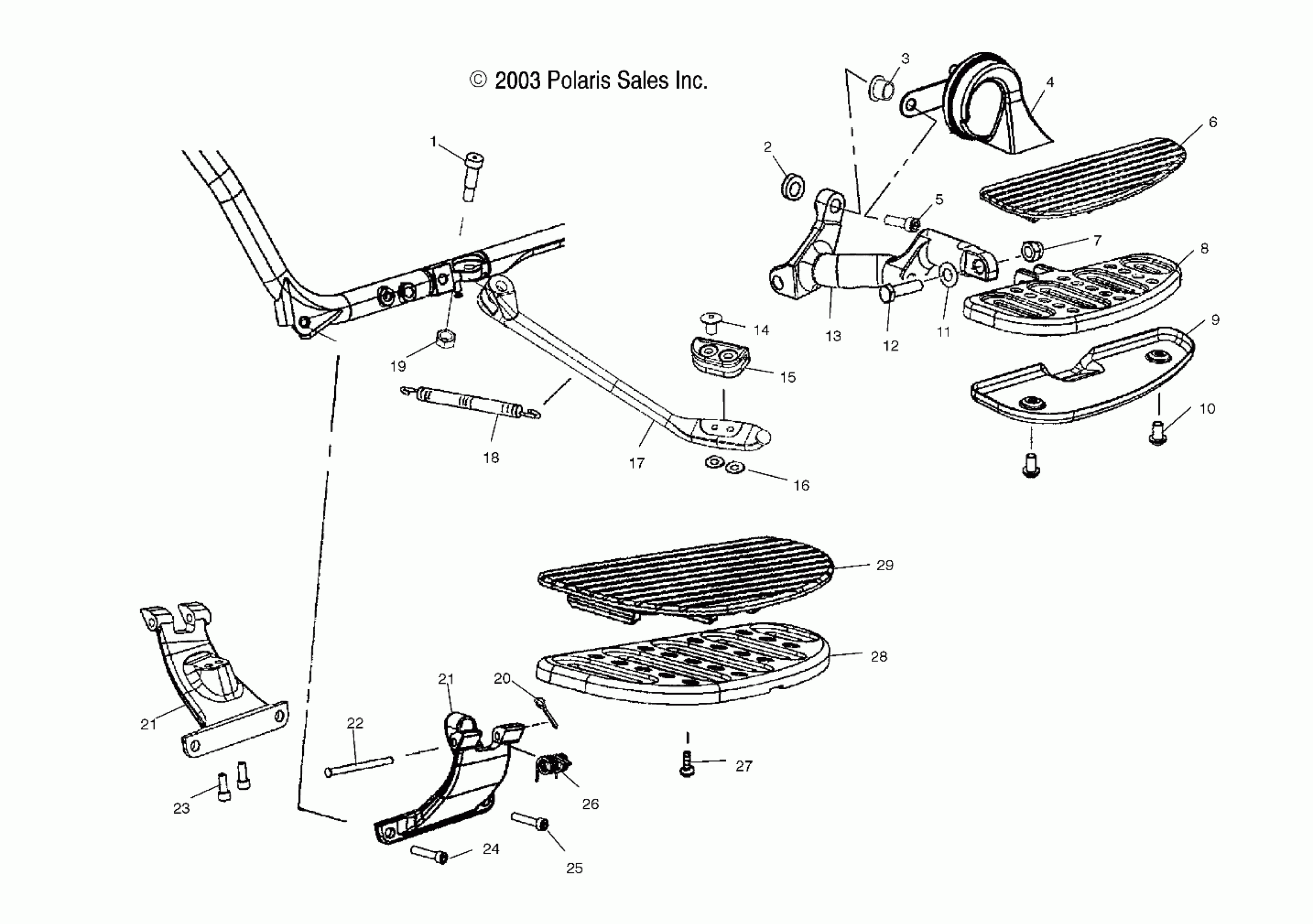

Polaris CA TOURING CRUISER ALL OPTIONS - V04TB16 CHASSIS, FLOOR BOARD and SIDE STAND - V04TB16/ALL OPTIONS (4989528952A06) Diagram

#

Description
Price

1

Screw

7517404

Unavailable

2

Spacer

5133113

Unavailable

3

Spacer

5132658

$3.92

4

Horn, Trumpet

4010688

$86.51

5

Screw

7518123

$3.57

6

Pad, Floorboard, Passenger, LH

5411871

$36.83

6

Pad, Floorboard, Passenger, RH

5411872

$36.03

7

NUT

7547039

Unavailable

8

Floorboard, Passenger, LH

5133098

$112.60

8

Floorboard, Passenger, RH

5133099

$112.60

9

Cover, Floorboard, Passenger, LH

5245624-425

$31.11

9

Cover, Floorboard, Passenger, RH

5245625-425

$30.32

10

SCREW

7517406

Unavailable

11

Washer, Spring

7556046

$4.35

12

SCR-HEXHD,M10X40,0600088

7517993

$4.99

13

Support, Footrest, Passenger, LH

5246161-067

$163.49

13

Support, Footrest, Passenger, RH

5246162-067

$163.49

14

RIVET

7661064

Unavailable

15

Pad, Side Stand

5411745

Unavailable

16

WASHER, FLAT

7556121

$1.49

17

Asm., Side Stand [Incl. 14,15,16]

1013062

Unavailable

18

Spring, Side Stand

7042047

$49.99

19

Nut

7547239

Unavailable

20

PIN, COTTER

7661094

Unavailable

21

Support, Floorboard, LH, Black

5132429-067

Unavailable

21

Support, Floorboard, RH, Black

5132430-067

$216.99

21

Support, Floorboard, LH, Silver

5132429-385

$196.83

21

Support, Floorboard, RH, Silver

5132430-385

$188.10

21

Support, Floorboard, LH, Black

5132429-067

Unavailable

21

Support, Floorboard, RH, Black

5132430-067

$216.99

21

Support, Floorboard, LH, Silver

5132429-385

$196.83

21

Support, Floorboard, RH, Silver

5132430-385

$188.10

22

PIN, FLOORBOARD SUPPORT

7661095

$2.99

23

SCREW

7517410

Unavailable

24

Screw

7518131

$2.62

25

Screw

7518123

$3.57

26

Spring, Floorboard Support

7041623

$27.99

27

Screw, Acorn

7517694

$8.71

28

Floorboard, Driver, LH

5132228

Unavailable

28

Floorboard, Driver, RH

5132229

Unavailable

29

Pad, Floorboard, LH

5412025

$36.83

29

Pad, Floorboard, RH

5412026

$36.83
