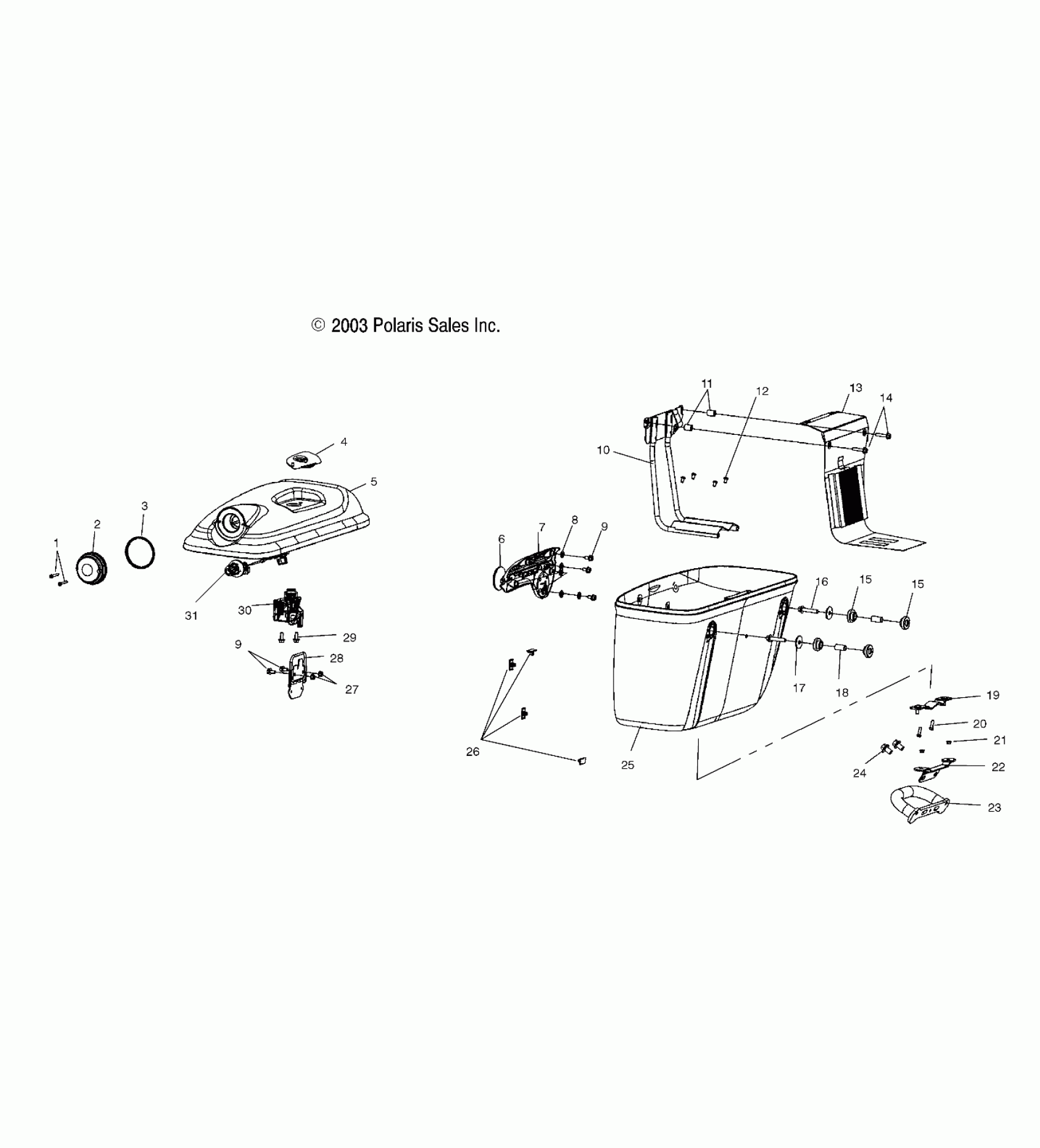

Polaris CA TOURING CRUISER ALL OPTIONS - V04TB16 BODY, SADDLEBAGS - V04TB16/ALL OPTIONS (4989528952B13) Diagram

#

Description
Price

1

Screw

7517895

Unavailable

2

Lens, Turn Signal

5432770

Unavailable

3

Bezel, Turn Signal

5433931

Unavailable

4

Cover, Lock, LH [Black]

5132754-266

Unavailable

4

Cover, Lock, RH [Black]

5132755-266

$119.05

4

Cover, Lock, LH [Blue]

5132754-341

Unavailable

4

Cover, Lock, RH [Blue]

5132755-341

$297.62

4

Cover, Lock, LH [Red]

5132754-342

Unavailable

4

Cover, Lock, RH [Red]

5132755-342

Unavailable

4

Cover, Lock, LH [Green]

5132754-353

Unavailable

4

Cover, Lock, RH [Green]

5132755-353

$123.02

4

Cover, Lock, LH, BZM

5132754-451

$119.05

4

Cover, Lock, RH, BZM

5132755-451

$119.05

4

Cover, Lock, LH, PTD

5132754-381

$123.02

4

Cover, Lock, RH, PTD

5132755-381

$123.02

5

Cover, Side Bag, LH [Black]

5433222-266

$464.99

5

Cover, Side Bag, RH [Black]

5433223-266

Unavailable

5

Cover, Side Bag, LH [Blue]

5433222-341

Unavailable

5

Cover, Side Bag, RH [Blue]

5433223-341

$494.99

5

Cover, Side Bag, LH [Red]

5433222-342

$434.99

5

Cover, Side Bag, RH [Red]

5433223-342

$434.99

5

Cover, Side Bag, LH [Green]

5433222-353

Unavailable

5

Cover, Side Bag, RH [Green]

5433223-353

$414.99

5

Cover, Side Bag, LH [BZM]

5433222-451

$434.99

5

Cover, Side Bag, RH [BZM]

5433223-451

$414.99

5

Cover, Side Bag, LH, PTD

5433222-381

$393.99

5

Cover, Side Bag, RH, PTD

5433223-381

$393.99

5

Cover, Side Bag, LH, Blue/HRF

5433222-1167

$414.99

5

Cover, Side Bag, RH, Blue/HRF

5433223-1167

Unavailable

5

Cover, Side Bag, LH, PTD/SF

5433222-1184

Unavailable

5

Cover, Side Bag, RH, PTD/SF

5433223-1184

$414.99

6

Reflector, Round, Red

5433921

$32.37

7

Asm., Hinge, LH

2632149

$434.99

7

Asm., Hinge, RH

2632150

$434.99

8

Washer, Rubber

5812197

Unavailable

9

SCREW

7517704

$7.84

9

SCREW

7517704

$7.84

10

Support, Inner, Left

1013140-067

$130.95

10

Support, Inner, Right

1013248-067

$147.62

11

Spacer, Strap

5132855

$4.76

12

Screw

7517690

$2.60

13

Asm., Strap, Hinge, LH

2682989

$93.32

13

Asm., Strap, Hinge, RH

2682563

$88.56

14

SCREW

7518003

$4.76

15

Pad, Bag Mount, Inner

5812112

$2.62

15

Pad, Bag Mount, Inner

5812112

$2.62

16

SCREW

7517881

$1.98

17

Washer, Flat

7556219

$6.35

18

Sleeve, Bag Mount

5245211

Unavailable

19

Mount, Bag, Lower

1014073

$65.87

20

Screw

7517690

$2.60

21

Bushing, Bag Mount, Lower

5434810

$1.98

22

Bracket, Muffler/Bag Mount

5246725

Unavailable

23

Bar, Highway, Rear

1013621

$172.22

24

SCREW

7517951

$5.56

25

Bag, Side, LH [Sonic Blue]

5433186-341

$679.99

25

Bag, Side, RH [Sonic Blue]

5433187-341

$679.99

25

Bag, Side, LH [Red]

5433186-342

$649.99

25

Bag, Side, RH [Red]

5433187-342

$649.99

25

Bag, Side, LH, Black

5433186-266

$714.99

25

Bag, Side, RH, Black

5433187-266

Unavailable

25

Bag, Side, LH [Green/Champagne]

5433186A25

Unavailable

25

Bag, Side, LH [Green/Champagne]

5433187A25

Unavailable

25

Bag, Side, LH, CB/BZM

5433186-1163

Unavailable

25

Bag, Side, RH, CB/BZM

5433187-1163

$619.99

25

Bag, Side, LH, BZM/PWH

5433186-1164

$649.99

25

Bag, Side, RH, BZM/PWH

5433187-1164

Unavailable

25

Bag, Side, LH, Blue/Hod Rod Flame

5433186-1167

Unavailable

25

Bag, Side, RH, Blue/Hod Rod Flame

5433187-1167

Unavailable

25

Bag, Side, LH, PTD/Silver/Flame

5433186-1184

Unavailable

25

Bag, Side, LH, PTD/Silver/Flame

5433187-1184

$567.63

26

Clip, Wire

7670138

$4.21

27

Nut

7710495

$5.22

28

Latch, Lid

1013142-067

$31.11

29

Screw

7517770

$2.38

30

Lock, Saddlebag

7080915

Unavailable

31

Asm., Turn Signal, Rear

2410264

$135.30

31

Bulb, Turn Signal, Rear

4010517

$11.51
