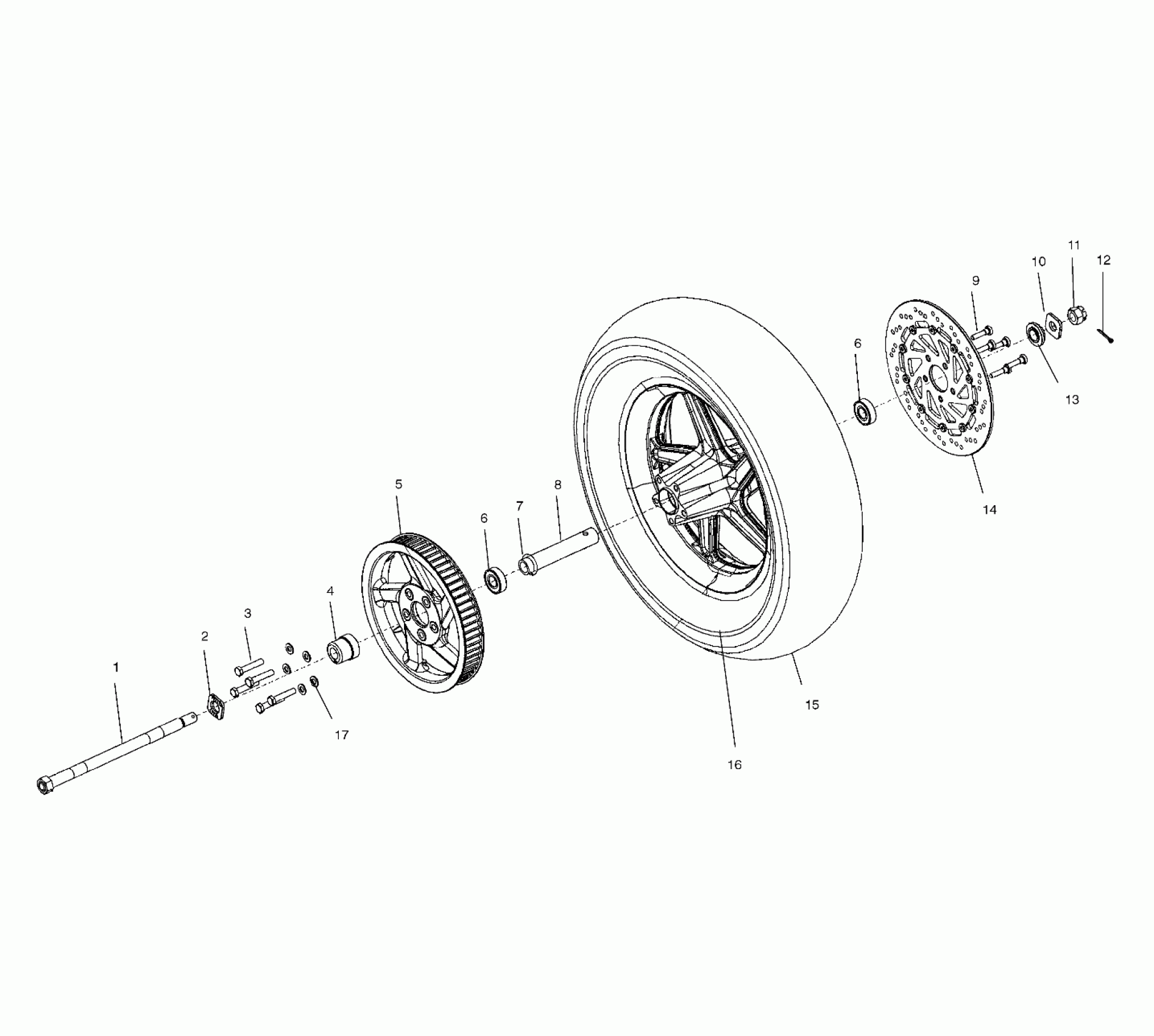

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 WHEELS, REAR (CAST) - V03TB16/ALL OPTIONS (4983668366B01) Diagram

#

Description
Price

1

Axle, Rear

1013184

$125.40

2

Washer, Indicator, Axle, RH, ZNB

5245088-408

$13.60

3

Screw

7518044

$6.19

4

Spacer, Rear Wheel, RH

5132624

Unavailable

5

Sprocket, Driven, 64T, Silver

1341378

$414.99

6

Bearing, Ball

3513509

Unavailable

6

Bearing, Ball

3513509

Unavailable

7

O-Ring

5411820

Unavailable

8

Spacer, Bearing, Middle

5132314

Unavailable

9

Screw

7517978

$33.79

10

Washer, Indicator, Axle, ZNB [LH]

5245087-408

$12.65

11

Nut

7547009

$4.62

12

Pin, Cotter

7663003

$3.81

13

Spacer, Axle, Rear, LH

5010429

$22.51

14

Rotor, Brake, Floating, Rear, 6mm

1910498

Unavailable

15

Tire, Rear [16x3.5]

5411970

$354.99

16

Weight, Balance, 1/4 oz.

1520618

Unavailable

16

Valve, Rim

1520232

$3.17

16

Wheel, Rear

5132635

Unavailable

17

WASHER, FLAT

7556234

$3.19
