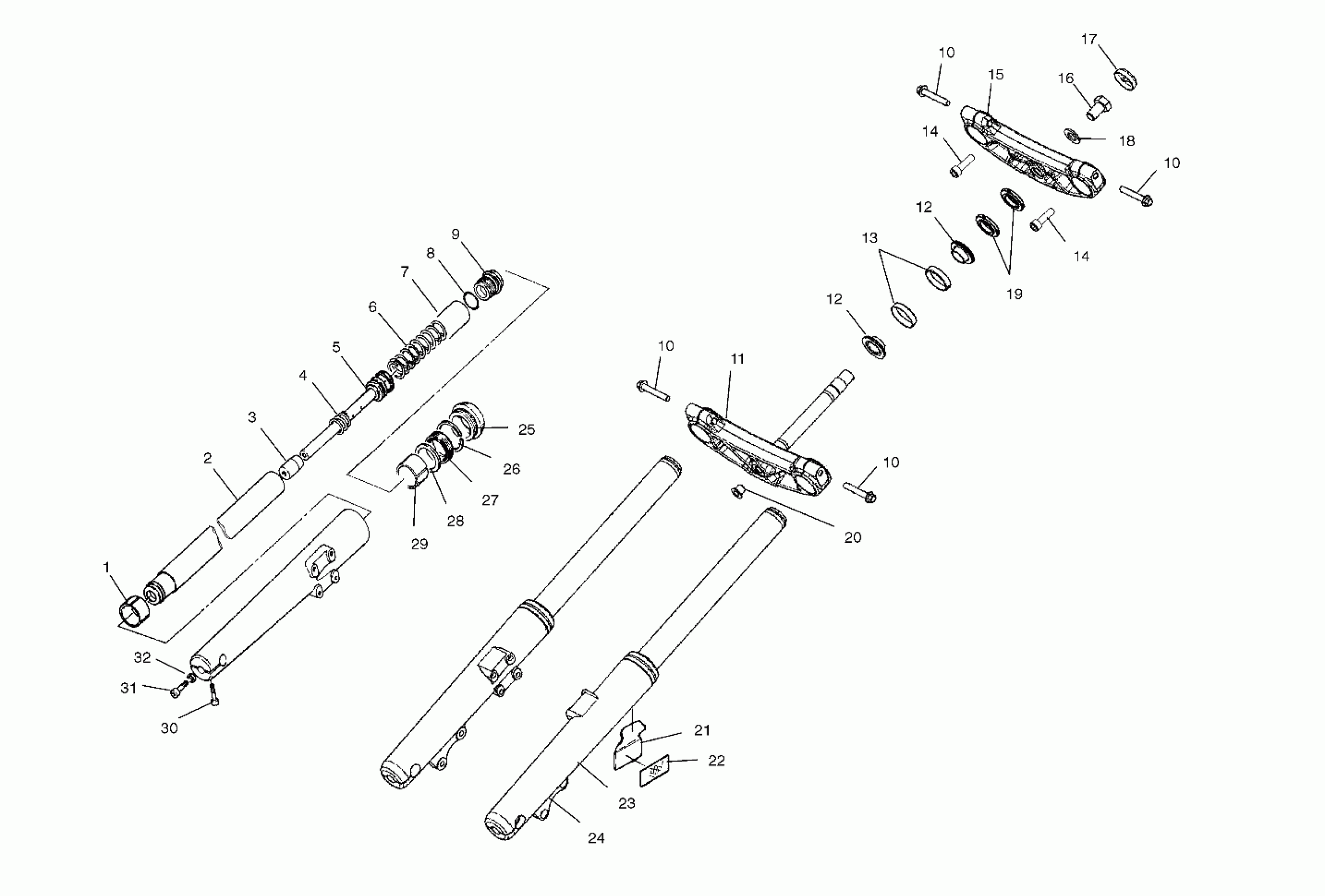

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 SUSPENSION, FRONT FORKS - V03TB16/ALL OPTIONS (4983668366A10) Diagram

#

Description
Price

-

Oil, Fork

2872184

Unavailable

-

Asm., Fork Leg, LH [Incl. 1-9,23-32]

1820753

$409.99

-

Asm., Fork Leg, RH [Incl. 1-9,23-32]

1820848

$409.99

1

Bushing, Lower

3585714

$27.78

2

Tube, Stanchion

5133282

$569.99

3

Foot, Buffer

5131498

Unavailable

4

Spring, Rebound

7041624

$10.63

5

Kit, Damper Rod/Segment

2202093

$41.27

5

Rod, Damper

1500171

$5.71

6

Spring, Compression

7042026

$96.03

7

Spacer, Preload

5521585

$14.68

8

O-Ring

5411330

$2.14

9

Plug, Fork

5131502

$65.48

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

10

Screw

7517944

Unavailable

11

Clamp, Triple, Lower

1820926

Unavailable

12

Bearing, Tapered, Sealed

3554510

Unavailable

12

Bearing, Tapered, Sealed

3554510

Unavailable

13

Bearing, Tapered Roller Cup

3554507

$31.75

14

Screw

7517586

$3.02

14

Screw

7517586

$3.02

15

Clamp, Triple, Upper

5132629

$212.70

16

Bolt, Steering Post Cap

5133050

$22.62

17

Cap, Steering Post

1013570

$48.39

18

Washer, Flat

7556187

Unavailable

19

Nut, Steering Post

5133049

Unavailable

20

Plug

5412121

Unavailable

21

Base, Reflector, LH

5433864

$15.56

21

Base, Reflector, RH

5433748

$13.89

22

Reflector

5433878

$5.71

23

Kit, Slider Unit, Silver, LH [Incl. 26-29]

2202092

$514.99

24

Kit, Slider Unit, Silver, RH [Incl. 26-29]

2202091

$514.99

25

Cap, Dust

5133283

$56.65

25

Seal, Dust Cap

3610086

$31.75

26

Ring, Stop

5211827

$15.37

27

Seal, Oil

3610068

Unavailable

28

Cap, Oil Seal

5131504

$20.22

29

Bushing, Upper

3585715

$43.65

30

Screw

1500168

Unavailable

31

Screw

1500169

$4.21

32

Washer, Oil Seal

3610069

$23.81
