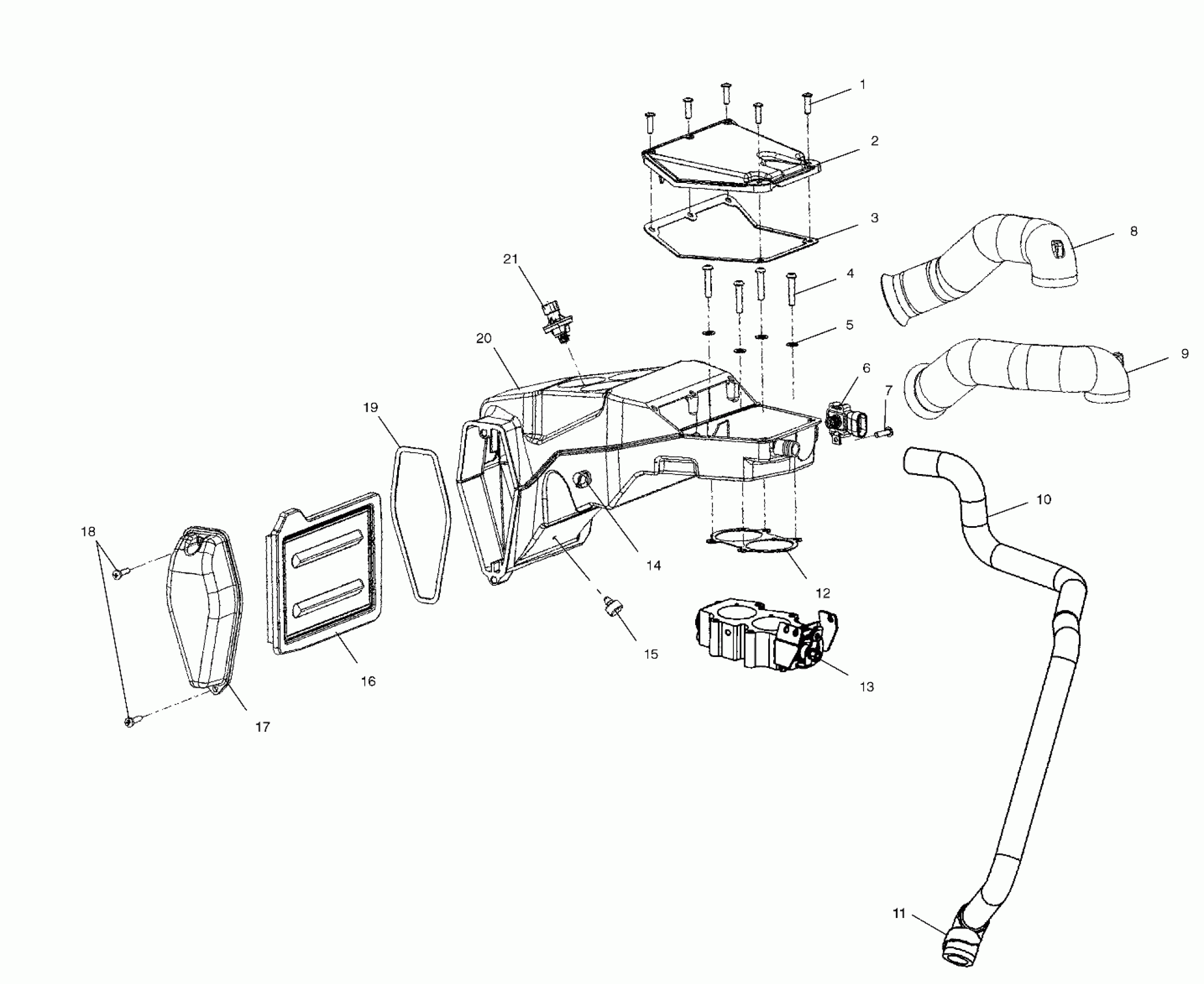

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 ENGINE, AIR BOX - V03TB16/ALL OPTIONS (4983668366C06) Diagram

Description

Price

Screw

7517842

$3.48

Cover, Airbox

5433466

$44.99

Seal, Airbox Cover

5811867

Unavailable

Screw, Button Head

7517885

Unavailable

WASHER, FLAT

7556121

$1.49

SENSOR, MAP [SEE ELECTRICAL PG. C1, REF. 10]

-------

Unavailable

Screw

7517842

$3.48

Tube, Intake, RH

5433471

$25.40

Tube, Intake, LH

5433470

$36.41

Hose, Breather

5434070

Unavailable

CLAMP, BREATHER HOSE

7080782

Unavailable

Gasket, Airbox

5811908

$9.52

ASM., THROTTLE BODY [SEE FUEL SYSTEM PG. D8, REF. 23]

-------

Unavailable

Clip, Retainer

5432302

Unavailable

Bumper, Rubber

5811869

$4.35

Filter, Air

7080858

$21.81

Cover, Air Filter

5433469

Unavailable

Screw

7517816

Unavailable

Seal, Filter, Access Hatch

5811866

$11.51

Airbox

1013720

$113.32

SENSOR, AIR TEMPERATURE [SEE ELECTRICAL PG. C1, REF. 6]

-------

Unavailable
