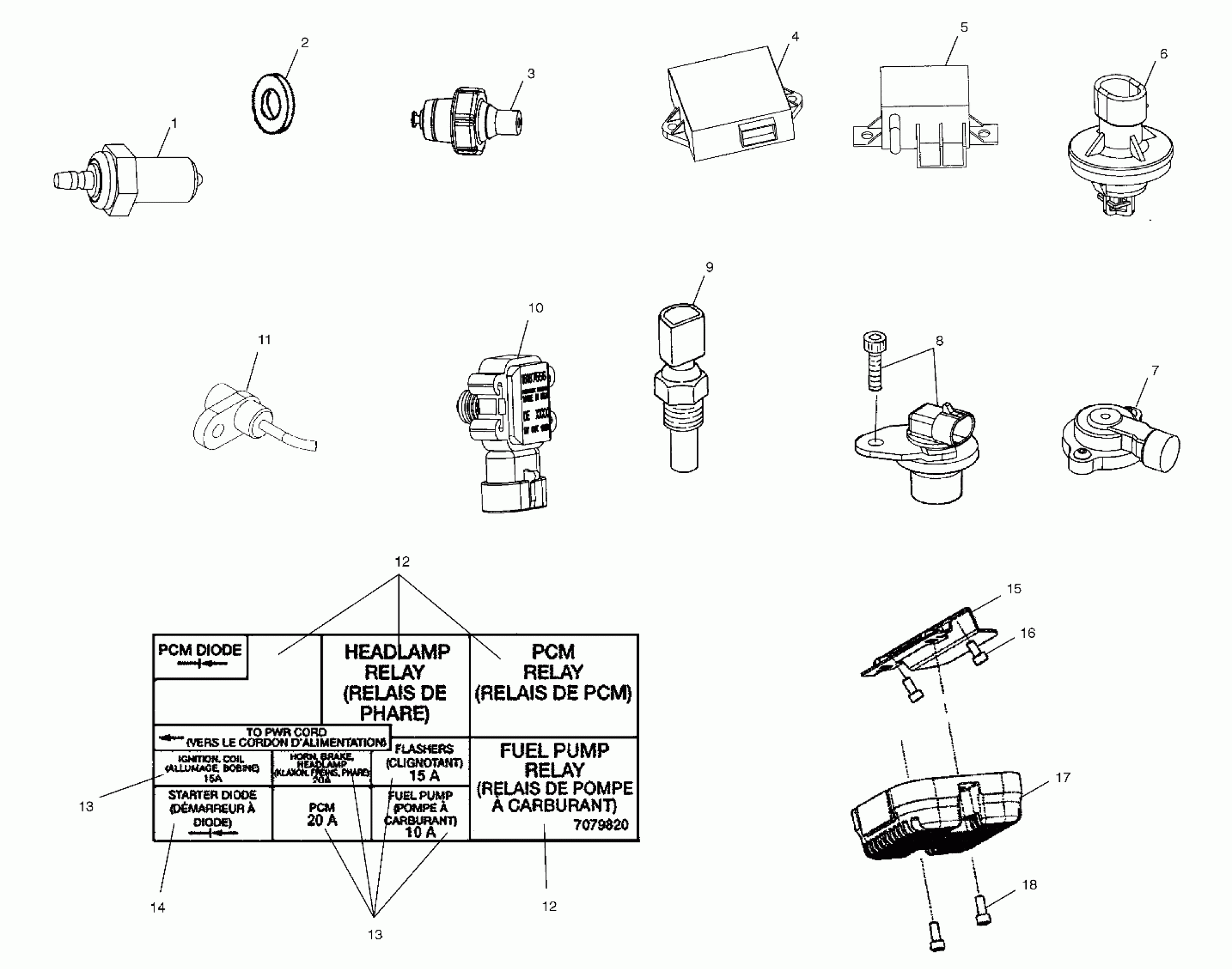

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 ELECTRICAL, HARNESSES, SENSORS and SWITCHES - V03TB16/ALL OPTIONS (4983668366C01) Diagram

#

Description
Price

-

CLIP, ELECTRICAL

7080737

Unavailable

-

Connector, Fender

4010153

$13.89

-

Lock, Connector

4010154

$1.35

-

Harness, Driving Lights

2460956

$61.90

-

Decal, Fuse Box

7079820

Unavailable

-

Clip, Wire Harness

7080930

$2.22

-

Harness, Jumper (Parking Lamp)

2461130

$15.16

-

Harness, Rear

2460954

$90.48

-

Harness, Jumper, Fuel Injector

2461135

Unavailable

-

Harness, Main Wire

2461101

$639.99

1

Switch, Neutral Indicator

4110235

Unavailable

2

Washer, Flat

7556154

$2.87

3

Sensor, Oil Pressure

4010649

Unavailable

4

Flasher, Turn Signal, Hazard

2410101

Unavailable

5

Relay

2410181

Unavailable

6

Sensor, Air Temperature

4040077

Unavailable

7

Sensor, Throttle Position

4010225

Unavailable

7

O-Ring

1500201

$2.87

8

SCREW

7517272

$7.19

8

Sensor, Crankshaft Position

4110217

Unavailable

9

Sensor, Engine Temperature

4040076

Unavailable

10

Sensor, MAP

4040078

Unavailable

11

Sensor, Vehicle Speed

4010766

$183.95

12

Relay, Micro

2410314

Unavailable

12

Relay, Micro

2410314

Unavailable

13

FUSE-PARK,20 AMP

2434017

Unavailable

13

FUSE-IGNITION,10 AMP

2434016

$4.79

13

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

13

FUSE-PARK,20 AMP

2434017

Unavailable

13

FUSE-IGNITION,10 AMP

2434016

$4.79

13

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

14

DIODE-STARTER CIRCUIT

2434019

$13.95

15

Bracket, Voltage Regulator [Black]

1013510

$27.94

15

Bracket, Voltage Regulator, Silver

1013623

$41.27

16

Screw

7517739

$9.59

17

Regulator, Voltage [Black]

2410337

Unavailable

17

Regulator, Voltage, Silver

2410329

$236.99

18

SCREW

7517272

$7.19
