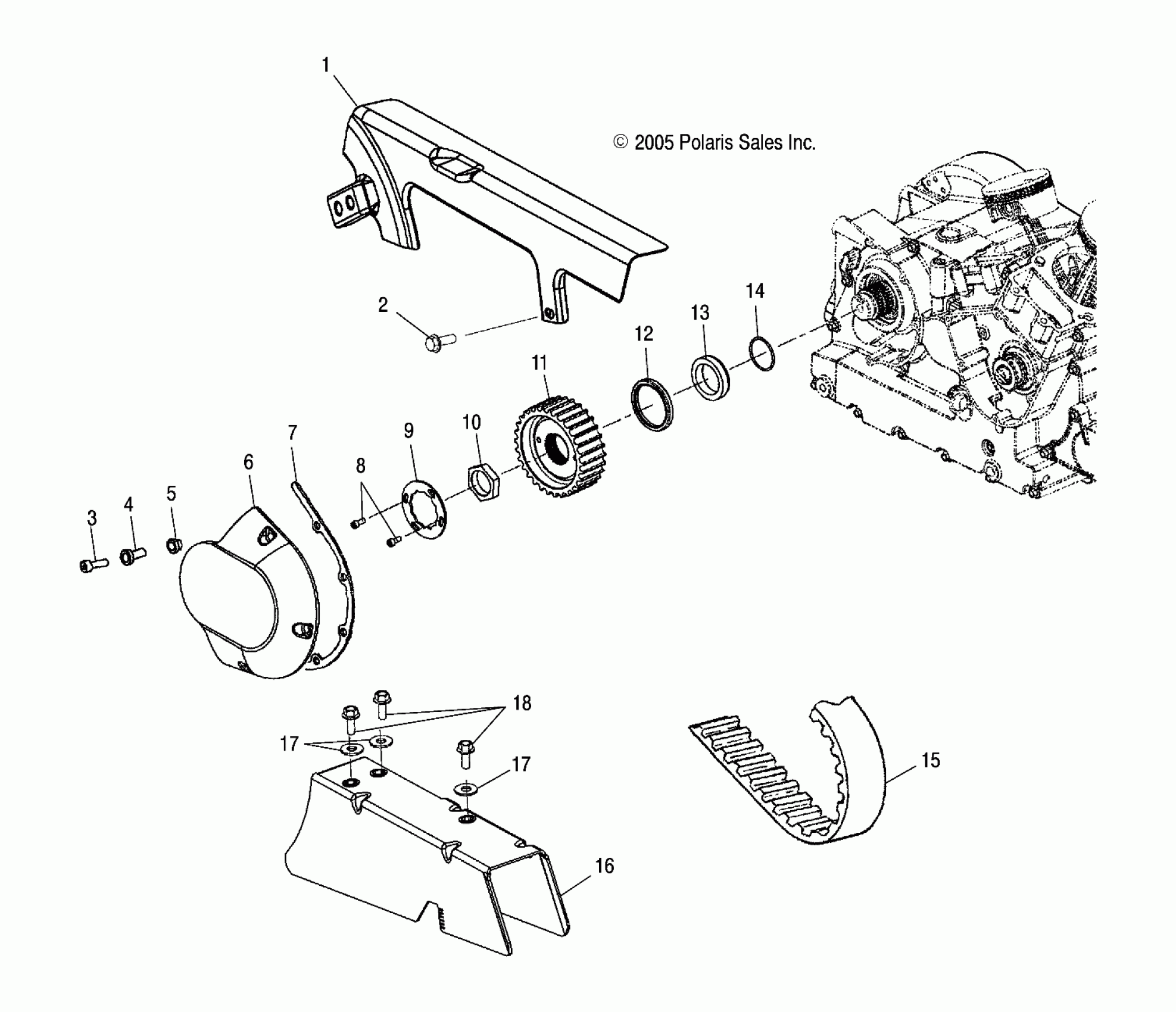

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 DRIVE TRAIN, FRONT DRIVE SPROCKET - V03TB16/ALL OPTIONS (4999203439920343C06) Diagram

#

Description
Price

1

Guard, Belt, Upper

1013486

$82.99

2

SCREW

7518043

Unavailable

3

SCREW

7517301

$2.39

4

Spacer

7661156

Unavailable

5

ISOLATOR

5412070

Unavailable

6

Cover, Sprocket

5133266

$236.99

7

Gasket, Sprocket Cover

5412260

$7.38

8

SCREW

7517272

$7.19

9

WASHER, LOCK PLATE

5244114

Unavailable

10

Nut

7547209

Unavailable

11

Sprocket, Drive, 30T

5133262

Unavailable

12

Seal

3610057

$27.78

13

Sleeve, Seal

5133394

Unavailable

14

O-Ring

3610091

$2.46

15

Belt, Drive

3211088

Unavailable

16

Asm., Guard, Belt, Lower

1013734

$73.81

17

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

17

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

18

Screw

7517770

$2.39
