CHASSIS, MAIN FRAME - V03TB16/ALL OPTIONS (4999203439920343A03)

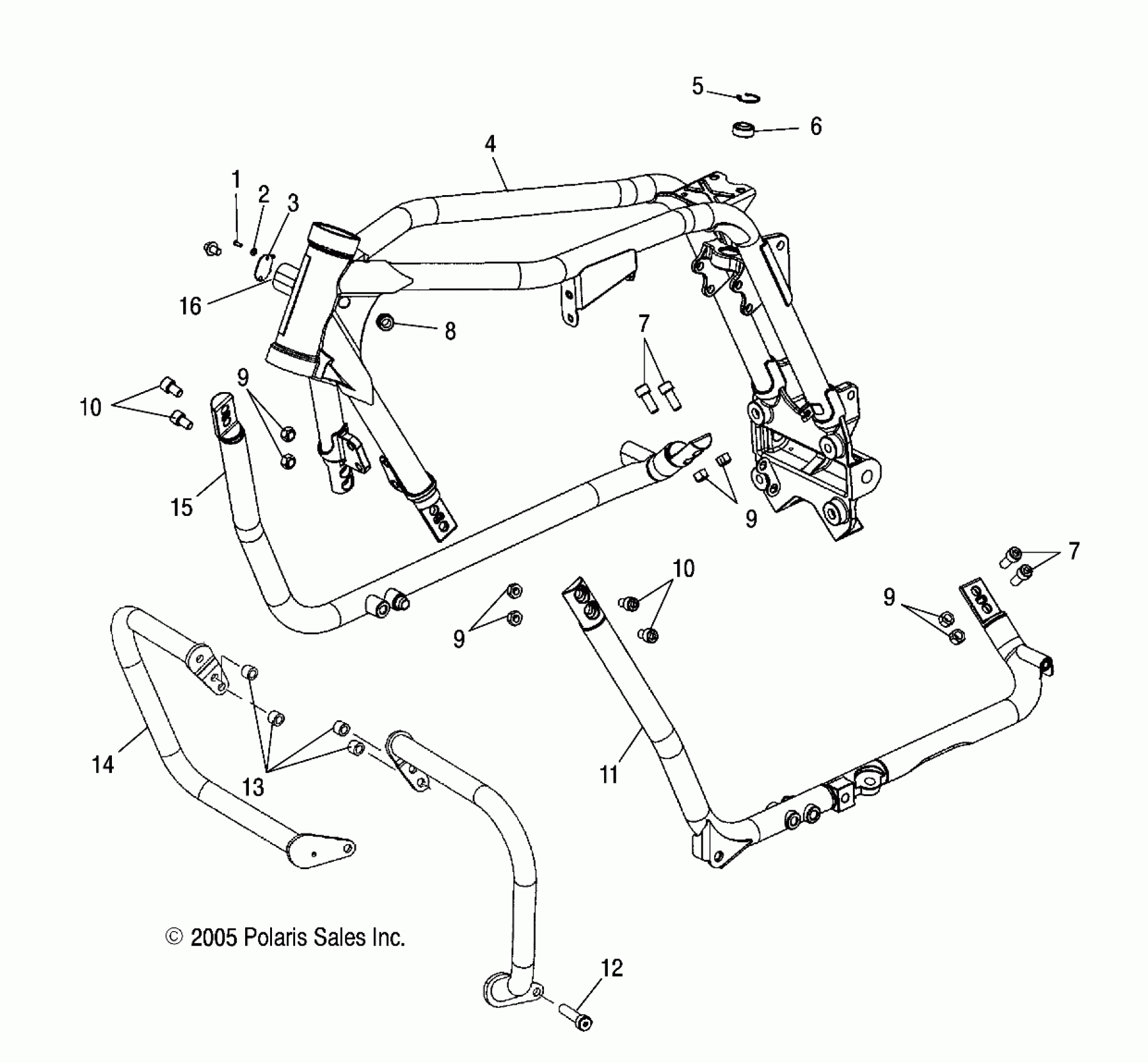

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 CHASSIS, MAIN FRAME - V03TB16/ALL OPTIONS (4999203439920343A03) Diagram
#
Description
Price
1
Pin, Knurled
7661027
$3.30
2
Washer, Wave
7571637
$0.69
3
Cap, Fork Lock
5242202
$14.76
4
Frame, Main, Black
1013490-067
Unavailable
4
Frame, Main, Silver
1013490-385
Unavailable
5
Ring, Retaining
7710446
$6.23
6
Bearing, Spherical
3513506
$64.59
7
Screw
7518123
$3.57
7
Screw
7518123
$3.57
8
Grommet, Head Casting
5411472
$5.79
9
Nut [Black]
7547039
Unavailable
9
Nut [Silver]
7547239
Unavailable
9
Nut [Black]
7547039
Unavailable
9
Nut [Silver]
7547239
Unavailable
9
Nut [Black]
7547039
Unavailable
9
Nut [Silver]
7547239
Unavailable
9
Nut [Black]
7547039
Unavailable
9
Nut [Silver]
7547239
Unavailable
10
SCR-SH-M10X1.5X45 12.9 SPC
7518122
Unavailable
10
SCR-SH-M10X1.5X45 12.9 SPC
7518122
Unavailable
11
Tube, Frame, Lower, LH [Black]
1014011-067
$299.98
11
Tube, Frame, Lower, Silver, LH
1014011-385
$314.27
12
Screw
7518131
$2.62
13
Spacer
5132658
$3.92
14
Bar, Highway, LH
1014051
Unavailable
14
Bar, Highway, RH
1014052
$294.99
15
Tube, Axle, Black, RH
1013482-067
$385.70
15
Tube, Axle, Silver, RH
1013482-385
$338.08
16
LOCK, FRONT FORK [SEE IGNITION ASM. PG., REF. 5]
-------
Unavailable
