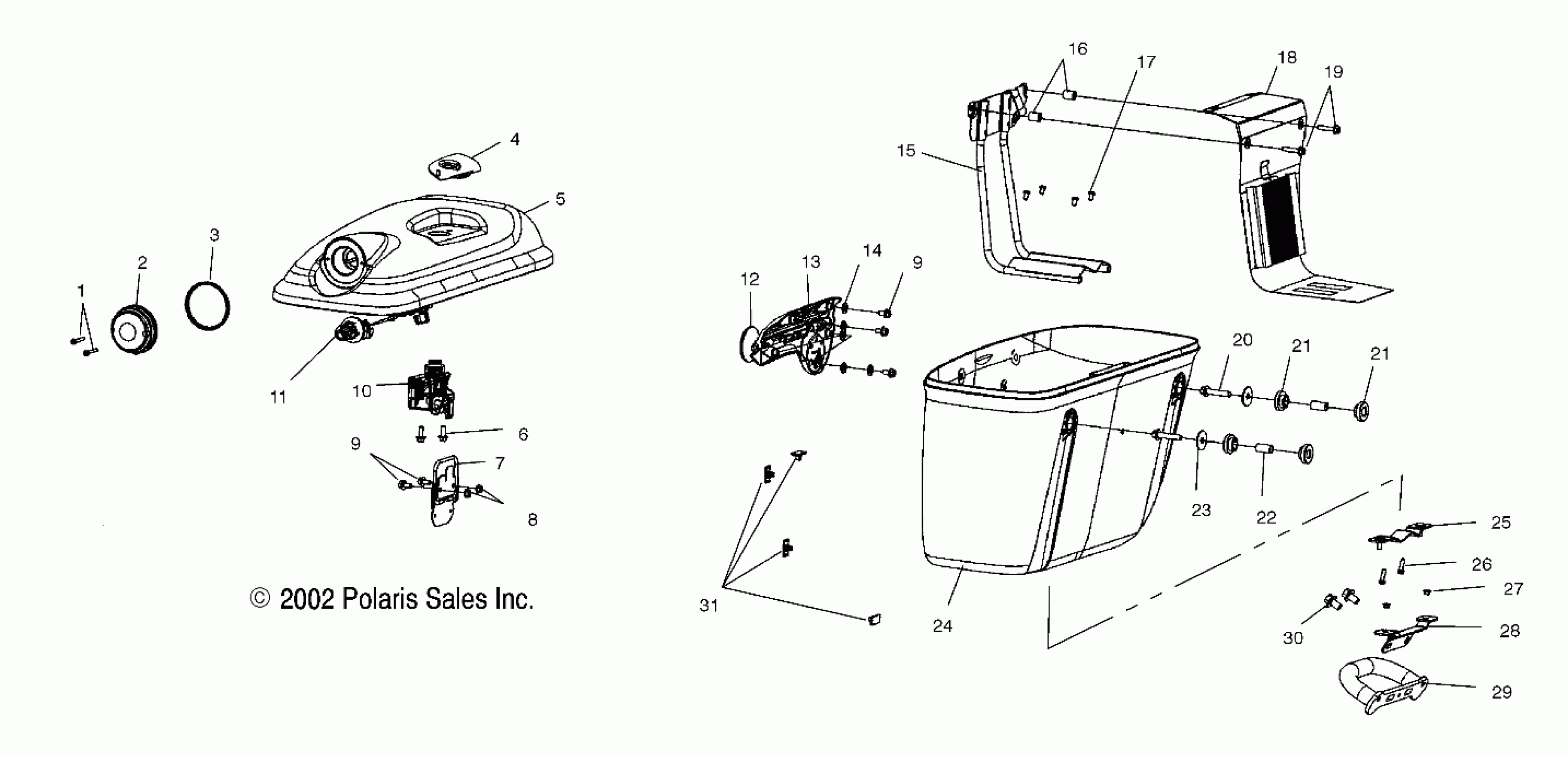

Polaris CA TOURING CRUISER ALL OPTIONS - V03TB16 BODY, SADDLEBAGS - V03TB16/ALL OPTIONS (4983668366B14) Diagram

#

Description
Price

1

Screw

7517895

Unavailable

2

Lens, Turn Signal

5432770

Unavailable

3

Bezel, Turn Signal

5433931

Unavailable

4

Cover, Lock, LH [Black]

5132754-266

Unavailable

4

Cover, Lock, RH [Black]

5132755-266

$119.05

4

Cover, Lock, LH [Blue]

5132754-341

Unavailable

4

Cover, Lock, RH [Blue]

5132755-341

$297.62

4

Cover, Lock, LH [Red]

5132754-342

Unavailable

4

Cover, Lock, RH [Red]

5132755-342

Unavailable

4

Cover, Lock, LH [Green]

5132754-353

Unavailable

4

Cover, Lock, RH [Green]

5132755-353

$123.02

4

Cover, Lock, LH (Turquoise)

5132754-389

$123.02

4

Cover, Lock, RH (Turquoise)

5132755-389

Unavailable

5

Cover, Side Bag, LH [Black]

5433222-266

$464.99

5

Cover, Side Bag, RH [Black]

5433223-266

Unavailable

5

Cover, Side Bag, LH [Blue]

5433222-341

Unavailable

5

Cover, Side Bag, RH [Blue]

5433223-341

$494.99

5

Cover, Side Bag, LH [Red]

5433222-342

$434.99

5

Cover, Side Bag, RH [Red]

5433223-342

$434.99

5

Cover, Side Bag, LH [Green]

5433222-353

Unavailable

5

Cover, Side Bag, RH [Green]

5433223-353

$414.99

5

Cover, Side Bag, LH (Turquoise)

5433222-389

$434.99

5

Cover, Side Bag, RH (Turquoise)

5433223-389

Unavailable

6

Screw

7517770

$2.38

7

Latch

1013142-067

$31.11

8

Nut, Flange

7710495

$5.22

9

SCREW

7517704

$7.84

9

SCREW

7517704

$7.84

10

Lock, Saddlebag

7080915

Unavailable

11

Asm., Turn Signal, Rear

2410264

$135.30

11

Bulb, Turn Signal, Rear

4010517

$11.51

12

Reflector, Round, Red

5433921

$32.37

13

Asm., Hinge, LH

2632149

$434.99

13

Asm., Hinge, RH

2632150

$434.99

14

Washer, Rubber

5812197

Unavailable

15

Support, Inner, Left

1013140-067

$130.95

15

Support, Inner, Right

1013248-067

$147.62

16

Spacer, Strap

5132855

$4.76

17

Screw

7517690

$2.60

18

Strap, Hinge, LH

2682989

$93.32

18

Strap, Hinge, RH

2682563

$88.56

19

SCREW

7518003

$4.76

20

SCREW

7517881

$1.98

21

Pad, Bag Mount, Inner

5812112

$2.62

21

Pad, Bag Mount, Inner

5812112

$2.62

22

Sleeve, Bag Mount

5245211

Unavailable

23

Washer, Flat

7556219

$6.35

24

Bag, Side, LH [Sonic Blue]

5433186-341

$679.99

24

Bag, Side, RH [Sonic Blue]

5433187-341

$679.99

24

Bag, Side, LH [Red]

5433186-342

$649.99

24

Bag, Side, RH [Red]

5433187-342

$649.99

24

Bag, Side, LH, Black

5433186-266

$714.99

24

Bag, Side, RH, Black

5433187-266

Unavailable

24

Bag, Side, LH [Black/Silver]

5433186A22

Unavailable

24

Bag, Side, RH [Black/Silver]

5433187A22

$619.99

24

Bag, Side, LH [Blue/Champagne]

5433186A23

Unavailable

24

Bag, Side, RH [Blue/Champagne]

5433187A23

$619.99

24

Bag, Side, LH, [Red/Champagne]

5433186A24

Unavailable

24

Bag, Side, RH [Red/Champagne]

5433187A24

$649.99

24

Bag, Side, LH [Green/Champagne]

5433186A25

Unavailable

24

Bag, Side, RH [Green/Champagne]

5433187A25

Unavailable

24

Bag, Side, LH [Turquoise/White]

5433186A26

$567.63

24

Bag, Side, RH [Turquoise/White]

5433187A26

Unavailable

25

Mount, Bag, Lower

1014073

$65.87

26

Screw

7517690

$2.60

27

Bushing, Bag Mount, Lower

5434810

$1.98

28

Bracket, Muffler/Bag Mount

5246725

Unavailable

29

Bar, Highway, Rear

1013621

$172.22

30

SCREW

7517951

$5.56

31

Clip, Wire

7670138

$4.21
