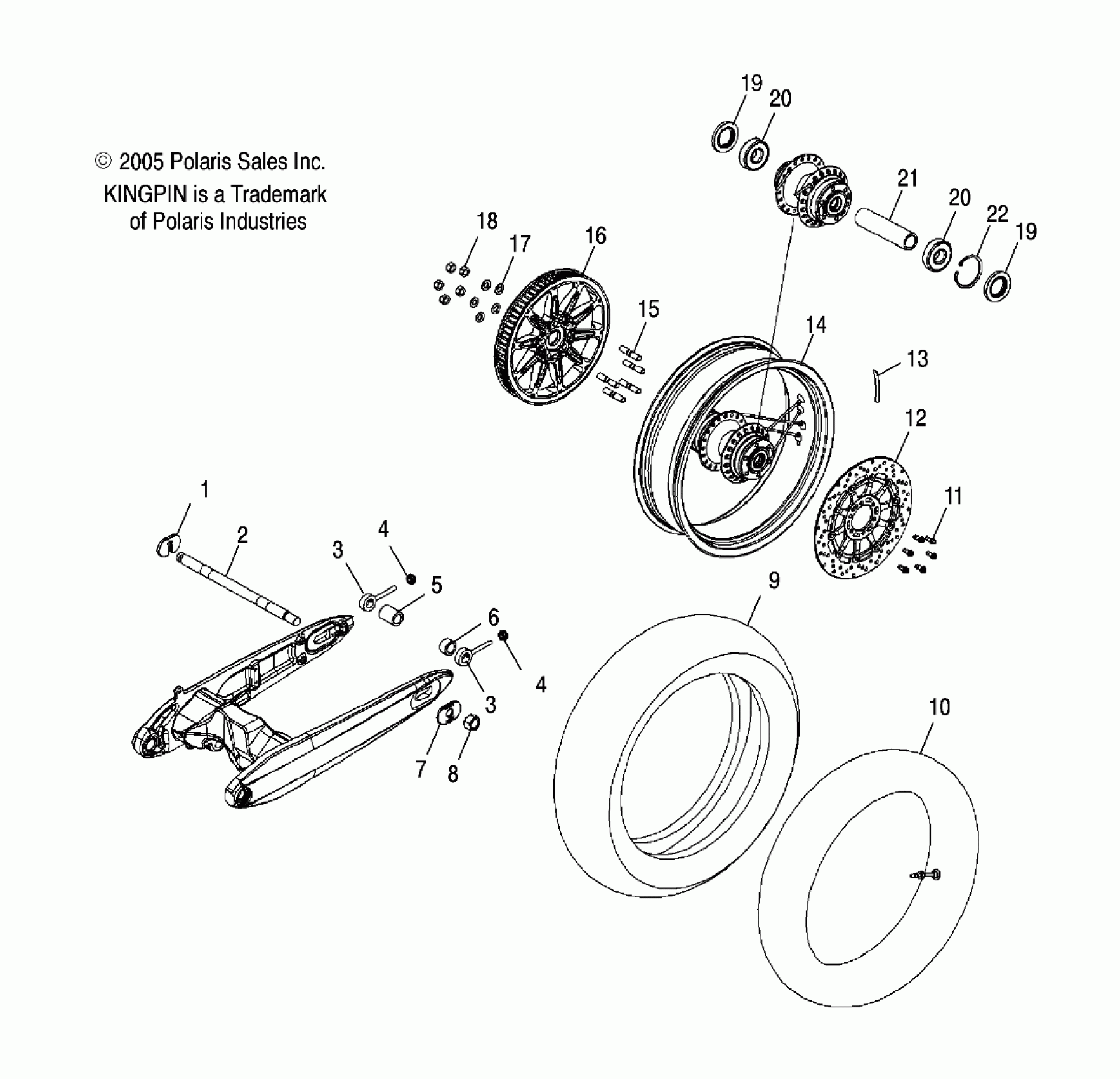

Polaris CA KINGPIN ALL OPTIONS - V06CB26 WHEELS, REAR (SPOKED) - V06CB26 ALL OPTIONS (4999203389920338B02) Diagram

#

Description
Price

1

RETAINER, AXLE, REAR

5248599

Unavailable

2

AXLE, REAR

5135743

$67.46

3

ADJUSTER, AXLE

1014895

$36.41

3

ADJUSTER, AXLE

1014895

$36.41

4

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

4

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

5

SPACER, WHEEL, REAR, RH

5631581

$11.99

6

SPACER, BEARING, LH

5631479

$3.97

7

WASHER, INDICATOR, AXLE

5248452-236

$27.78

8

Nut, Hex, Fujilok

7547226

$23.81

9

Tire, Rear

5412373

$319.99

10

Tube, Tire, Inner

1821398

$46.84

11

Screw

7518297

$5.56

12

Rotor, Brake

1910623

$349.99

13

Weight, Balance

1520618

Unavailable

14

Nipple, Spoke

5132870

Unavailable

14

Flap, Rim

5812234

Unavailable

14

Spoke, Outer

5334021

Unavailable

14

Spoke, Inner

5334023

Unavailable

14

Asm., Wheel [Incl. 19-13]

1520813

Unavailable

14

Rim

5133870

Unavailable

15

Stud

7518311

Unavailable

16

Asm., Sprocket, Driven, 70T, Silver

1332399-385

Unavailable

17

WASHER, FLAT

7556287

$7.14

18

NUT

7547232

$23.81

19

SEAL

3610094

$31.75

19

SEAL

3610094

$31.75

20

BEARING, BALL

3514405

$19.84

20

BEARING, BALL

3514405

$19.84

21

Spacer, Bearing

5334138

$61.89

22

Ring, Retaining

7710526

$10.32
