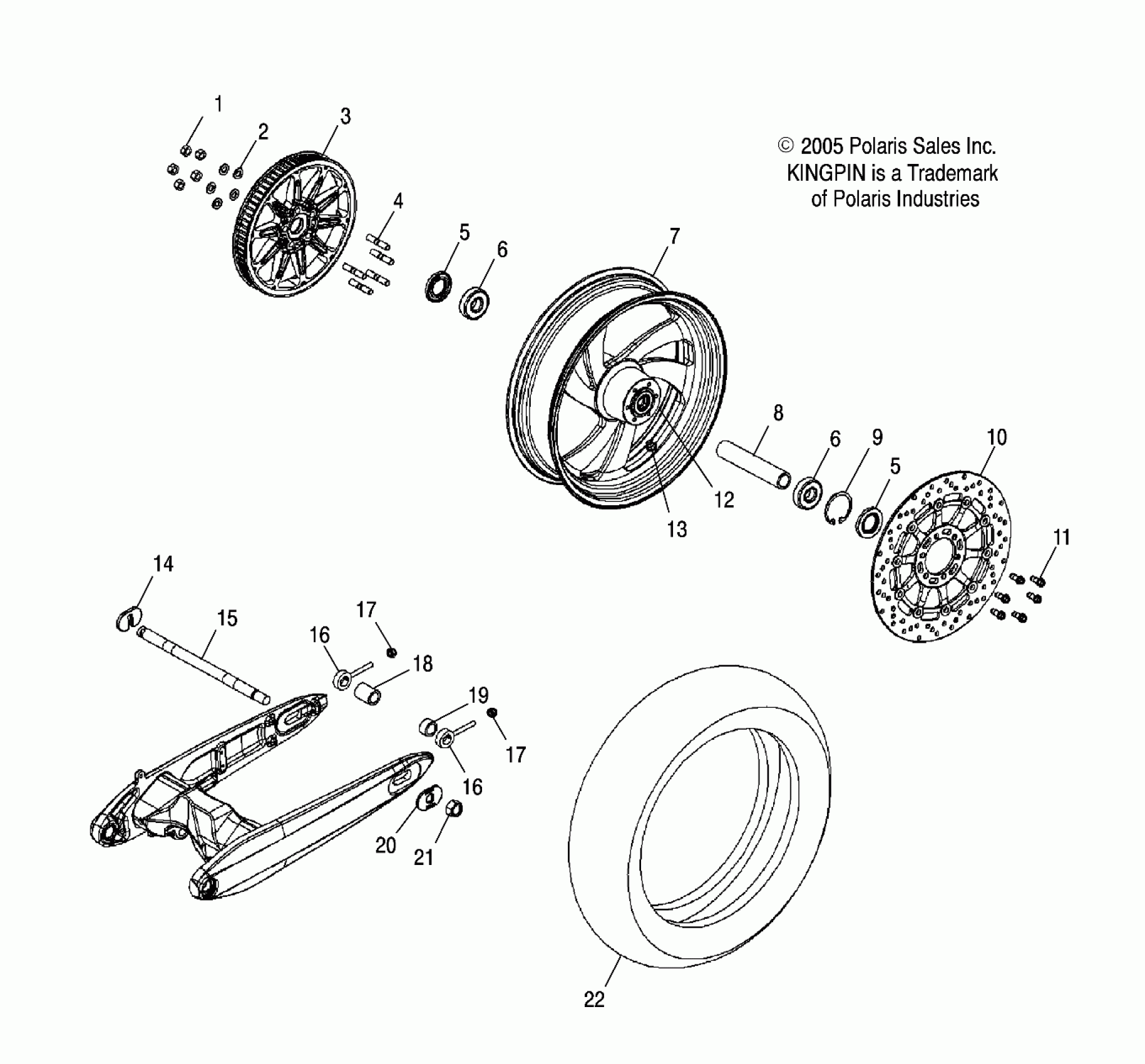

Polaris CA KINGPIN ALL OPTIONS - V06CB26 WHEELS, REAR (CAST) - V06CB26 ALL OPTIONS (4999203389920338B04) Diagram

#

Description
Price

1

NUT

7547232

$23.99

2

WASHER, FLAT

7556287

$7.19

3

Asm., Sprocket, Driver, 70T, Silver

1332399-385

Unavailable

4

Screw

7518311

Unavailable

5

SEAL

3610094

Unavailable

5

SEAL

3610094

Unavailable

6

BEARING, BALL

3514405

Unavailable

6

BEARING, BALL

3514405

Unavailable

7

Asm., Wheel, Cast, Rear [Incl. 5-9,12,13]

1520820

$989.99

8

Spacer

5334138

Unavailable

9

Ring, Retaining

7710526

Unavailable

10

Rotor, Brake, Floating

1910623

Unavailable

11

Screw

7518297

Unavailable

12

Weight, Balance

1520618

Unavailable

13

Valve, Rim

1520232

$3.17

14

RETAINER, AXLE, REAR

5248599

Unavailable

15

Axle, Rear

5134738

Unavailable

16

Adjuster, Axle,

1014895

Unavailable

16

Adjuster, Axle,

1014895

Unavailable

17

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

17

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

18

Spacer, RH

5631480

$5.79

19

SPACER, BEARING, LH

5631479

Unavailable

20

WASHER, INDICATOR, AXLE

5248452-236

Unavailable

21

NUT, HEX

7547226

$23.81

22

Tire, Rear

5412373

Unavailable
