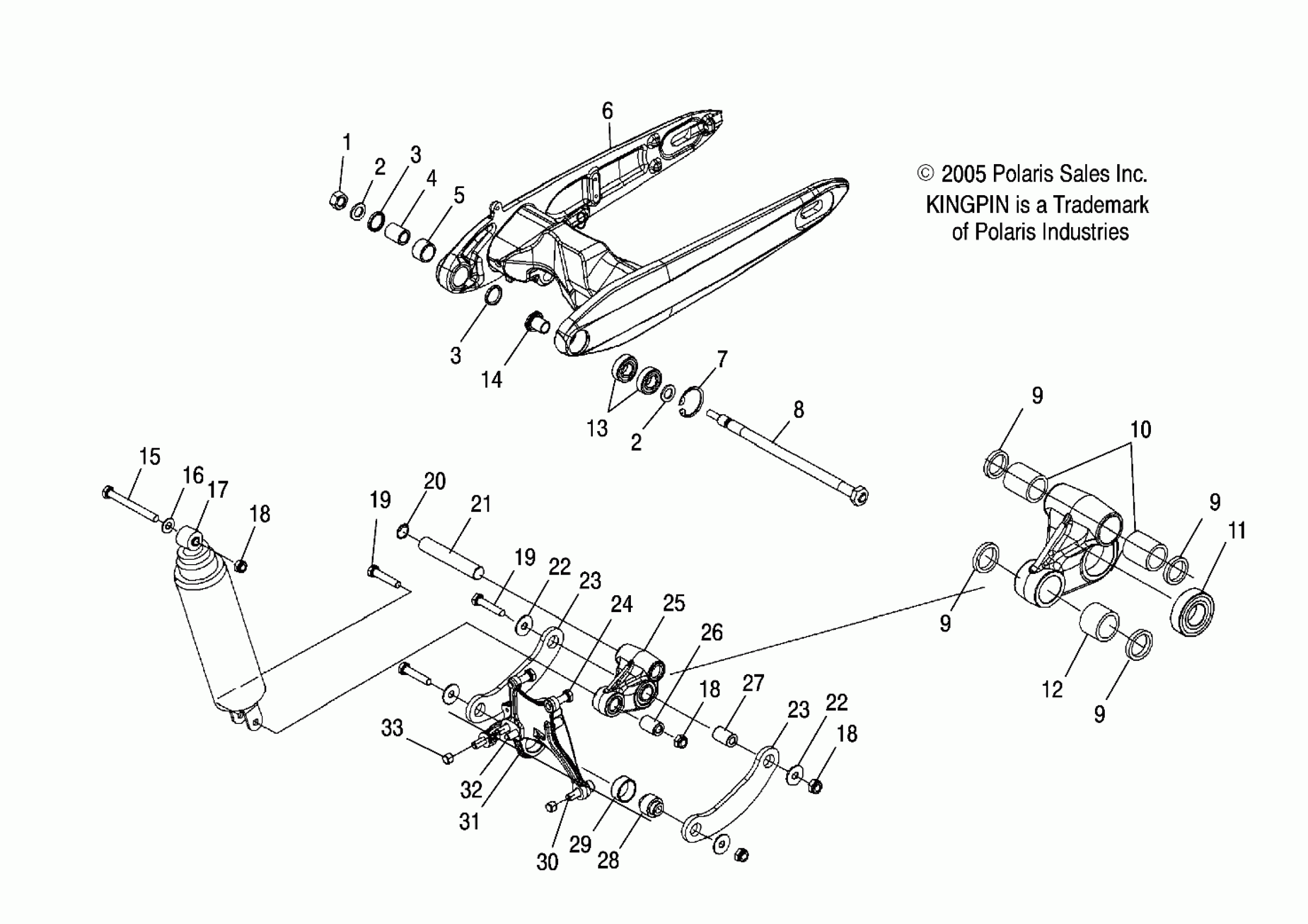

Polaris CA KINGPIN ALL OPTIONS - V06CB26 SUSPENSION, REAR and SWING ARM - V06CB26 ALL OPTIONS (4999203389920338A04) Diagram

#

Description
Price

1

NUT

7540001

Unavailable

2

WASHER, FLAT

7556236

Unavailable

2

WASHER, FLAT

7556236

Unavailable

3

SEAL

3610096

Unavailable

3

SEAL

3610096

Unavailable

4

Bushing

5133475

Unavailable

5

BEARING

3514413

Unavailable

6

Asm., Swing Arm w/Bearings, Chrome

1015299-156

$929.99

6

Asm., Swing Arm w/Bearings, Silver

1015299-385

Unavailable

7

RING, RETAINING

7670149

Unavailable

8

Shaft, Swing Arm Pivot

1014610

Unavailable

9

SEAL

3610095

Unavailable

9

SEAL

3610095

Unavailable

9

SEAL

3610095

Unavailable

9

SEAL

3610095

Unavailable

10

BEARING, NEEDLE

3514411

Unavailable

11

BEARING, SPHERICAL

3514439

Unavailable

12

BEARING, NEEDLE

3514412

Unavailable

13

BEARING, BALL

3514414

Unavailable

14

BUSHING

5631478

Unavailable

15

SCREW

7518206

Unavailable

16

Washer, Flat

7556155

$5.22

17

ASM., SHOCK [See Shock, Rear Pg. B13 for Details]

-------

Unavailable

18

NUT, NYLOK

7547268

$1.49

18

NUT, NYLOK

7547268

$1.49

18

NUT, NYLOK

7547268

$1.49

19

SCREW

7517946

Unavailable

19

SCREW

7517946

Unavailable

20

RING, RETAINING

7710544

Unavailable

21

BUSHING

5134101

Unavailable

22

Washer, Flat

7556260

Unavailable

22

Washer, Flat

7556260

Unavailable

23

Link, Suspension Strap

5247519

$55.56

23

Link, Suspension Strap

5247519

$55.56

24

SCREW

7517827

$6.39

25

Asm., Rocker w/Bearings [Incl. 9,10,11,12]

1014865

Unavailable

26

Bushing, Suspension, Short

5133473

Unavailable

27

Shaft, Rocker Arm

5133807

$36.41

28

Bushing, Suspension, Plain Bearing

5134096

Unavailable

29

BEARING

3514459

Unavailable

30

SCR-SH-M10X1.5X35 8.8 ZPD D204

7518032

Unavailable

31

Mount, Minor Pivot

5134079-067

$298.99

32

SCREW

7518202

Unavailable

33

DOWEL

7663008

$5.27
