- CA KINGPIN ALL OPTIONS - V06CB26
ENGINE, OIL COOLING - V06CB26 ALL OPTIONS (4999203389920338C09)

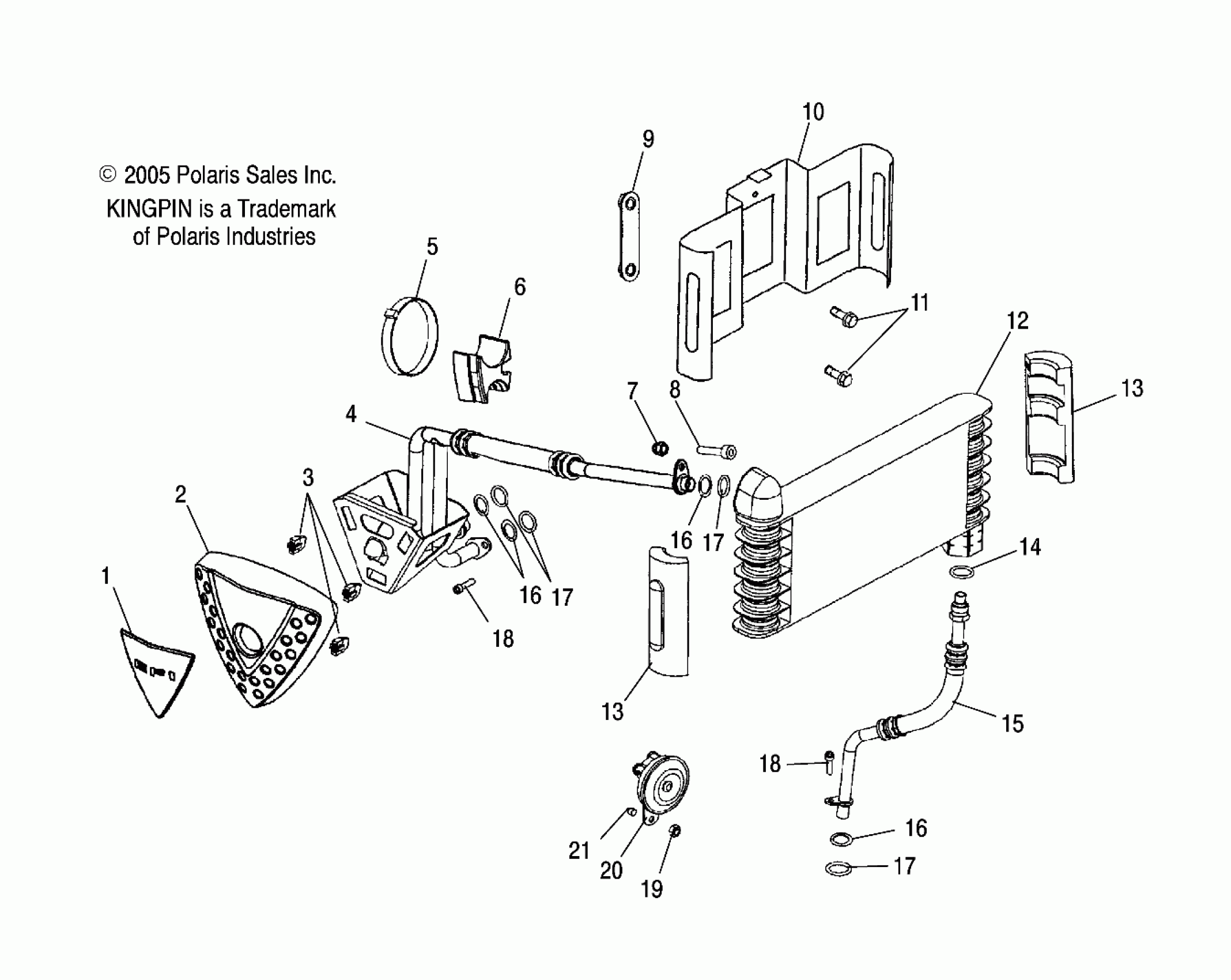

Polaris CA KINGPIN ALL OPTIONS - V06CB26 ENGINE, OIL COOLING - V06CB26 ALL OPTIONS (4999203389920338C09) Diagram
#
Description
Price
1
Badge, Oil Line Cover
7172379
Unavailable
2
COVER, IGNITION/COIL
5245659
Unavailable
3
GROMMET-SIDE COVER
5433833
$4.23
4
Line, Inlet
5334192
$237.30
5
Cable Tie
7080906
$6.79
6
Mount, Rubber
5412188
$31.11
7
NUT-ACORN,M6,SS,DIN 1587
7547115
Unavailable
8
Screw
7517384
$8.79
9
Plate, Nut
1013984
Unavailable
10
Bracket, Oil Cooler, Silver
1014761-385
$69.51
10
Bracket, Oil Cooler, Black
1014761-266
Unavailable
11
Screw
7517839
$5.59
12
Cooler, Oil, Silver
1240145-385
$245.24
12
Cooler, Oil, Black
1240145-266
$245.24
13
Isolator, Cooler
5412105
$6.59
13
Isolator, Cooler
5412105
$6.59
14
O-RING
5412027
Unavailable
15
Line, Outlet
5334191
$102.38
16
Washer, Flat
7556113
$4.79
16
Washer, Flat
7556113
$4.79
16
Washer, Flat
7556113
$4.79
17
O-Ring
5411356
$2.39
17
O-Ring
5411356
$2.39
17
O-Ring
5411356
$2.39
18
SCREW
7517405
$10.39
18
SCREW
7517405
$10.39
19
NUT
7547076
$2.60
20
Horn, Disk
4010739
$41.27
21
Spacer, Horn
5133647
$4.37
