- CA KINGPIN ALL OPTIONS - V06CB26
BODY, FENDER, REAR and TAILLIGHT - V06CB26 ALL OPTIONS (4999203389920338B08)

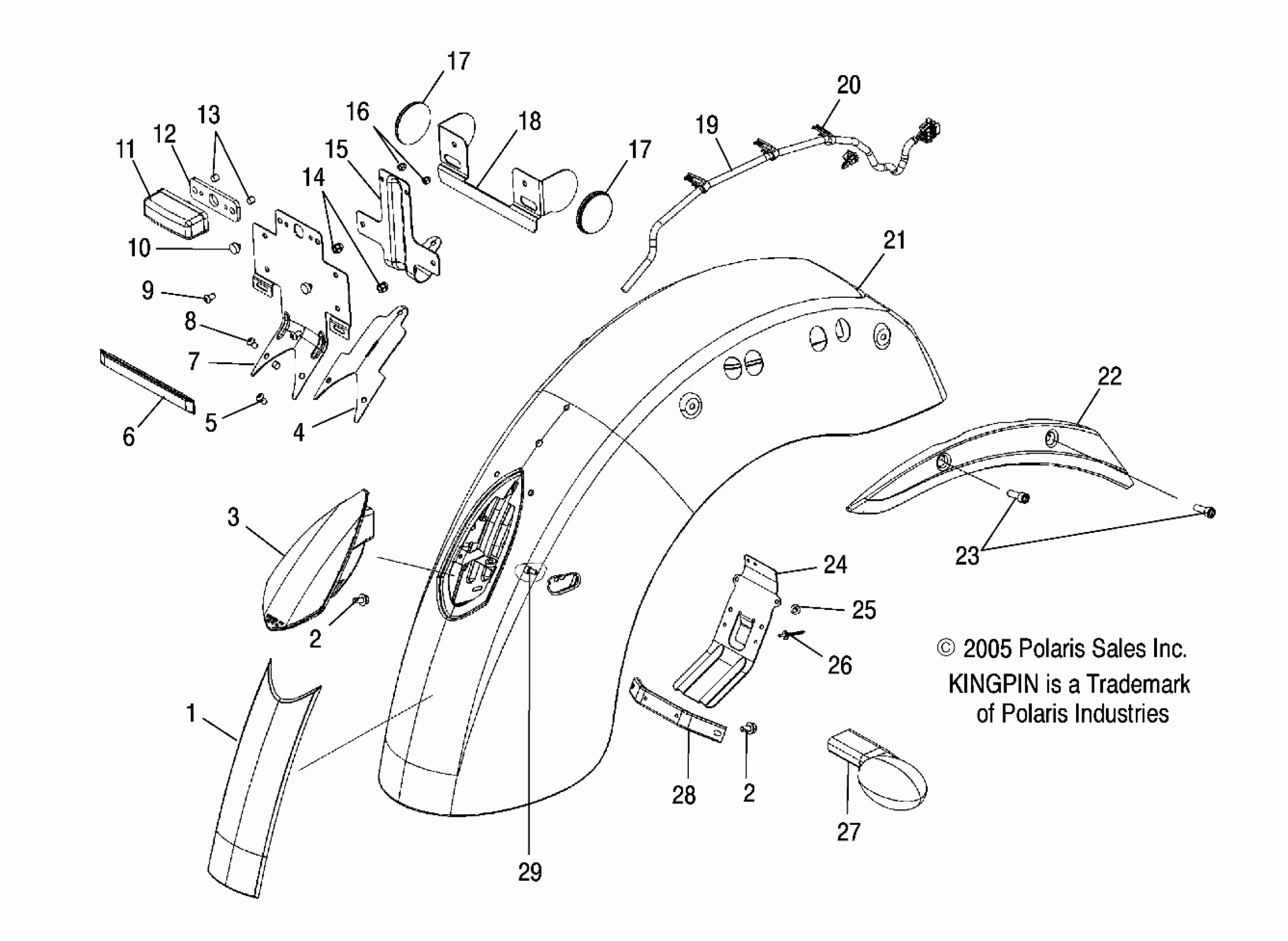

Polaris CA KINGPIN ALL OPTIONS - V06CB26 BODY, FENDER, REAR and TAILLIGHT - V06CB26 ALL OPTIONS (4999203389920338B08) Diagram
#
1
Trim, Fender, Rear
5247016
$75.54
2
SCREW
7517704
$7.19
2
SCREW
7517704
$7.19
3
Taillight, LED
2410471
Unavailable
4
Pad, License Plate Mount
5812521
Unavailable
5
NUT, NYLOK
7547106
$3.19
6
Reflector, Red
2670070
$9.91
7
Bracket, License Plate
5247445
$226.99
8
Screw, Buttonhead
7517494
$7.91
9
SCREW
7517406
Unavailable
10
BUMPER, GROMMET
5411323
Unavailable
11
Bulb, Replacement
4030015
$4.03
11
Light, License Plate
2410407
$40.46
12
Spacer, License Plate
5812520
$21.99
13
Spacer
5134403
$3.19
14
NUT-ACORN,M6,SS,DIN 1587
7547115
Unavailable
15
Bracket, License Plate
5247446
$41.27
16
Nut, Acorn
7547264
$7.14
17
Reflector, Round, Red
5433921
Unavailable
17
Reflector, Round, Red
5433921
Unavailable
18
Asm., Reflector [Incl. 6,17]
2632828
$61.90
19
Harness, Rear
2410473
Unavailable
20
CLIP, ELECTRICAL
7080737
Unavailable
21
Asm., Fender, Rear, Black
1014214-266
$1,054.99
21
Asm., Fender, Rear, SED/SB
1014214-1216
$889.99
21
Asm., Fender, Rear, Grph/Silver
1014214-1217
$939.99
21
Asm., Fender, Rear, PWH/SB/Fl
1014214-1218
$869.99
21
Asm., Fender, Rear, Slv/Bk/Fl
1014214-1219
$787.99
21
Asm., Fender, Rear, SS Blue
1014214-1231
$919.99
21
Asm., Fender, Rear, Indy Red
1014214-293
$899.99
22
Cover, Rail, LH
5631635-156
Unavailable
22
Cover, Rail, RH
5631636-156
Unavailable
23
SCREW
7518084
Unavailable
24
Bracket, Taillight Shield
5248132-067
Unavailable
25
Dart
5433140
Unavailable
26
Rivet
7081040
$1.49
27
Bulb, Single Filament
4010742
$8.79
27
Signal, Rear, LH [Incl. 29]
2410404
Unavailable
27
Signal, Rear, RH [Incl. 29]
2410405
Unavailable
28
Bracket, Fender, Brace
5247156-067
$15.56
29
SCREW
7517405
$10.39
