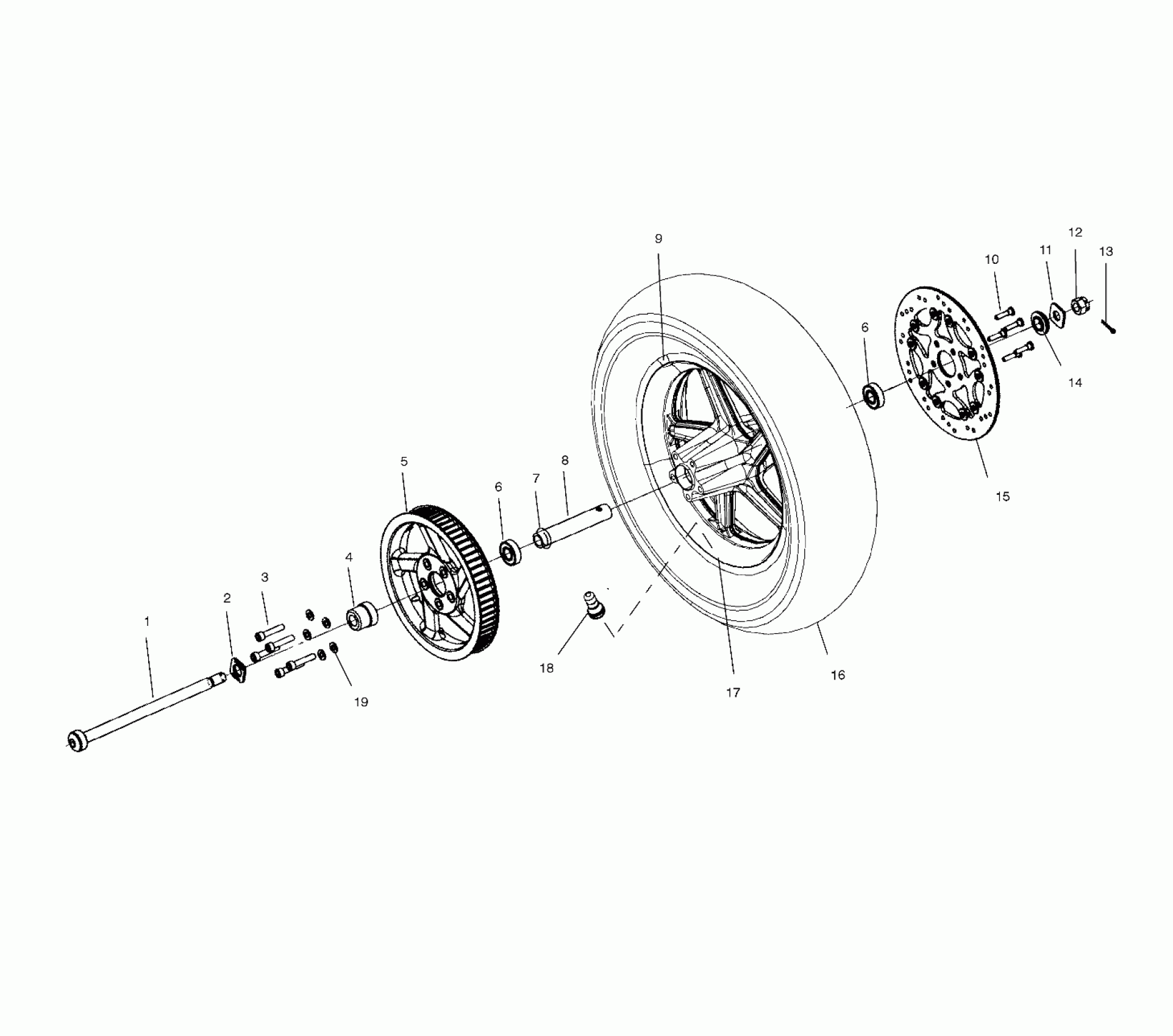

Polaris CA CLASSIC CRUISER ALL OPTIONS - V03CB16 WHEELS, REAR (CAST) - V03CB16/ALL OPTIONS (4983648364A14) Diagram

#

Description
Price

1

Axle, Rear

1013184

$125.40

2

Washer, Indicator, RH

5245088-067

$13.60

3

Screw

7518044

$6.19

4

Spacer, Rear Wheel, RH

5132624

Unavailable

5

Sprocket, Driven, 64T, Silver

1341378

$414.99

6

Bearing, Ball

3513509

Unavailable

6

Bearing, Ball

3513509

Unavailable

7

O-Ring

5411820

Unavailable

8

Spacer, Bearing, Middle

5132314

Unavailable

9

Weight, Balance, 1/4 oz.

1520618

Unavailable

10

Screw

7517978

$33.79

11

Washer, Indicator, LH

5245087-067

$12.65

12

Nut

7547009

$4.62

13

Pin, Cotter

7663003

$3.81

14

Spacer, Axle, Rear, LH

5010429

$22.51

15

Rotor, Brake

1910498

Unavailable

16

Tire, Rear, 16x3.5

5411970

$354.99

17

Wheel, Rear

5132635

Unavailable

18

Valve, Rim

1520232

$3.17

19

WASHER, FLAT

7556234

$3.19
