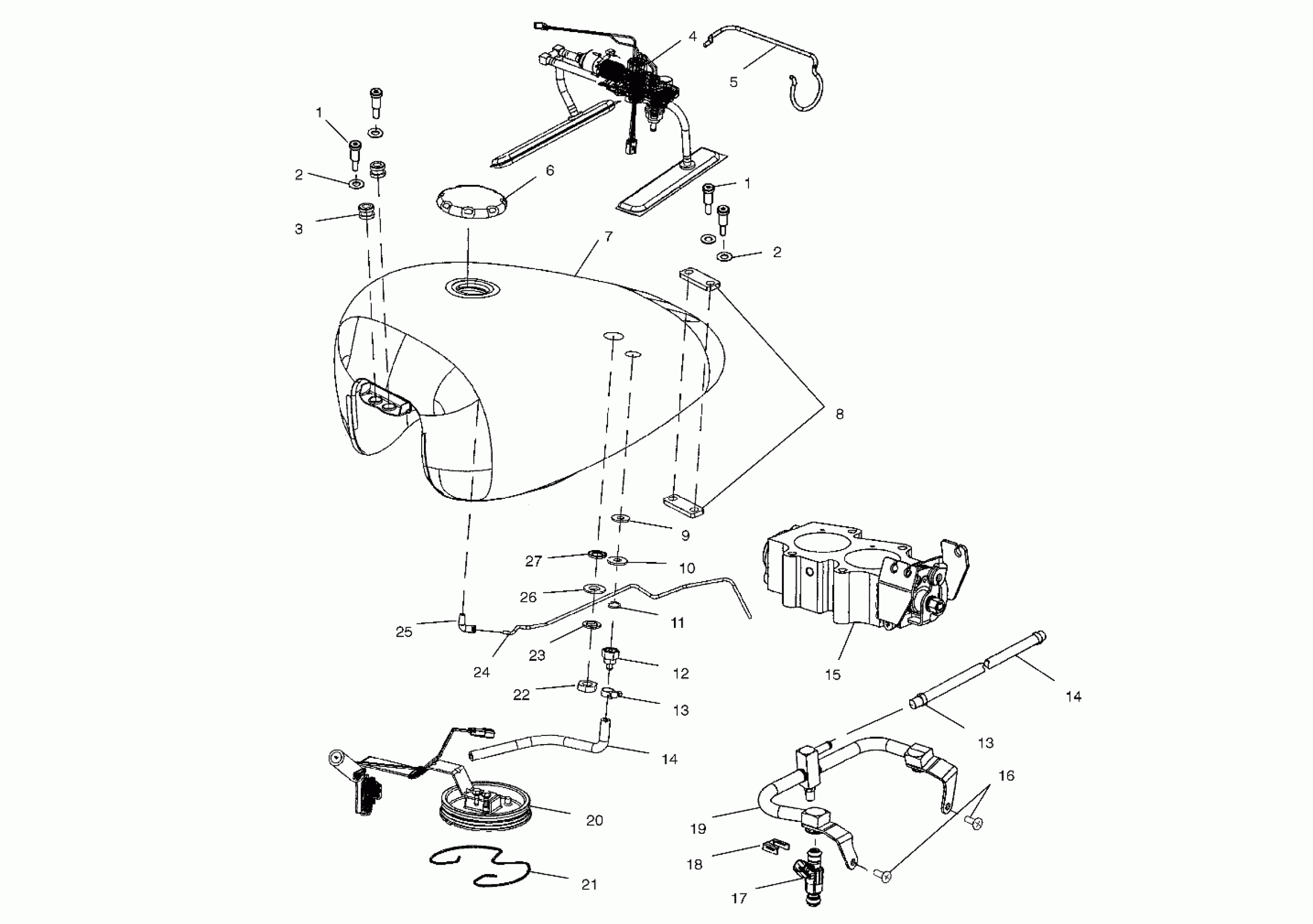

Polaris CA CLASSIC CRUISER ALL OPTIONS - V03CB16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V03CB16/ALL OPTIONS (4983648364D08) Diagram

#

Description
Price

1

Screw, Socket Head

7517723

Unavailable

1

Screw, Socket Head

7517723

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

3

Grommet, Rubber, Front

5811878

Unavailable

4

Thermistor, Fuel Pump [Level Sensor]

2520678

Unavailable

4

Pump, Fuel [Incl. 9-12,22,23,26,27]

2520344

$664.99

4

Filter, Fuel Line, Internal

2520245

$81.75

5

Clip, Retainer, Fuel Pump

5334291

Unavailable

6

Cap, Fuel

5132333

Unavailable

7

Tank, Fuel, Black

1013279-266

$557.54

7

Tank, Fuel, Solar Red

1013279-342

$2,054.99

7

Tank, Fuel, Sonic Blue

1013279-341

$2,054.99

7

Tank, Fuel, Yellow

1013279-388

$2,054.99

7

Tank, Fuel, Flame

1013279-384

$2,054.99

7

Tank, Fuel, Blue/Silver

1013279B1

$2,054.99

7

Tank, Fuel, Red/Silver

1013279B2

$2,054.99

7

Tank, Fuel, Yellow/Black

1013279B3

$2,054.99

7

Tank, Fuel, Turquoise/White

1013279B4

$2,054.99

8

Pad, Tank Mount, Rear

5411796

Unavailable

9

Grommet

5412093

Unavailable

10

Washer

7556131

$3.17

11

O-Ring

5411869

Unavailable

12

Fitting

2520251

Unavailable

13

Clamp, Hose

7080894

$7.14

13

Clamp, Hose

7080894

$7.14

14

Hose

5411942

$44.99

14

Hose

5411942

$44.99

15

Asm., Throttle Body

1253363

Unavailable

15

Cap, Fitting

5411886

Unavailable

16

SCREW

7517405

$10.32

17

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.90

17

Injector, Fuel

1253405

Unavailable

18

Clip, Injector Clocking

7670129

Unavailable

19

Asm., Fuel Rail

2520207

Unavailable

20

O-Ring

5412071

Unavailable

20

Sender, Fuel Level

4010373

Unavailable

21

Ring, Retaining

7710515

Unavailable

22

Nut

7547186

$4.76

23

Washer

7556192

$4.76

24

Line, Vent

5433950

$12.30

25

Elbow, Vent Line

5411972

$1.98

26

Washer

7556193

Unavailable

27

Grommet

5412095

Unavailable
