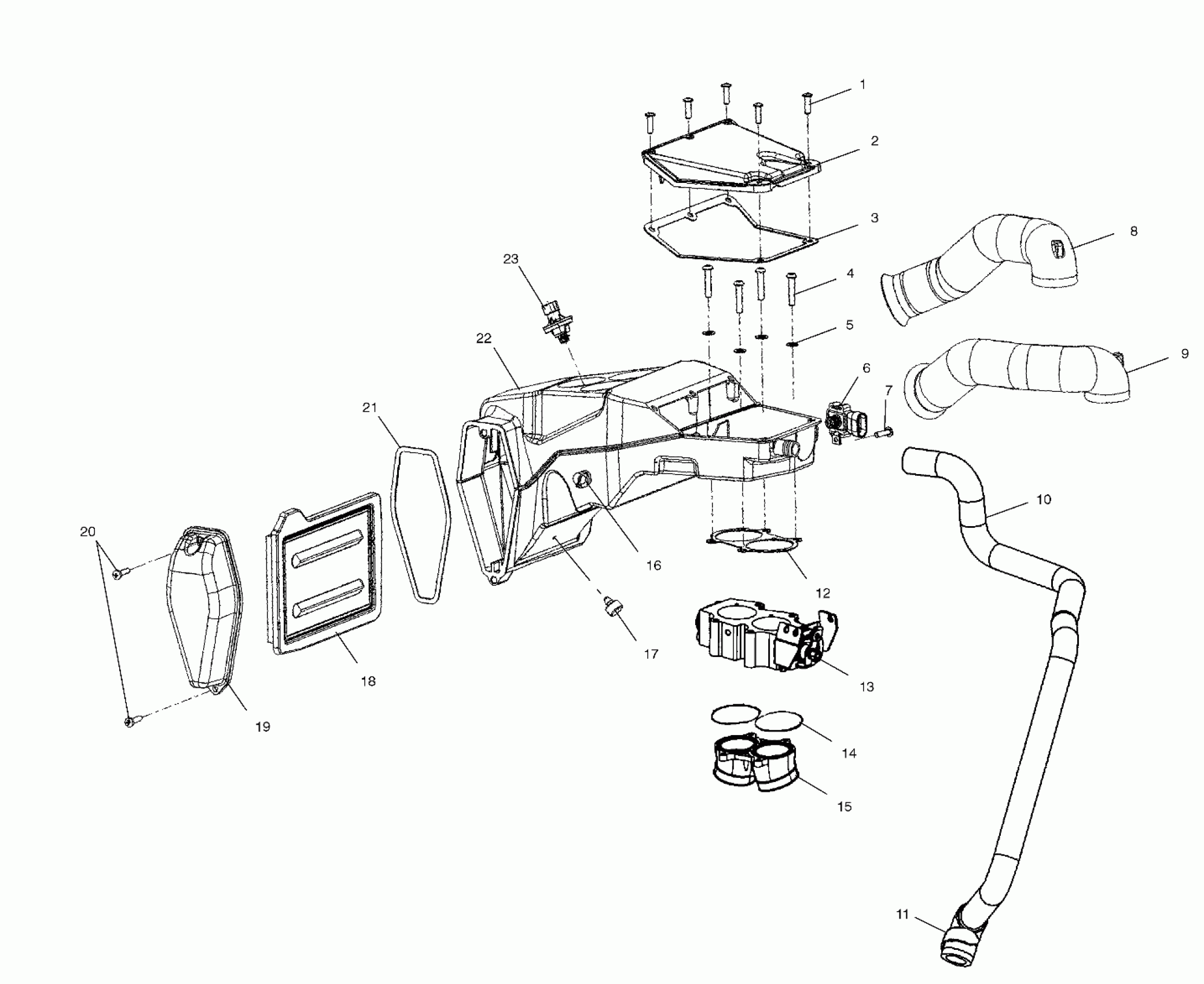

Polaris CA CLASSIC CRUISER ALL OPTIONS - V03CB16 ENGINE, AIR BOX - V03CB16/ALL OPTIONS (4983648364C06) Diagram

#

Description
Price

1

Screw

7517842

$3.48

2

Cover, Airbox

5433466

$44.99

3

Seal, Airbox Cover

5811867

Unavailable

4

Screw, Button Head

7517885

Unavailable

5

WASHER, FLAT

7556121

$1.49

6

SENSOR, MAP [See Electrical Pg. C1, Ref. 8]

-------

Unavailable

7

Screw

7517842

$3.48

8

Tube, Intake, RH

5433471

$25.40

9

Tube, Intake, LH

5433470

$36.41

10

Hose, Breather

5434070

Unavailable

11

CLAMP, BREATHER HOSE

7080782

Unavailable

12

Gasket, Airbox

5811908

$9.52

13

ASM., THROTTLE BODY [SEE FUEL SYSTEM PG. D8, REF. 15]

-------

Unavailable

14

O-Ring

5412259

Unavailable

15

Adapter, Throttle Body

1253335

Unavailable

16

Clip, Retainer

5432302

Unavailable

17

Bumper, Rubber

5811869

$4.35

18

Filter, Air

7080858

$21.81

19

Cover, Air Filter

5433469

Unavailable

20

Screw

7517816

Unavailable

21

Seal, Filter, Access Hatch

5811866

$11.51

22

Airbox

1013720

$113.32

23

SENSOR, AIR TEMPERATURE [See Electrical Pg. C1, Ref. 4]

-------

Unavailable
