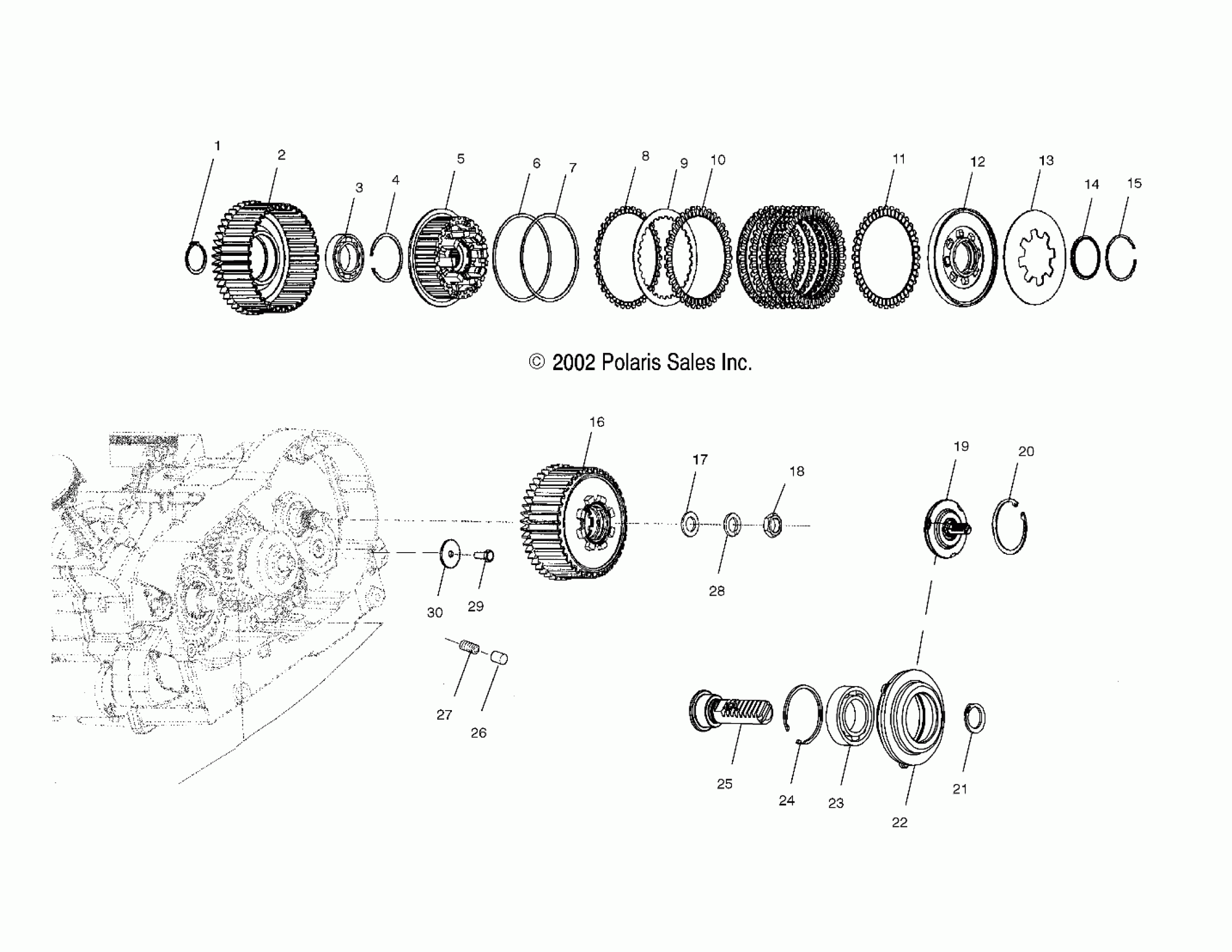

Polaris CA CLASSIC CRUISER ALL OPTIONS - V03CB16 DRIVE TRAIN, DRIVE CLUTCH - V03CB16/ALL OPTIONS (4983648364D07) Diagram

#

Description
Price

1

Clip, External

7670122

Unavailable

2

Asm., Gear/Basket

1341438

$354.99

3

Bearing, Ball

3514358

Unavailable

4

CIRCLIP, INTERNAL

7670123

$23.81

5

Hub, Clutch

5133313

$204.76

6

SEAT, JUDDER SPRING

5246074

Unavailable

7

SPRING, DIAPHRAGM, JUDDER

7042123

$44.51

8

Plate, Friction Judder [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

9

Plate, Separator [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

10

Plate, Friction [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

11

Plate, Friction Clutch [Order Kit, Clutch Pack 2202434][Kit includes all Plates (Ref. 6,7) per Clutch]

----

Unavailable

12

PLATE, PRESSURE

5132703

$113.32

13

Spring, Clutch, Diaphragm

7042099

Unavailable

14

Ring, Snap

7710510

Unavailable

15

Circlip, Internal

7670124

Unavailable

16

Asm., Clutch

1322061

$1,259.99

17

Washer

5131658

$7.94

18

Nut

7547019

$26.17

19

Asm., Rack Insert [Incl. 22,23,24]

1341427

Unavailable

20

Circlip

7710506

$1.59

21

Ring, Retaining

7710532

$23.81

22

Insert, Pressure Plate

5132553

Unavailable

23

Bearing, Ball

3514356

Unavailable

24

Circlip, Internal

7670128

$31.75

25

Rack, Clutch

6230245

Unavailable

26

Plug

7051528

Unavailable

27

Screw, Set

7517449

$4.17

28

Washer, Lock

7556166

Unavailable

29

Screw

7517587

$2.17

30

Washer, Flat

7556139

Unavailable
