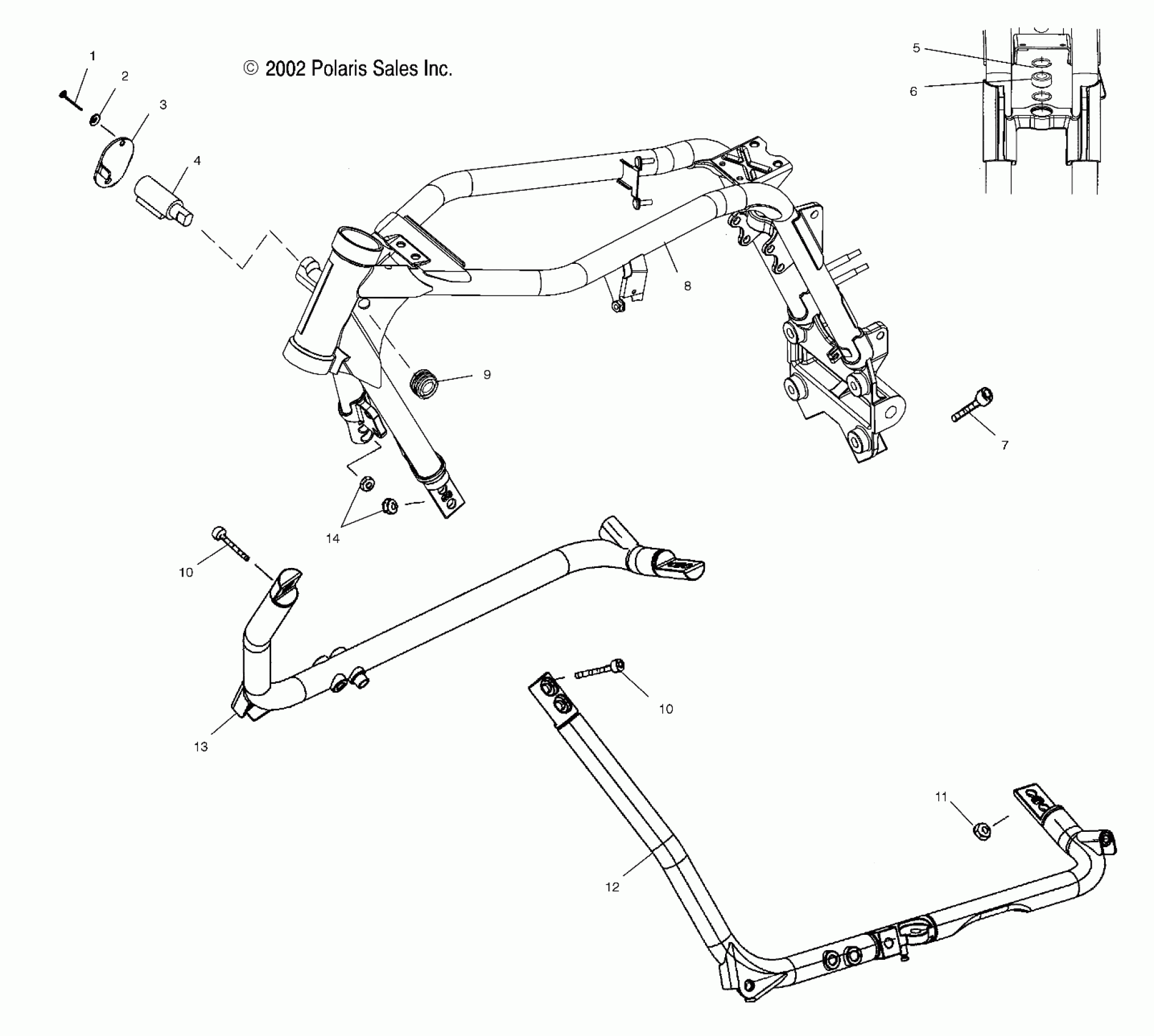

Polaris CA CLASSIC CRUISER ALL OPTIONS - V03CB16 CHASSIS, MAIN FRAME - V03CB16/ALL OPTIONS (4983648364A03) Diagram

#

Description
Price

1

Pin, Knurled

7661027

$3.30

2

Washer, Wave

7571637

$0.69

3

Cap, Fork Lock

5242202

$14.76

4

LOCK, FRONT FORK [SEE IGNITION ASM. PG. C2, REF. 10]

-------

Unavailable

5

Ring, Retaining

7710446

$6.23

6

Bearing, Spherical

3513506

$64.59

7

Screw

7518123

$3.57

8

Frame, Main, Black

1013490-067

Unavailable

8

Frame, Main, Silver

1013490-385

Unavailable

9

Grommet, Head Casting

5411472

$5.79

10

Screw [Black]

7518057

$3.57

10

Screw [Silver]

7518123

$3.57

10

Screw [Black]

7518057

$3.57

10

Screw [Silver]

7518123

$3.57

11

Nut [Silver]

7547239

Unavailable

12

Tube, Frame, Lower, Black, LH

1013481-067

$335.03

12

Tube, Frame, Lower, Silver, LH

1013481-385

$338.08

13

Tube, Frame, Lower, Black, RH

1013482-067

$385.70

13

Tube, Frame, Lower, Silver, RH

1013482-385

$338.08

14

Nut [Black]

7547039

Unavailable

14

Nut [Silver]

7547239

Unavailable
