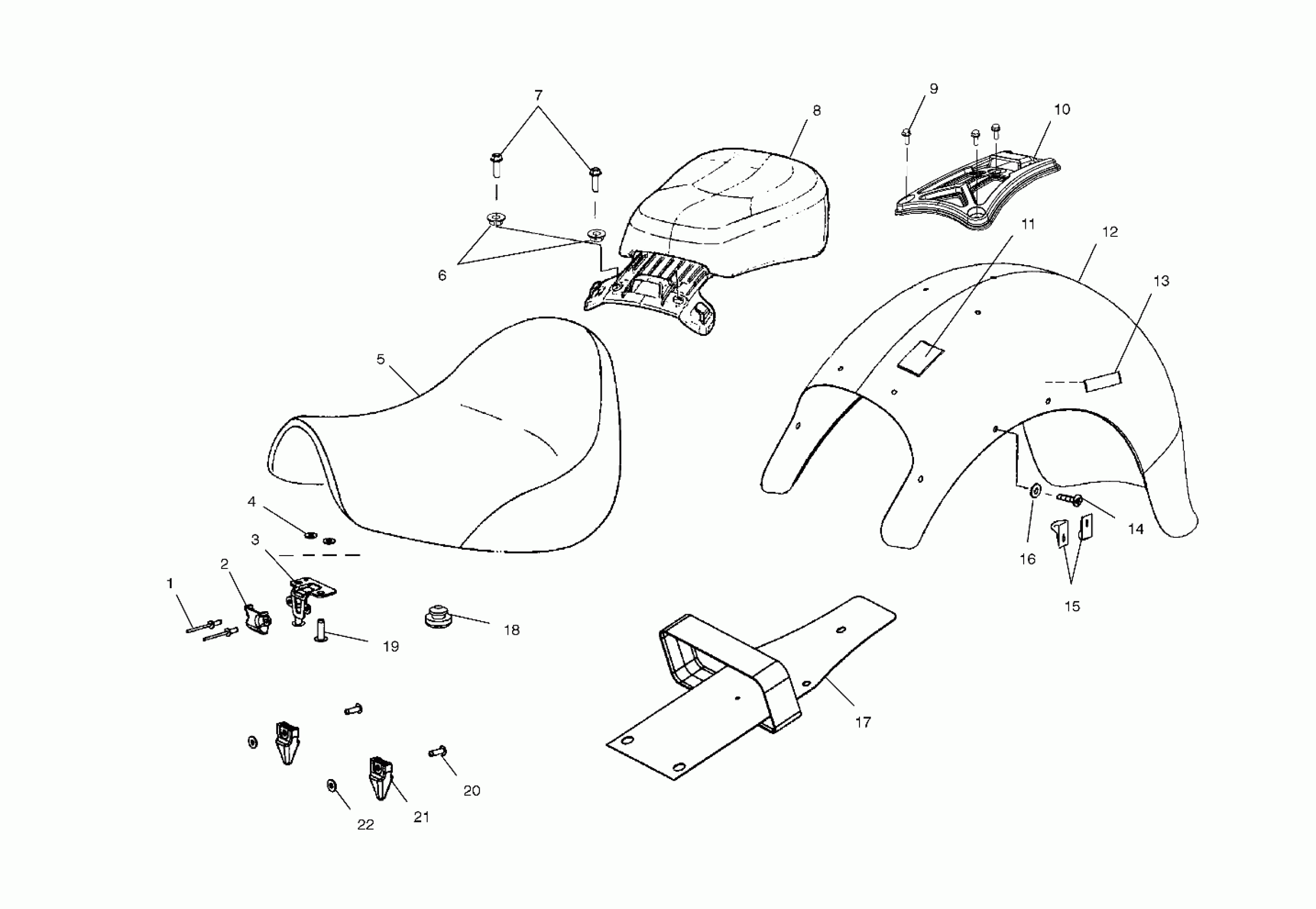

Polaris CA CLASSIC CRUISER ALL OPTIONS - V03CB16 BODY, SEAT and REAR FENDER - V03CB16/ALL OPTIONS (4983648364B12) Diagram

#

Description
Price

1

Rivet

7661092

$0.68

2

Shield, Seat Bracket

5433698

$23.81

3

Bracket, Seat Lock

5243971

$49.21

4

Washer, Flat

7556133

$2.60

5

Seat

2683135

$384.99

6

Washer, Shoulder

7556146

Unavailable

7

SCREW

7517751

$7.19

8

Asm., Tandem Seat

2682529

Unavailable

9

Screw

7517705

$6.79

10

Bracket, Tandem Seat

5433482

$15.56

11

Pad, Rubber, Tandem Seat

5811941

$6.59

12

Fender, Rear, Black

1013278-266

$756.85

12

Fender, Rear, Yellow/Black

1013278B3

$824.99

12

Fender, Rear, Red/Silver

1013278B2

$824.99

12

Fender, Rear, Blue/Silver

1013278B1

$824.99

12

Fender, Rear, Sonic Blue

1013278-341

$824.99

12

Fender, Rear, Solar Red

1013278-342

$756.85

12

Fender, Rear, Yellow

1013278-388

$824.99

12

Fender, Rear, Flame

1013278-384

$869.99

12

Fender, Rear, Turquoise/White

1013278B4

$869.99

13

Reflector, Red

5433865

Unavailable

14

Screw

7518155

Unavailable

15

CLIP, ELECTRICAL

7080737

Unavailable

16

Bushing, Fender, Rear

5133702

Unavailable

17

Asm., Seat Strap

2682455

Unavailable

18

BUMPER-RUBBER

5412067

$3.99

19

Rivet

7661081

$1.43

20

Rivet

7621462

$1.49

21

Cone, Alignment

5412282

$8.17

22

WSHR-.194X.475X.049 ZTB

7555746

Unavailable
