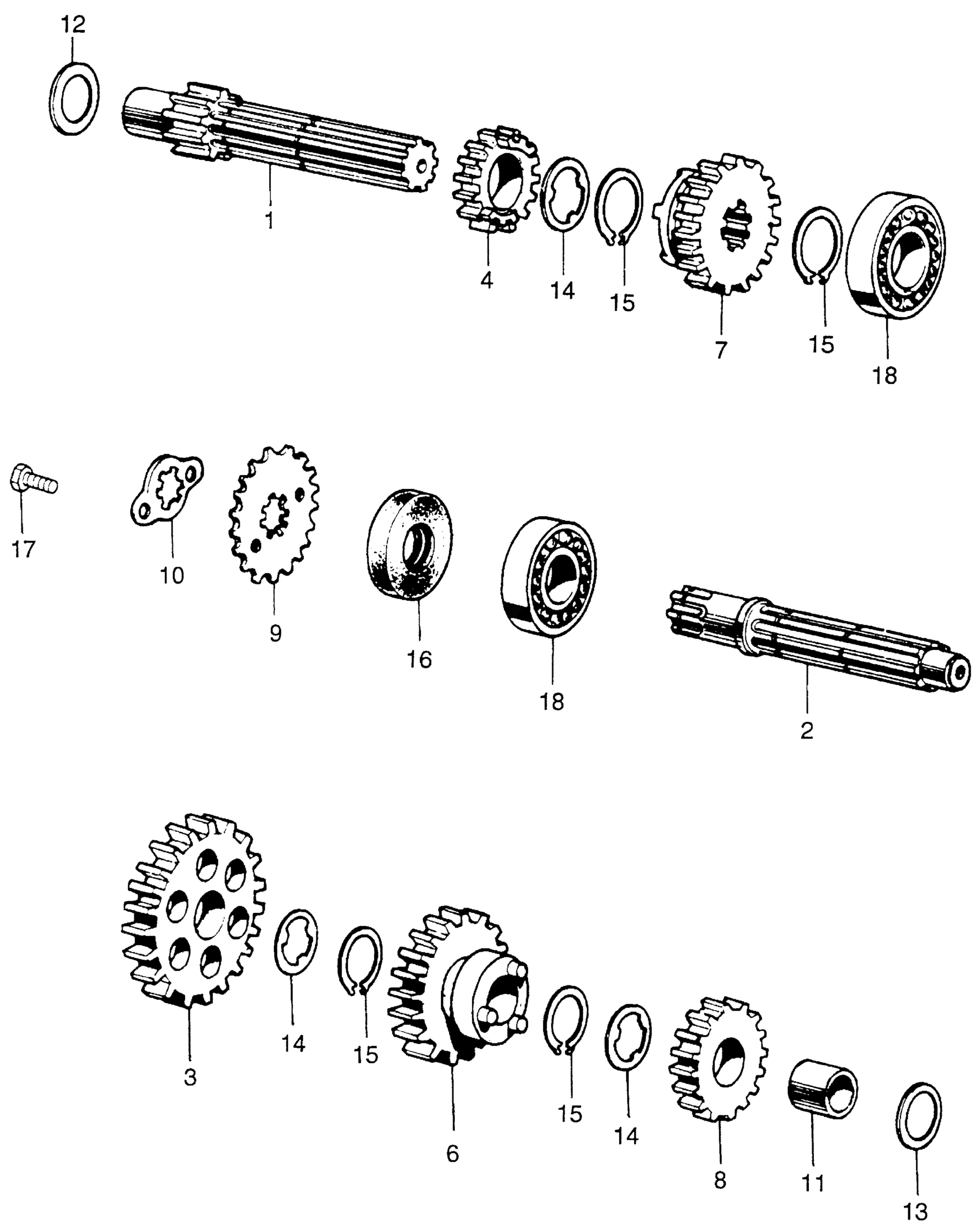

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

COUNTERSHAFT, TRANSMISSION This part replaces 23221-041-040.

23221-041-050

Unavailable

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

GEAR, COUNTERSHAFT LOW (37T) This part replaces 23421-041-000.

23421-041-010

$73.84

GEAR, COUNTERSHAFT LOW (37T)

23421-041-010

$73.84

GEAR, MAINSHAFT SECOND (18T)

23431-040-060

Unavailable

GEAR, COUNTERSHAFT SECOND (30T) (NOT AVAILABLE)

23441-087-780

Unavailable

GEAR, MAINSHAFT TOP (21T) (NOT AVAILABLE)

23471-041-040

Unavailable

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-041-020.

23481-086-010

Unavailable

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23481-086-000.

23481-086-010

Unavailable

GEAR, COUNTERSHAFT THIRD (25T)

23481-086-010

Unavailable

SPROCKET, DRIVE (14T) This part replaces 23800-040-000.

23800-040-010

$17.03

SPROCKET, DRIVE (14T)

23800-040-010

$17.03

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

COLLAR, GEAR This part replaces 23911-041-010.

23911-041-020

Unavailable

COLLAR, GEAR

23911-041-020

Unavailable

WASHER, THRUST (14MM)

90451-001-000

$3.67

WASHER (13.5MM)

90451-035-000

Unavailable

WASHER, SPLINE (17MM)

90461-035-000

$2.57

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
