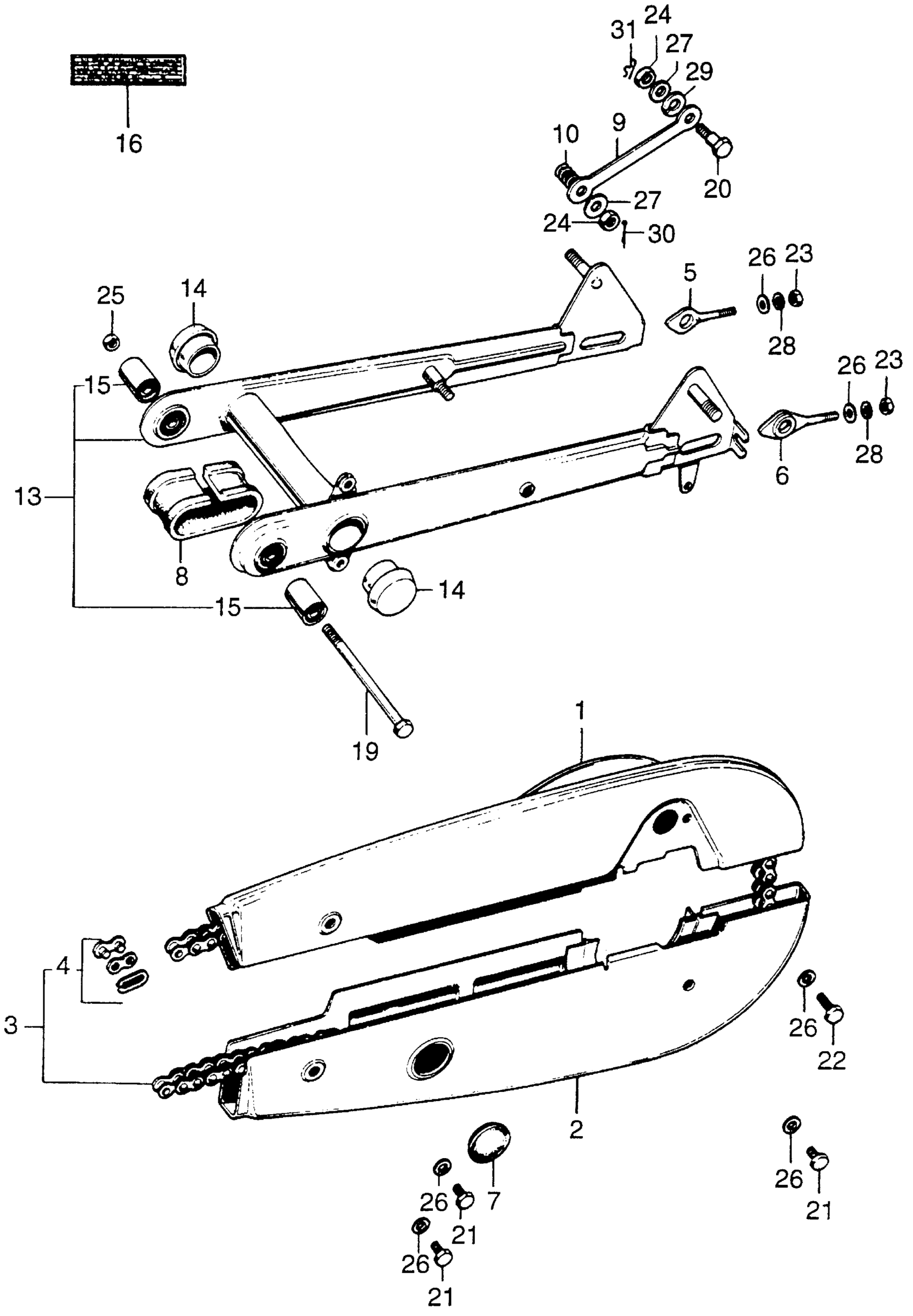

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN HALF (UPPER) (NOT AVAILABLE) This part replaces 40510-040-000Z.

40510-065-010Z

Unavailable

1

CASE, DRIVE CHAIN HALF (UPPER) (NOT AVAILABLE)

40510-065-010Z

Unavailable

2

CASE, DRIVE CHAIN HALF (LOWER) (NOT AVAILABLE) This part replaces 40520-040-000Z.

40520-065-010Z

Unavailable

2

CASE, DRIVE CHAIN HALF (LOWER) (NOT AVAILABLE)

40520-065-010Z

Unavailable

3

CHAIN, DRIVE (92L)

405W3-179-505

Unavailable

3

CHAIN, DRIVE (92L) This part replaces 40530-051-690.

405W3-179-505

Unavailable

3

CHAIN, DRIVE (92L) This part replaces 40530-051-691.

405W3-179-505

Unavailable

3

CHAIN, DRIVE (92L) This part replaces 40530-179-701.

405W3-179-505

Unavailable

3

CHAIN, DRIVE (92L) This part replaces 40530-179-702.

405W3-179-505

Unavailable

4

MASTER LINK (DAIDO) This part replaces 40531-035-005.

40531-098-003

$3.74

4

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

4

MASTER LINK (DAIDO)

40531-098-003

$3.74

4

MASTER LINK (DAIDO) This part replaces 40531-098-005.

40531-098-003

$3.74

4

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

4

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

4

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

5

ADJUSTER S, R. CHAIN This part replaces 40543-035-000.

95014-10010

$4.53

5

ADJUSTER S, R. CHAIN This part replaces 40543-063-000.

95014-10010

$4.53

5

ADJUSTER S, R. CHAIN

95014-10010

$4.53

6

ADJUSTER, L. CHAIN This part replaces 40544-035-000.

95014-10020

$5.54

6

ADJUSTER, L. CHAIN

95014-10020

$5.54

7

CAP, CHAIN CASE

40545-001-000

$3.67

7

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000B.

40545-001-000

$3.67

7

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000ZC.

40545-001-000

$3.67

7

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-141-000.

40545-001-000

$3.67

8

GASKET, DRIVE CHAIN CASE

40591-041-000

Unavailable

9

ARM, TORQUE LINK (NOT AVAILABLE)

43431-001-020

Unavailable

10

SPRING, STOPPER ARM

43434-250-000

$2.00

13

SWINGARM, RR. (NOT AVAILABLE)

52100-040-682Z

Unavailable

14

CAP *Y3L* This part replaces 52161-001-010XL.

52161-001-505

Unavailable

15

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$12.11

16

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

19

BOLT, SWINGARM PIVOT This part replaces 90121-041-000.

90121-092-671

Unavailable

19

BOLT, SWINGARM PIVOT This part replaces 90121-092-670.

90121-092-671

Unavailable

19

BOLT, SWINGARM PIVOT

90121-092-671

Unavailable

20

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

20

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

21

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

21

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

21

BOLT, HEX. (6X6)

92101-06006-0A

$1.49

22

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

22

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

NUT, SELF-LOCK (10MM) | Use from Frame SN 046542M

90351-268-000

$2.87

25

NUT, HEX. (10MM) | Use up to Frame SN 046541M This part replaces 94001-10000.

94030-10000

$1.49

25

NUT, HEX. (10MM) | Use up to Frame SN 046541M

94030-10000

$1.49

25

NUT, HEX. (10MM) | Use up to Frame SN 046541M This part replaces 94030-10000-0S.

94030-10000

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

WASHER, SPRING (8MM)

94111-10000

$1.49

30

PIN, COTTER (2.0X15)

94201-20150

$1.49

31

PIN, LOCK (8MM)

94251-08000

$1.49
