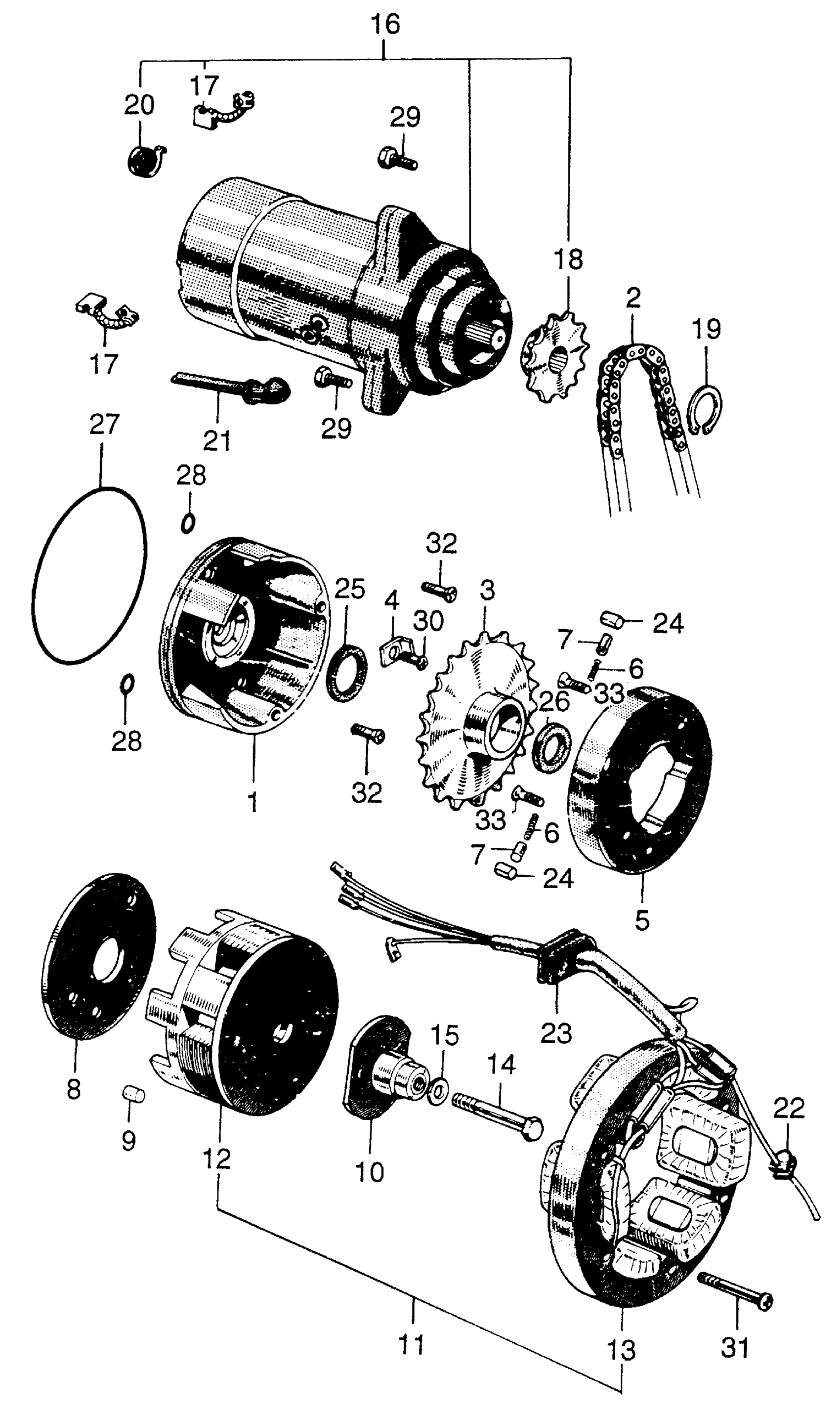

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 STARTING MOTOR + ALTERNATOR Diagram

#

Description
Price

1

BASE, ALTERNATOR

11321-039-000

Unavailable

2

CHAIN, STARTING (60L) (NOT AVAILABLE)

28101-039-000

Unavailable

3

SPROCKET, STARTING (37T) (NOT AVAILABLE)

28110-039-000

Unavailable

4

PLATE, STARTER SPROCKET SETTING (NOT AVAILABLE)

28117-039-000

Unavailable

5

CLUTCH, STARTER (OUTER)

28120-039-010

Unavailable

6

SPRING, STARTER CLUTCH ROLLER (NOT AVAILABLE)

28125-003-000

Unavailable

7

CAP, STARTING CLUTCH ROLLER SPRING (NOT AVAILABLE)

28126-003-000

Unavailable

8

PLATE, STARTER CLUTCH SIDE

28128-039-000

Unavailable

9

PIN, STARTING CLUTCH KNOCK (OUTER)

28129-003-000

Unavailable

10

ADVANCER ASSY., SPARK (NOT AVAILABLE) This part replaces 30220-039-025.

30220-039-164

Unavailable

10

ADVANCER ASSY., SPARK (NOT AVAILABLE) This part replaces 30220-039-154.

30220-039-164

Unavailable

10

ADVANCER ASSY., SPARK (NOT AVAILABLE)

30220-039-164

Unavailable

11

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE) This part replaces 31100-039-045.

31100-039-055

Unavailable

11

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-039-055

Unavailable

12

ROTOR (NOT AVAILABLE)

31101-039-035

Unavailable

13

STATOR (HITACHI) (NOT AVAILABLE) This part replaces 31102-039-015.

31102-039-025

Unavailable

14

BOLT, ROTOR SETTING (NOT AVAILABLE)

31104-003-004

Unavailable

15

WASHER, ROTOR SETTING (NOT AVAILABLE)

31105-003-000

Unavailable

16

MOTOR ASSY., STARTER (NOT AVAILABLE) This part replaces 31200-003-000.

31200-003-006

Unavailable

16

MOTOR ASSY., STARTER (NOT AVAILABLE)

31200-003-006

Unavailable

17

BRUSH SET, CARBON (NOT AVAILABLE)

31201-003-006

Unavailable

18

SPROCKET, STARTER MOTOR (NOT AVAILABLE)

31202-003-006

Unavailable

19

CLIP, STARTING SPROCKET (NOT AVAILABLE) This part replaces 31203-003-004.

31203-003-006

Unavailable

19

CLIP, STARTING SPROCKET (NOT AVAILABLE)

31203-003-006

Unavailable

20

SPRING, BRUSH (NOT AVAILABLE)

31204-003-006

Unavailable

21

CABLE, STARTER MOTOR (NOT AVAILABLE)

32401-003-000

Unavailable

22

GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)

32956-039-000

Unavailable

23

GROMMET, ALTERNATOR WIRE (NOT AVAILABLE)

32971-039-000

Unavailable

24

ROLLER (8X10)

91101-039-000

Unavailable

25

OIL SEAL (30X42X4.5) This part replaces 91201-003-000.

91201-179-711

Unavailable

25

OIL SEAL (30X42X4.5)

91201-179-711

Unavailable

26

OIL SEAL (16.9X28X5) (NOT AVAILABLE)

91202-003-000

Unavailable

27

O-RING (107X2) (ARAI) This part replaces 91301-035-000.

91301-035-003

$7.05

27

O-RING (107X2)

91301-035-003

$7.05

28

O-RING (6X1.7)

91317-171-003

$2.92

28

O-RING (6X1.7) (ARAI) This part replaces 91317-703-000.

91317-171-003

$2.92

29

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

29

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

29

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

30

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

31

SCREW, PAN (6X40) This part replaces 93500-06038.

93500-06040-0A

$1.49

31

SCREW, PAN (6X40) This part replaces 93500-06038-0A.

93500-06040-0A

$1.49

31

SCREW, PAN (6X40)

93500-06040-0A

$1.49

32

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

32

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

33

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

33

SCREW, FLAT (6X20)

93600-06020-0A

$1.49
