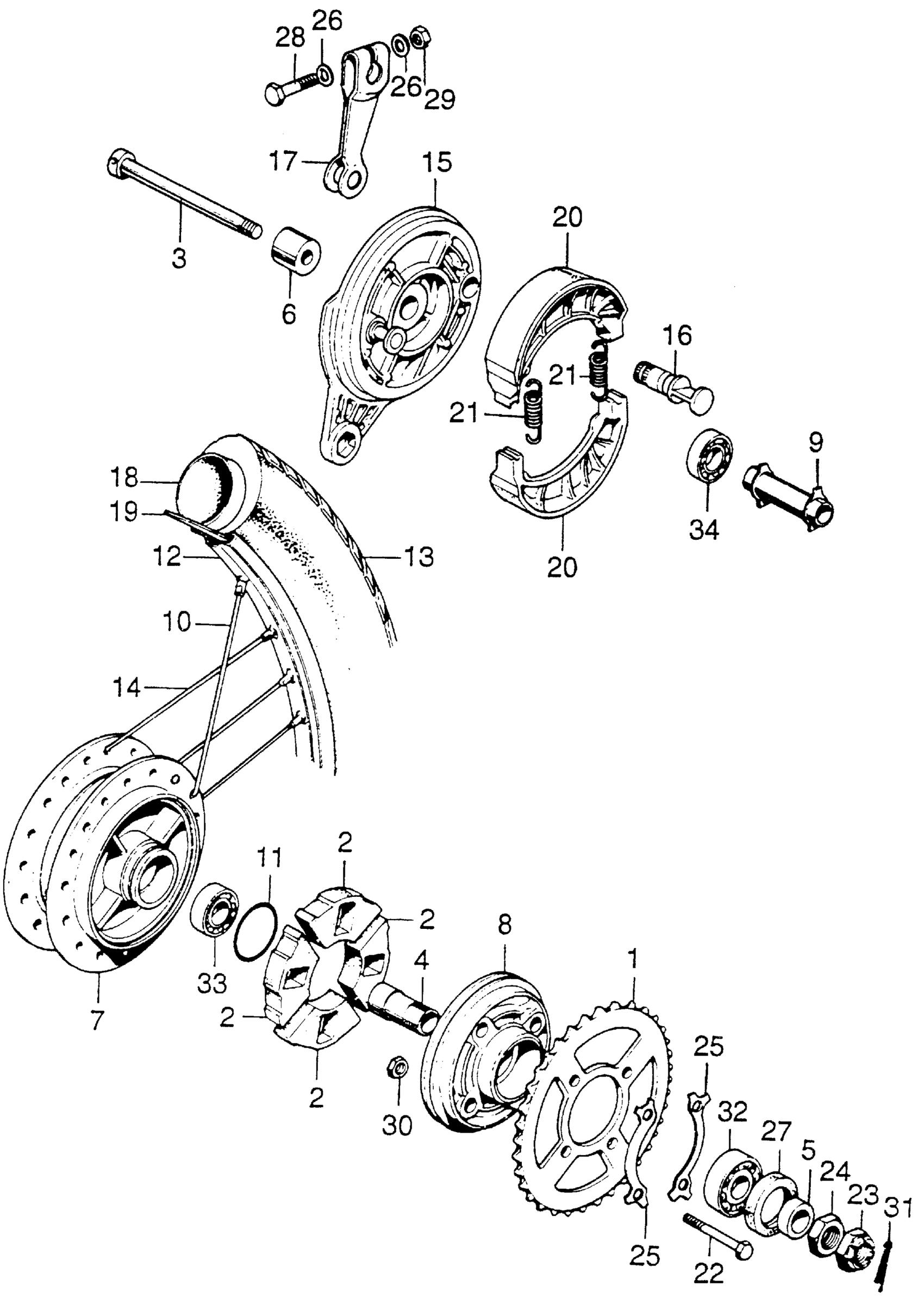

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 REAR WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-GAG-003.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 06450-001-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A0-001-670.

06450-178-932

$24.89

1

SPROCKET (39T) This part replaces 41201-040-010.

41201-GT0-750

$38.46

2

DAMPER, RR. WHEEL This part replaces 41241-001-040.

41241-001-050

$7.31

2

DAMPER, RR. WHEEL

41241-001-050

$7.31

3

AXLE, RR. WHEEL | Use up to Frame SN 033051M This part replaces 42301-041-020.

42301-121-760

Unavailable

3

AXLE, RR. WHEEL | Use up to Frame SN 033051M This part replaces 42301-041-030.

42301-121-760

Unavailable

3

AXLE, RR. WHEEL | Use from Frame SN 033052M This part replaces 42301-041-030.

42301-121-760

Unavailable

3

AXLE, RR. WHEEL | Use up to Frame SN 033051M

42301-121-760

Unavailable

3

AXLE, RR. WHEEL | Use from Frame SN 033052M

42301-121-760

Unavailable

4

SLEEVE, RR. WHEEL AXLE

42303-041-000

$16.21

5

COLLAR, RR. WHEEL AXLE SLEEVE

42304-040-000

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE

42313-GBJ-000

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE This part replaces 42313-041-000.

42313-GBJ-000

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE) This part replaces 42601-028-020.

42601-102-670

Unavailable

7

HUB, RR. WHEEL

42601-102-670

Unavailable

8

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-041-000

Unavailable

9

COLLAR, RR. AXLE DISTANCE

42620-001-010

Unavailable

10

SPOKE B, RR.

42638-001-020

$4.66

11

O-RING (40.5X3) (NIPPON DUST KEEPER) This part replaces 42653-001-000.

42653-001-004

$2.39

11

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

12

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

12

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

12

RIM, WHEEL This part replaces 42701-041-010.

42701-001-073

Unavailable

12

RIM, WHEEL This part replaces 42701-041-020.

42701-001-073

Unavailable

13

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE)

42711-041-000

Unavailable

14

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

14

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

15

PANEL, RR. BRAKE This part replaces 43100-028-020.

43100-098-950

Unavailable

15

PANEL, RR. BRAKE

43100-098-950

Unavailable

16

CAM, RR. BRAKE (NOT AVAILABLE)

43141-028-010

Unavailable

17

ARM, RR. BRAKE

43410-041-020

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-001-000.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

18

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

19

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

19

FLAP, TIRE (17) (INOUE)

42713-102-005

$6.54

19

FLAP, TIRE (17) (INOUE) This part replaces 42713-102-006.

42713-102-005

$6.54

19

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

19

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

19

FLAP, TIRE (17) (INOUE) This part replaces 44713-200-000.

42713-102-005

$6.54

20

SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)

45120-001-010

Unavailable

21

SPRING, BRAKE SHOE

45133-028-000

$2.03

22

BOLT, SPROCKET

90128-001-030

Unavailable

23

NUT, AXLE (NOT AVAILABLE) | Use up to Frame SN 033051M

90305-046-000

Unavailable

23

NUT, CASTLE (12MM) | Use from Frame SN 033052M

94011-12000-0S

$1.54

24

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

25

WASHER, TOP BRIDGE TONGUED

90522-001-000

Unavailable

25

WASHER, TONGUED (8MM) (SOURCE: VINTAGE PARTS INC.)

94108-11000

Unavailable

26

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

27

OIL SEAL (27X40X6) (NOT AVAILABLE) This part replaces 90753-028-010.

90753-028-013

Unavailable

27

OIL SEAL (27X40X6) (NOT AVAILABLE)

90753-028-013

Unavailable

27

OIL SEAL (27X40X6) (NOT AVAILABLE) This part replaces 90753-029-010.

90753-028-013

Unavailable

28

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

28

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

28

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

30

NUT, HEX. (8MM)

94030-08000

$1.49

30

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 033052M This part replaces 94201-30250.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 033052M This part replaces 94201-30300.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 033052M This part replaces 94201-30400.

94201-30450

$1.49

31

PIN, COTTER (3.0X45) | Use from Frame SN 033052M

94201-30450

$1.49

32

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

32

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

33

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

33

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

33

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

34

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
