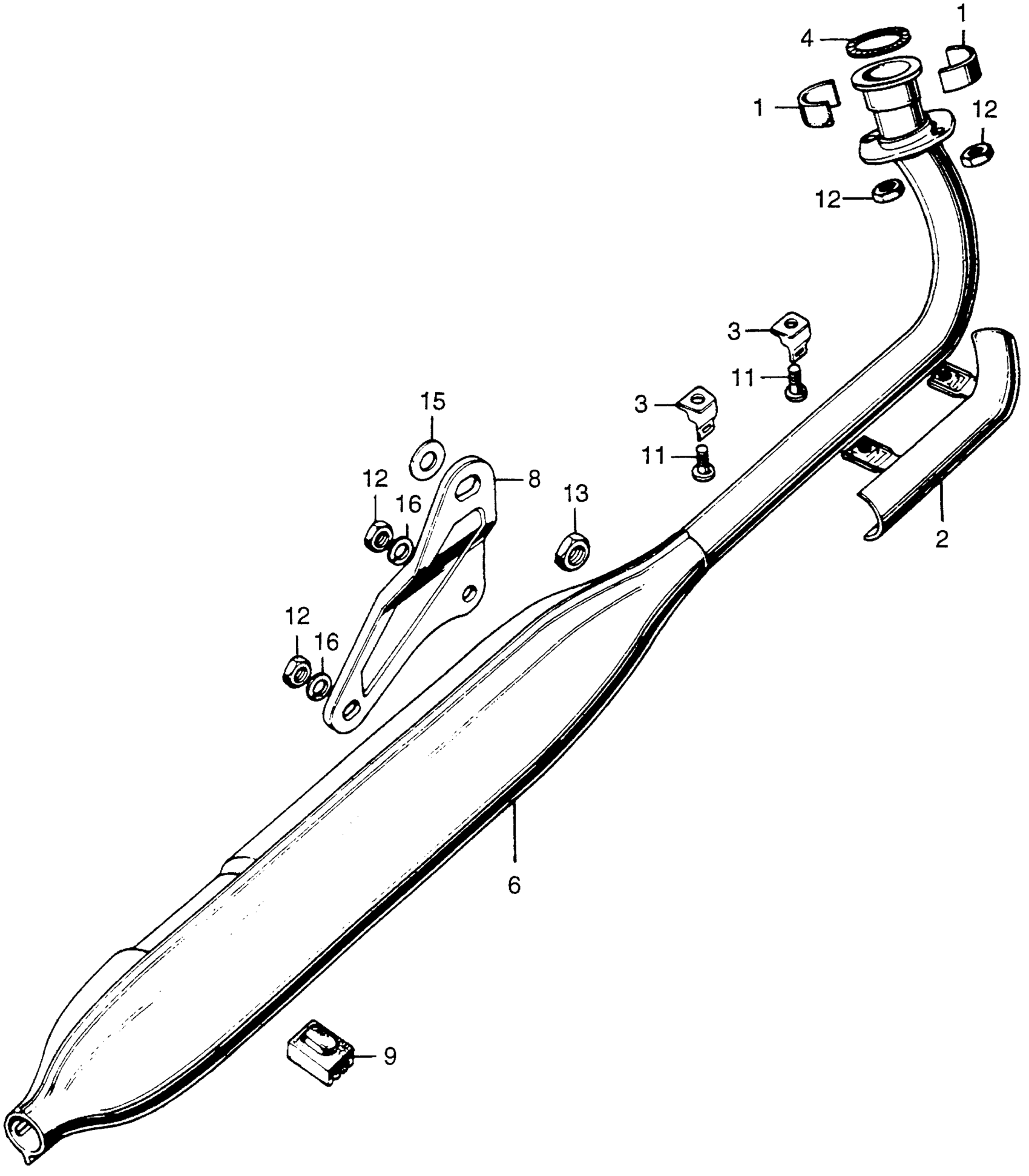

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 MUFFLER Diagram

#

Description
Price

1

COLLAR, EX. PIPE JOINT

18233-041-000

Unavailable

2

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18240-040-010

Unavailable

3

BAND B, EX. COVER MOUNT

18272-220-000

Unavailable

4

GASKET, EX. PIPE

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

4

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

6

MUFFLER, EX. *NH1* This part replaces 18300-087-010.

18300-092-415ZA

Unavailable

6

MUFFLER, EX. *NH1* This part replaces 18300-087-017.

18300-092-415ZA

Unavailable

6

MUFFLER, EX. *NH1* This part replaces 18300-087-760.

18300-092-415ZA

Unavailable

9

RUBBER A, STAND STOPPER This part replaces 50524-001-000.

95011-61000

$1.49

9

RUBBER A, STAND STOPPER

95011-61000

$1.49

11

SCREW, PAN (5X12)

93500-05012-0A

$1.49

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

13

NUT, HEX. (10MM)

94030-10000

$1.49

13

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

15

WASHER, PLAIN (10MM)

94101-10000

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49
