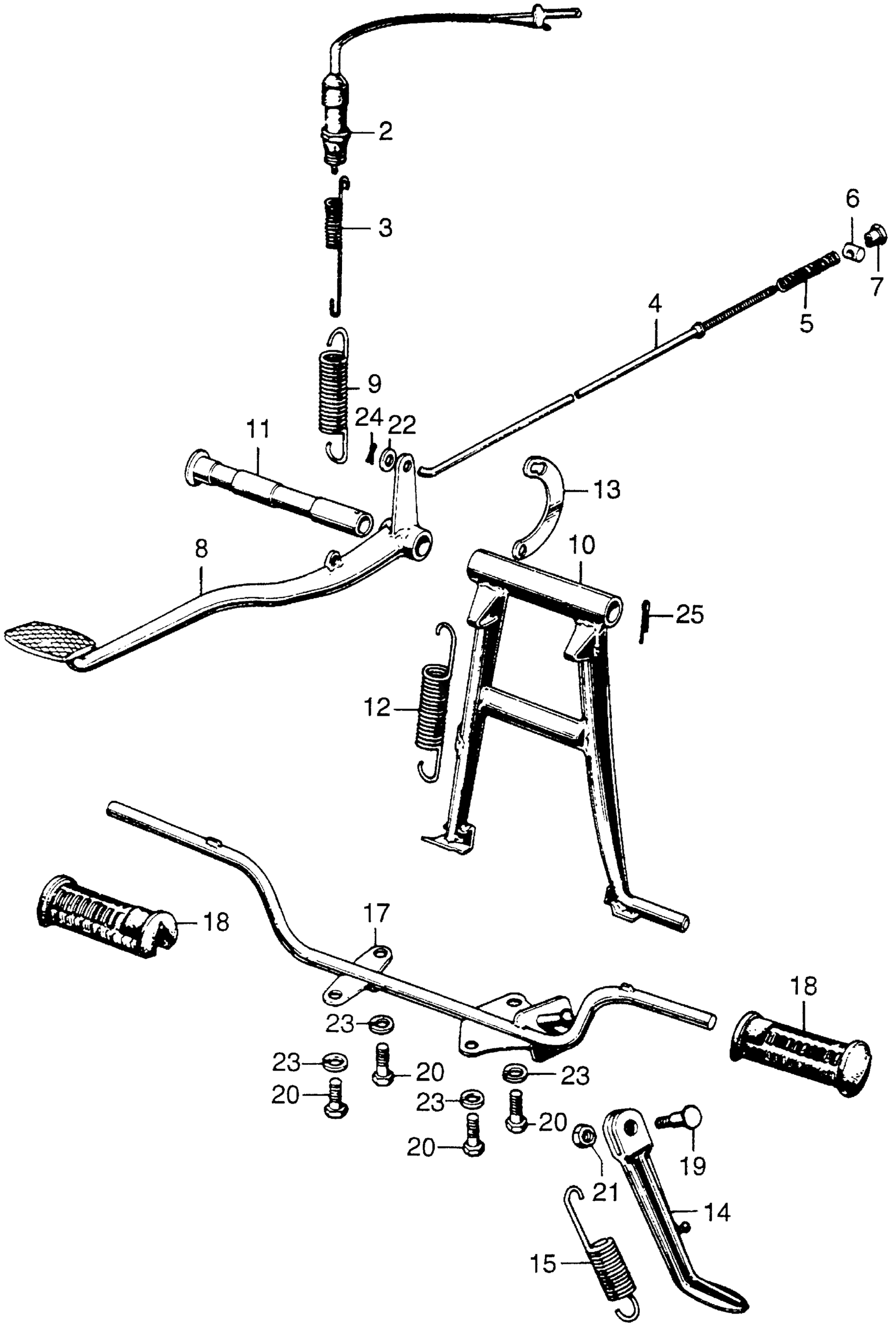

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 MAIN STAND + SIDE STAND Diagram

#

Description
Price

2

SWITCH ASSY., RR. STOP This part replaces 35350-086-721.

35350-GB2-505

Unavailable

2

SWITCH ASSY., RR. STOP This part replaces 35350-087-790.

35350-GB2-505

Unavailable

2

SWITCH ASSY., RR. STOP This part replaces 35350-087-791.

35350-GB2-505

Unavailable

3

SPRING, STOP SWITCH

35357-041-000

Unavailable

4

ROD, RR. BRAKE This part replaces 43450-041-000.

43451-397-000

$7.34

4

ROD, RR. BRAKE This part replaces 43451-041-000.

43451-397-000

$7.34

4

ROD, RR. BRAKE

43451-397-000

$7.34

5

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

5

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

5

SPRING A, BRAKE ROD

95014-73100

$1.49

5

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

6

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

6

JOINT A, BRAKE ARM

95015-31001

$1.53

7

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

7

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

8

PEDAL, BRAKE | Use up to Frame SN 043961M This part replaces 46500-041-670.

46500-086-720

Unavailable

8

PEDAL, BRAKE | Use up to Frame SN 043961M This part replaces 46500-086-000.

46500-086-720

Unavailable

8

PEDAL, BRAKE | Use from Frame SN 043962M This part replaces 46500-086-000.

46500-086-720

Unavailable

8

PEDAL, BRAKE | Use up to Frame SN 043961M

46500-086-720

Unavailable

8

PEDAL, BRAKE | Use from Frame SN 043962M

46500-086-720

Unavailable

9

SPRING, BRAKE PEDAL This part replaces 46514-041-000.

46514-086-720

$6.87

9

SPRING, BRAKE PEDAL

46514-086-720

$6.87

10

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50500-041-670B.

50500-041-731B

Unavailable

10

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-041-731B

Unavailable

11

PIPE, RR. BRAKE PIVOT

50512-041-000

Unavailable

12

SPRING D, MAIN STAND This part replaces 50522-041-000.

95014-71402

$2.48

12

SPRING D, MAIN STAND This part replaces 95014-71401.

95014-71402

$2.48

12

SPRING D, MAIN STAND

95014-71402

$2.48

13

HOOK, MAIN STAND SPRING

50523-041-000

Unavailable

14

BAR, SIDE STAND This part replaces 50530-046-750B.

50530-086-000

Unavailable

14

BAR, SIDE STAND

50530-086-000

Unavailable

14

BAR, SIDE STAND This part replaces 50530-086-000B.

50530-086-000

Unavailable

15

SPRING A, SIDE STAND This part replaces 50542-046-750.

95014-72102

$2.84

15

SPRING A, SIDE STAND This part replaces 95014-72100.

95014-72102

$2.84

15

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

15

SPRING A, SIDE STAND

95014-72102

$2.84

17

BAR, STEP *NH1* This part replaces 50610-087-790B.

50610-087-790ZA

Unavailable

18

RUBBER, STEP This part replaces 50661-051-000.

95011-21000

$8.33

18

RUBBER, STEP

95011-21000

$8.33

19

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

20

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

20

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

21

NUT, HEX. (10MM)

94002-10000-0S

$4.06

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, SPRING (8MM)

94111-08000

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49
