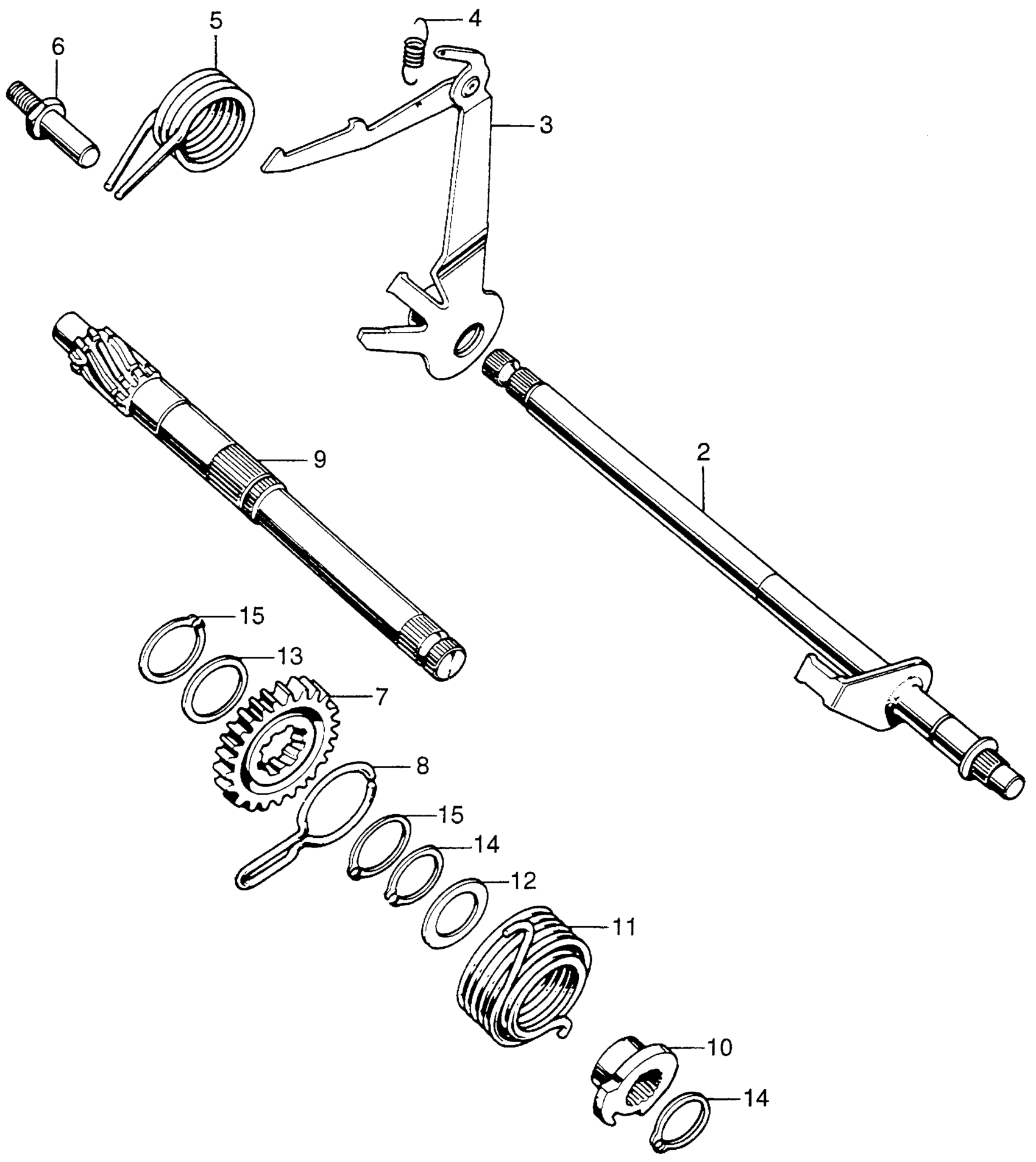

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 KICK STARTER + GEAR CHARGE Diagram

#

Description
Price

2

SPINDLE, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 051461M

24610-039-020

Unavailable

2

SPINDLE, GEARSHIFT | Use from Engine SN 051462M

24610-092-670

$58.93

3

ARM, GEARSHIFT This part replaces 24630-040-040.

24630-086-030

Unavailable

3

ARM, GEARSHIFT This part replaces 24630-086-000.

24630-086-030

Unavailable

3

ARM, GEARSHIFT This part replaces 24630-086-010.

24630-086-030

Unavailable

3

ARM, GEARSHIFT This part replaces 24630-086-020.

24630-086-030

Unavailable

4

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

5

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

6

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

7

PINION, KICK STARTER (22T)

28211-040-035

Unavailable

8

SPRING, KICK STARTER RATCHET

28223-035-035

Unavailable

9

SPINDLE, KICK STARTER This part replaces 28251-035-065.

28251-141-000

Unavailable

9

SPINDLE, KICK STARTER

28251-141-000

Unavailable

10

RETAINER, KICK SPRING This part replaces 28262-035-020.

28262-041-731

$16.77

10

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$16.77

10

RETAINER, KICK SPRING

28262-041-731

$16.77

11

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

11

SPRING, KICK STARTER (NIPPON HATSUJO) This part replaces 28281-035-010.

28281-035-003

$8.38

12

WASHER, THRUST (17MM)

90451-040-000

Unavailable

13

WASHER (20MM) (NOT AVAILABLE)

90482-035-025

Unavailable

14

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

15

SET-RING (20MM)

90605-200-000

$2.92
