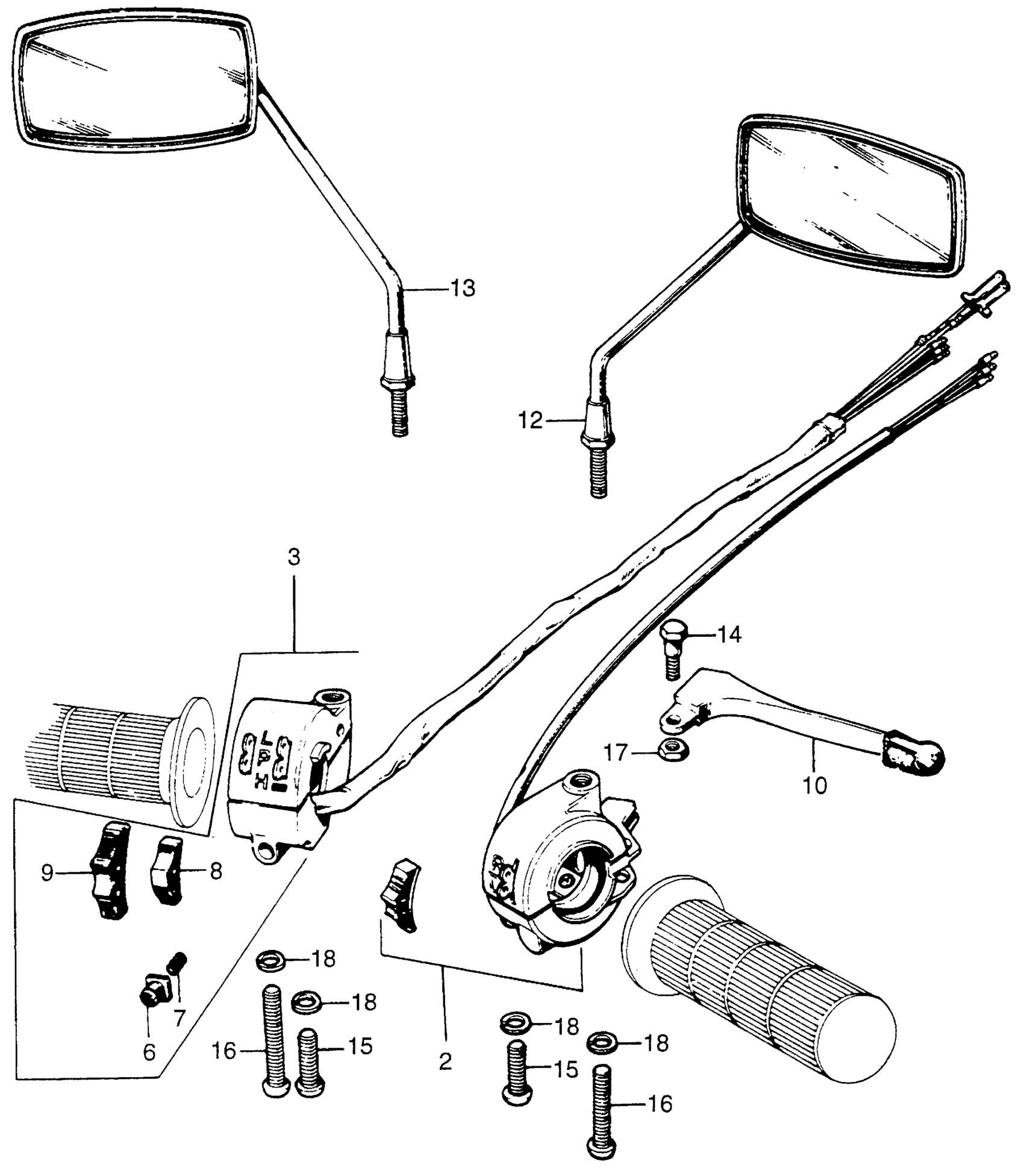

Honda C70MA MOTORCYCLE, JPN, VIN# C70M-017962 HORN + TURN SIGNAL SWITCH + MIRRORS Diagram

#

Description
Price

2

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35251-087-761

Unavailable

3

SWITCH ASSY., LIGHTING HORN (NOT AVAILABLE)

35300-087-761

Unavailable

5

KNOB, DIMMER SWITCH

35316-259-300

Unavailable

6

BUTTON, HORN SWITCH PUSH

35317-001-310

$4.62

7

SPRING, BUTTON

35318-259-000

$5.33

8

KNOB, DIMMER SWITCH

35319-041-300

Unavailable

9

KNOB, DIMMER SWITCH

35319-046-752

Unavailable

10

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-087-760

Unavailable

12

MIRROR, R.

88110-041-000

$41.02

13

MIRROR, L.

88120-041-811

Unavailable

14

SCREW, HANDLE LEVER PIVOT

90114-001-000

Unavailable

15

SCREW, PAN (5X20)

93500-05020-0A

$1.49

16

SCREW, PAN (5X32)

93500-05032-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, SPRING (5MM)

94111-05000

$1.49
